Receiver Dryer: Testing and Inspection
1.

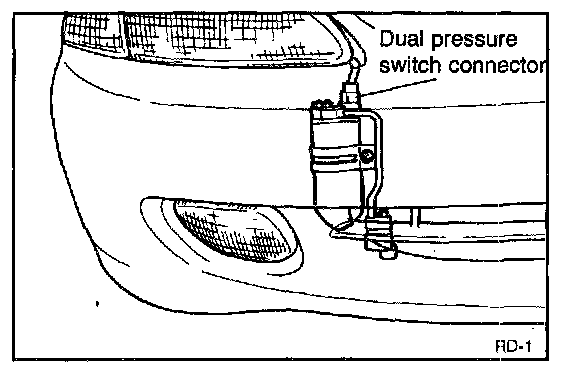

Check the dual pressure switch and the fittings for leakage, using a leak detector.
2.
Check the receiver-drier for clogging.
1.
Run the engine at fast idle with the air conditioning
ON.
2.
Check both the inlet and outlet temperature, If difference in temperatures between the inlet and outlet is large, replace the receiver-drier.
