Map Light: Service and Repair
1.
Disconnect the battery negative terminal.
2.

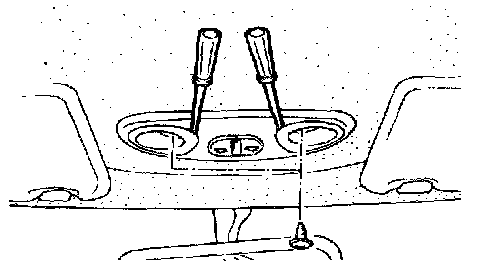

Using a (-) driver, detach the map lamp lens.
3.
Detach the lamp assembly from the head lining after removal of the screws (2EA).
4.
Disconnect the connector from the roof harness.
5.
Installation is the reverse order of removal procedure.
