Fluid - M/T: Service and Repair

REPLACEMENT OF TRANSAXLE GEAR OIL

Use HP Gear Oil SAE 75W/85W (API-GL 4)

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.
2. Replace the gasket with a new one and install the drain plug.

Tightening torque:
Drain plug 30 - 35 Nm (300 - 350 kg.cm, 22 - 25 ft. lbs.)

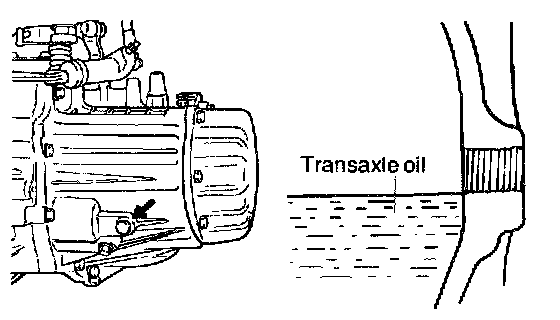

3. Add new oil through the filler plug, filling to the same level as the plug opening.

Transaxle oil total capacity: 2.15 liters (2.27 U.s.qts., 1.89 Imp. qts.)

Tightening torque:
Filler plug 30 - 35 Nm (300 - 350 kg.cm, 22 - 25 ft. lbs.)
