Crankshaft Position Sensor: Testing and Inspection

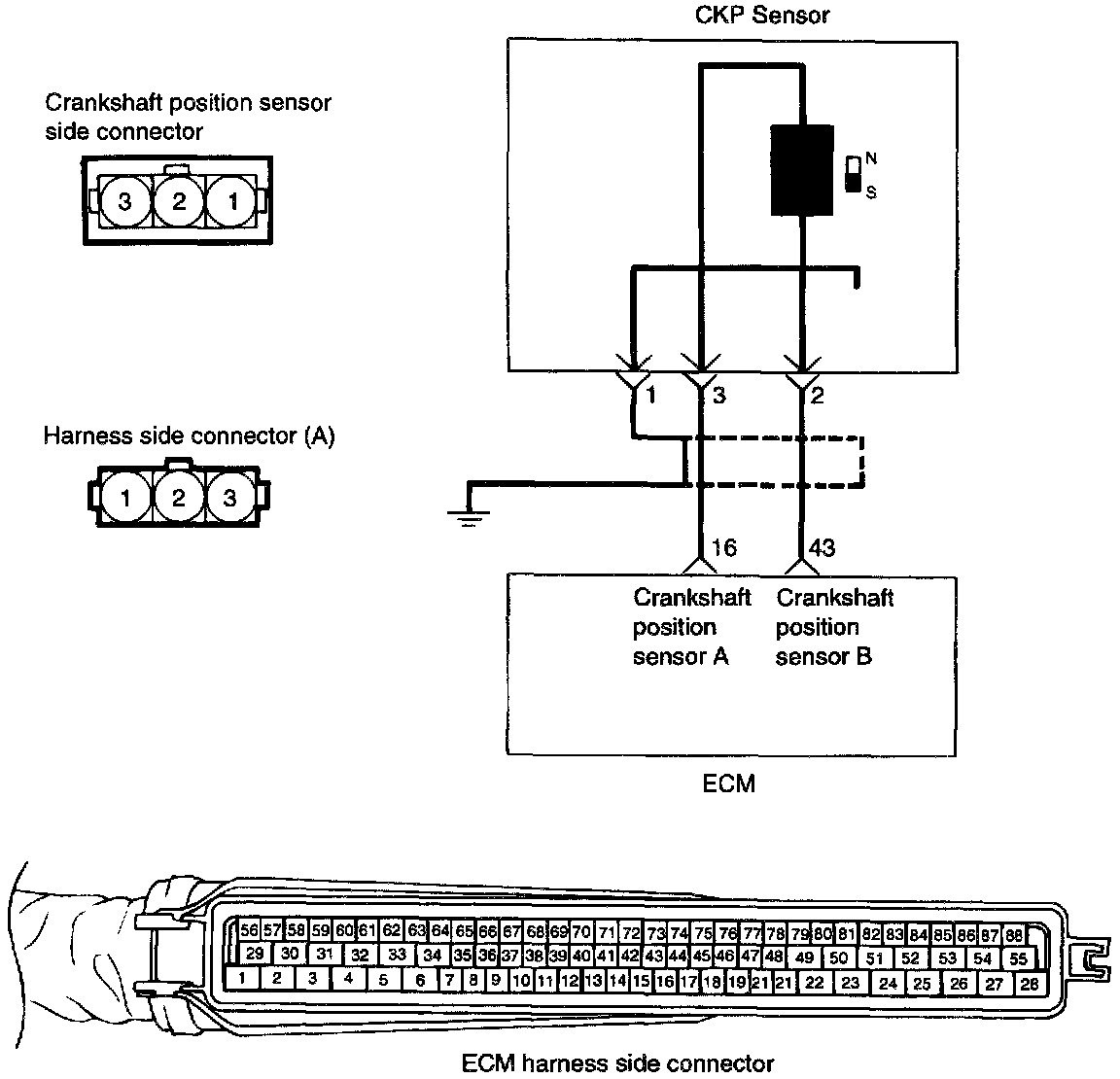

CIRCUIT DIAGRAM

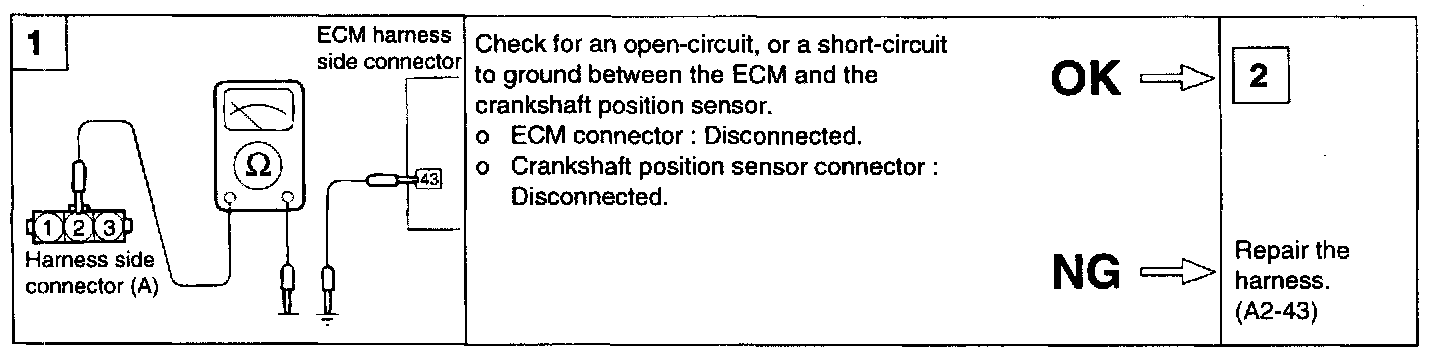

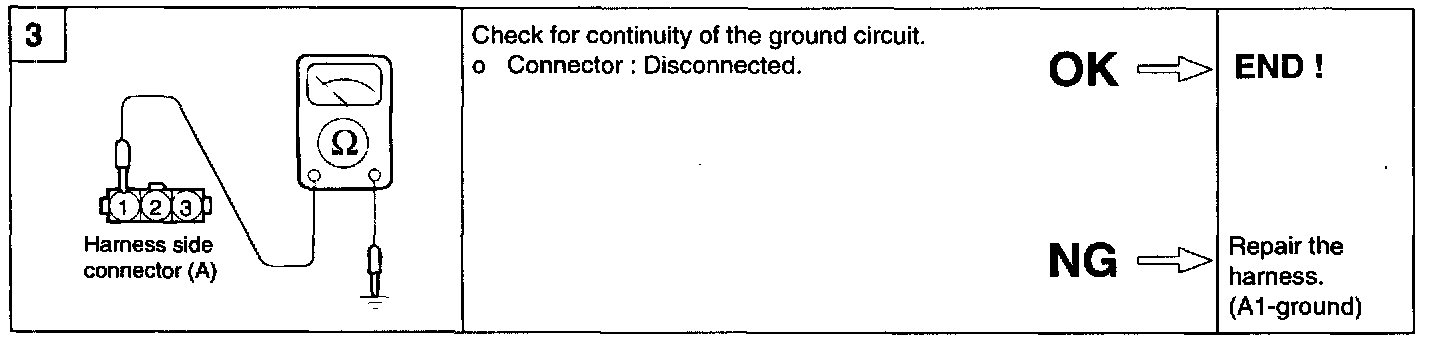

HARNESS INSPECTION PROCEDURE




SENSOR INSPECTION
1. Disconnect the crankshaft position sensor connector
2. Measure the resistance between terminal 2 and 3.

Standard value: 0.486-0.594 K Ohms @ 20°C (68°F)

3. If the resistance deviates far from the standard value, replace the sensor.

Clearance between the crankshaft position sensor and crankshaft position sensor wheel: 0.5-1.5 mm (0.020-0.059 in.)

Crankshaft position sensor torque: 9-11 Nm (6.6-8.1 ft.lbs.)




TROUBLESHOOTING PROCEDURES

HINTS:
1. If unexpected misses are felt during driving or the engine stalls suddenly, shake the crankshaft position sensor harness. If this causes the engine to stall, check for poor contact at the sensor connector.
2. If the tachometer reads 0 rpm when the engine is cranked, check for faulty crankshaft position sensor or ignition system problems.
3. If the tachometer reads 0 rpm when the engine is cranked and it does not start, ignition coil, power TR, or an ECM defect can be considered.
4. Engine can be stalled when the crankshaft position sensor cable is close to the high voltage cable due to the electronic noise caused by the high voltage induced.
