Ignition Switch: Testing and Inspection

1. Disconnect the battery negative terminal.
2. Remove the connector located under the steering column.

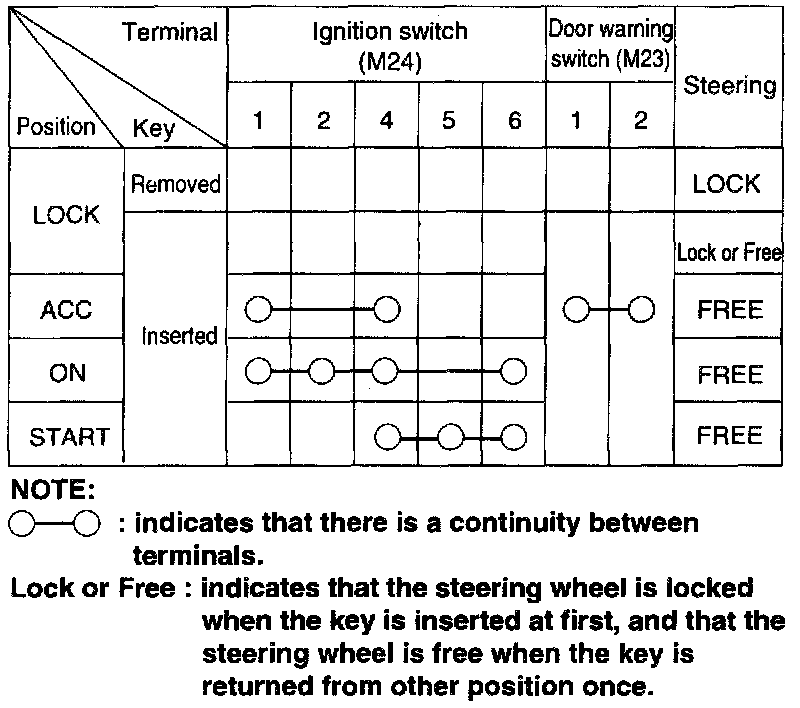

3. Check for continuity between terminals.


HINTS:
If engine won't crank condition determine whether the condition exists with the transaxle range switch in the "PARK" or in the "NEUTRAL" position.
If the "NO-CRANK" condition occurs in one shift lever position but not the other, a more probable cause is the transaxle range switch.
