Power Window Switch: Testing and Inspection
Check for the continuity of the switch using an ohmmeter. If the continuity is not as specified, replace the switch.

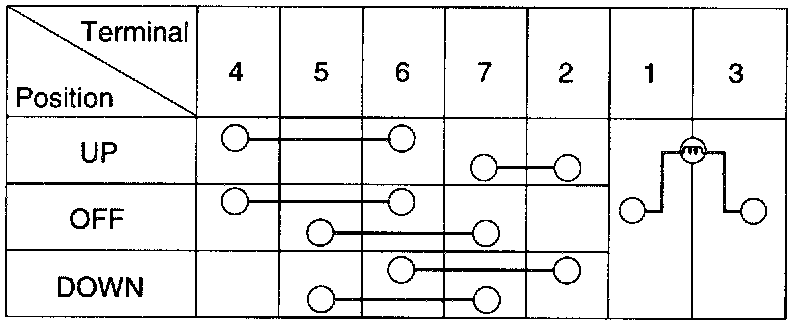

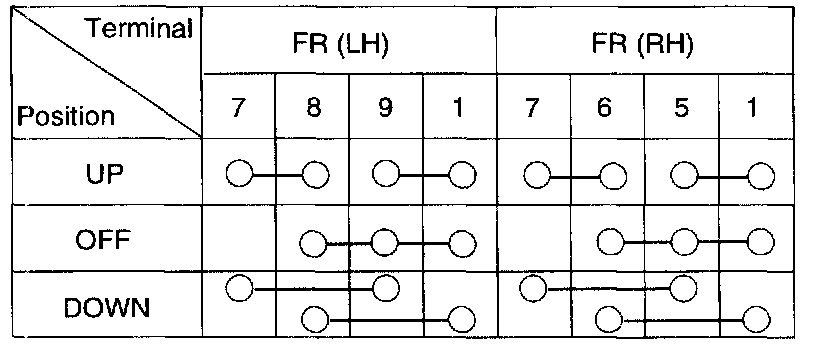

Main switch (for all window control)Main switch (for front window control only)Sub switch
