Rear
1.

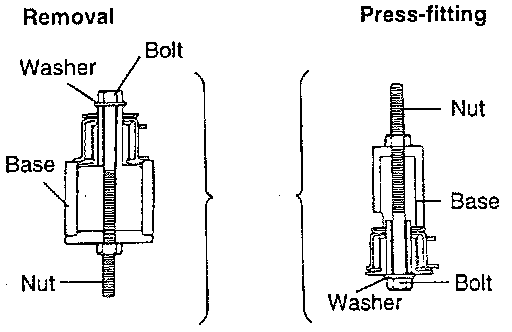

Use the special tool to remove and press fit the bushing.
2.
When press fitting, after applying some soapy water, press in the direction of the arrow into the position.
3.
Press until the inner pipe projection is at the standard value.
Standard value (A): 8.5 - 9.5 mm (0.33 - 0.37 inch.)
