Power Mirror Switch: Testing and Inspection
1.
Remove the power window main switch.
2.
Remove the outside mirror switch, from power window main switch.
3.
Disconnect the connector from the harness.
4.

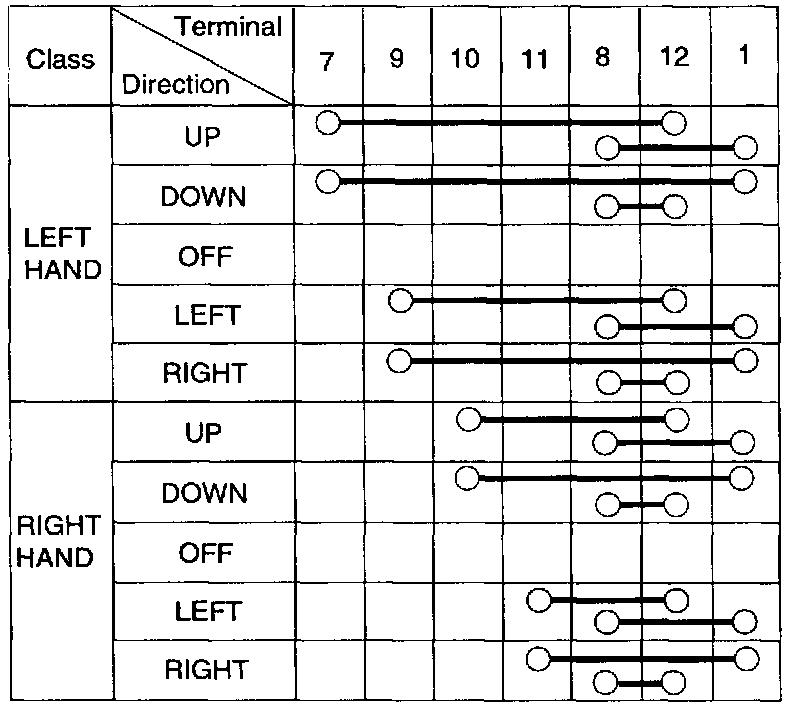

Operate the switch and check for continuity between the terminals. If continuity is not as specified, replace the mirror switch.
