Windows

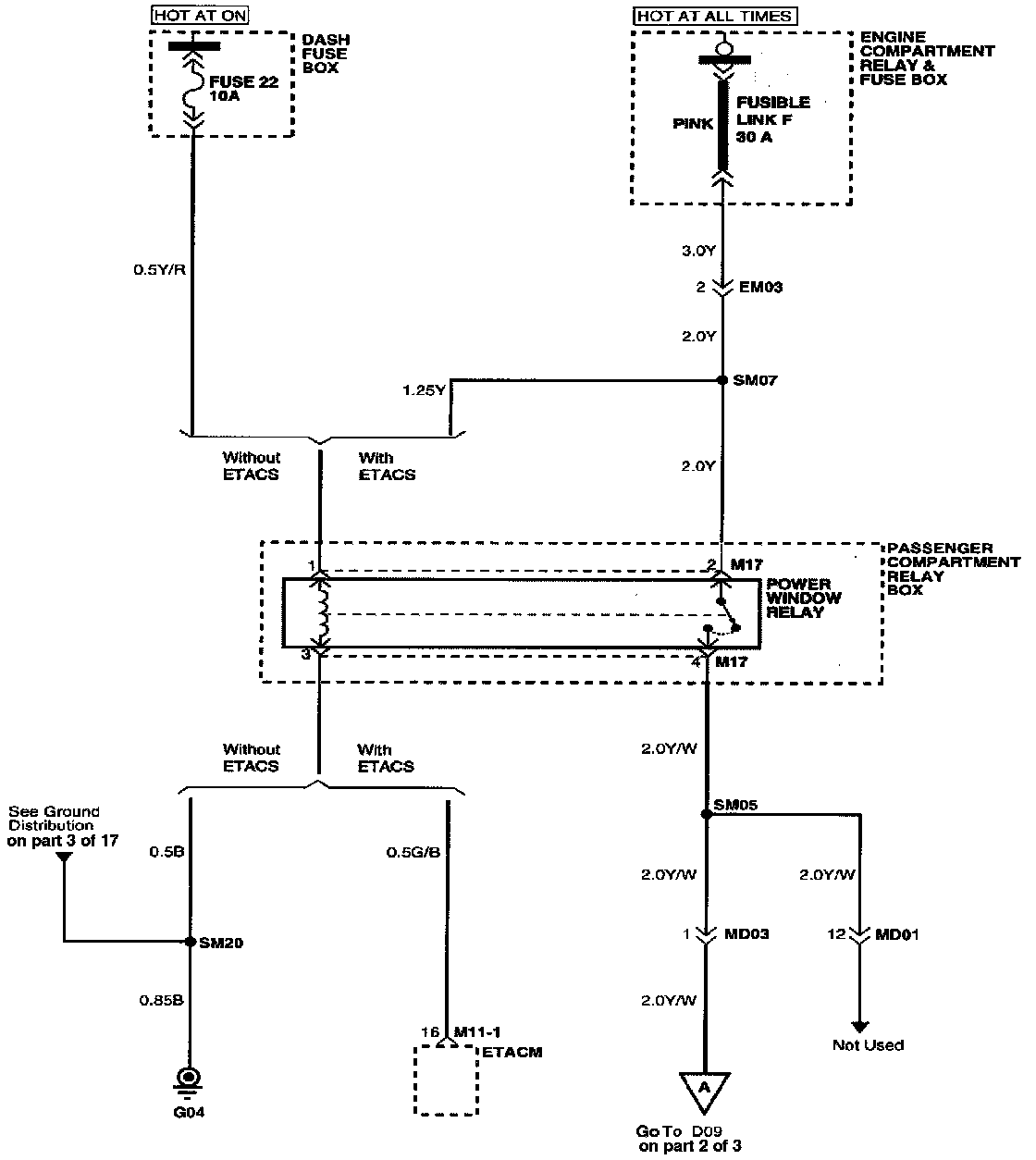

Power Windows (Part 1 Of 3):
(Part 1 Of 3)
Engine Compartment Relay And Fuse Box
Passenger Compartment Relay Box

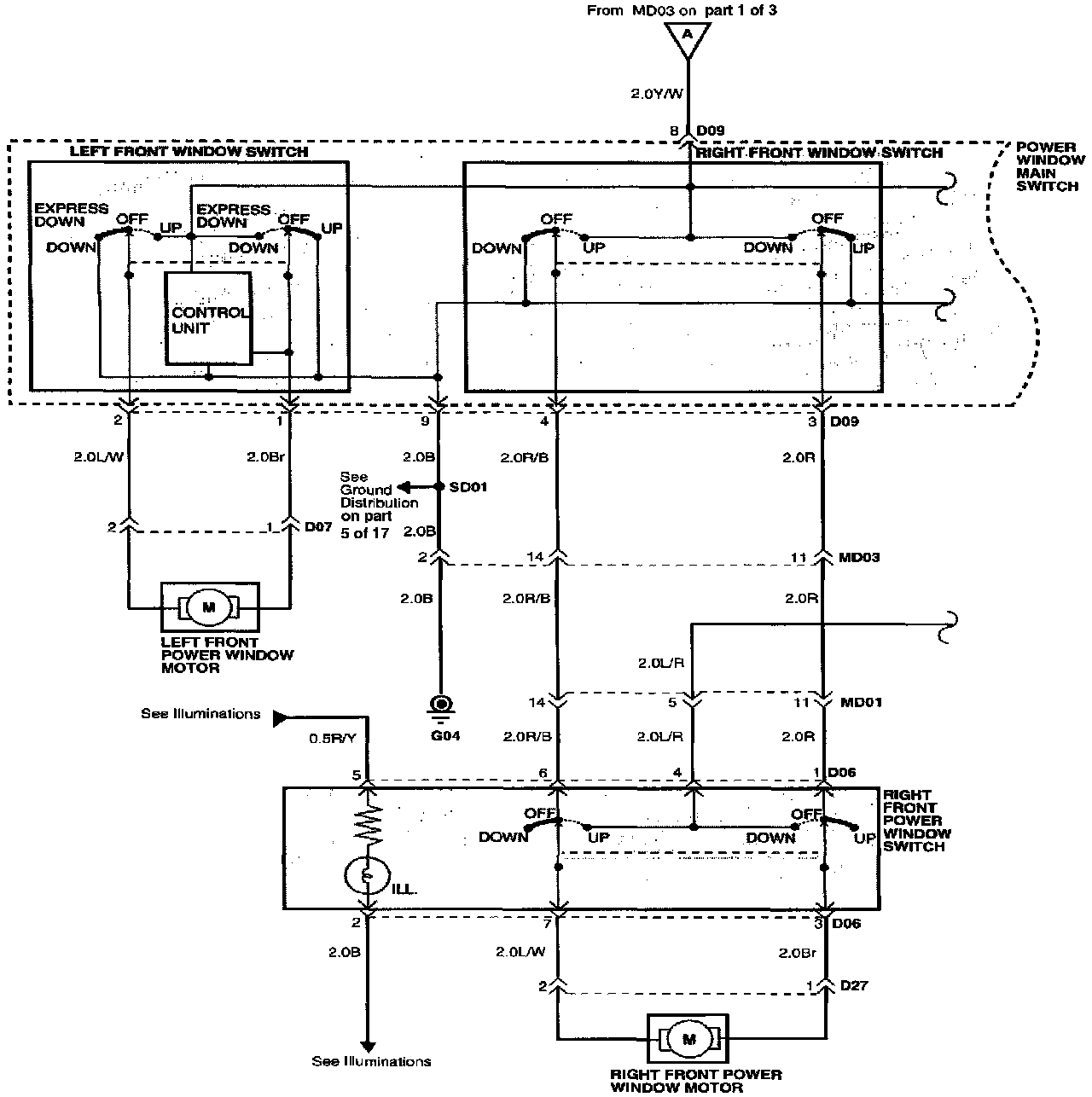

Power Windows (Part 2 Of 3):
(Part 2 Of 3)
Left Front Power Window Motor
Power Window Main Switch
Right Front Power Window Switch
Right Front Power Window Motor

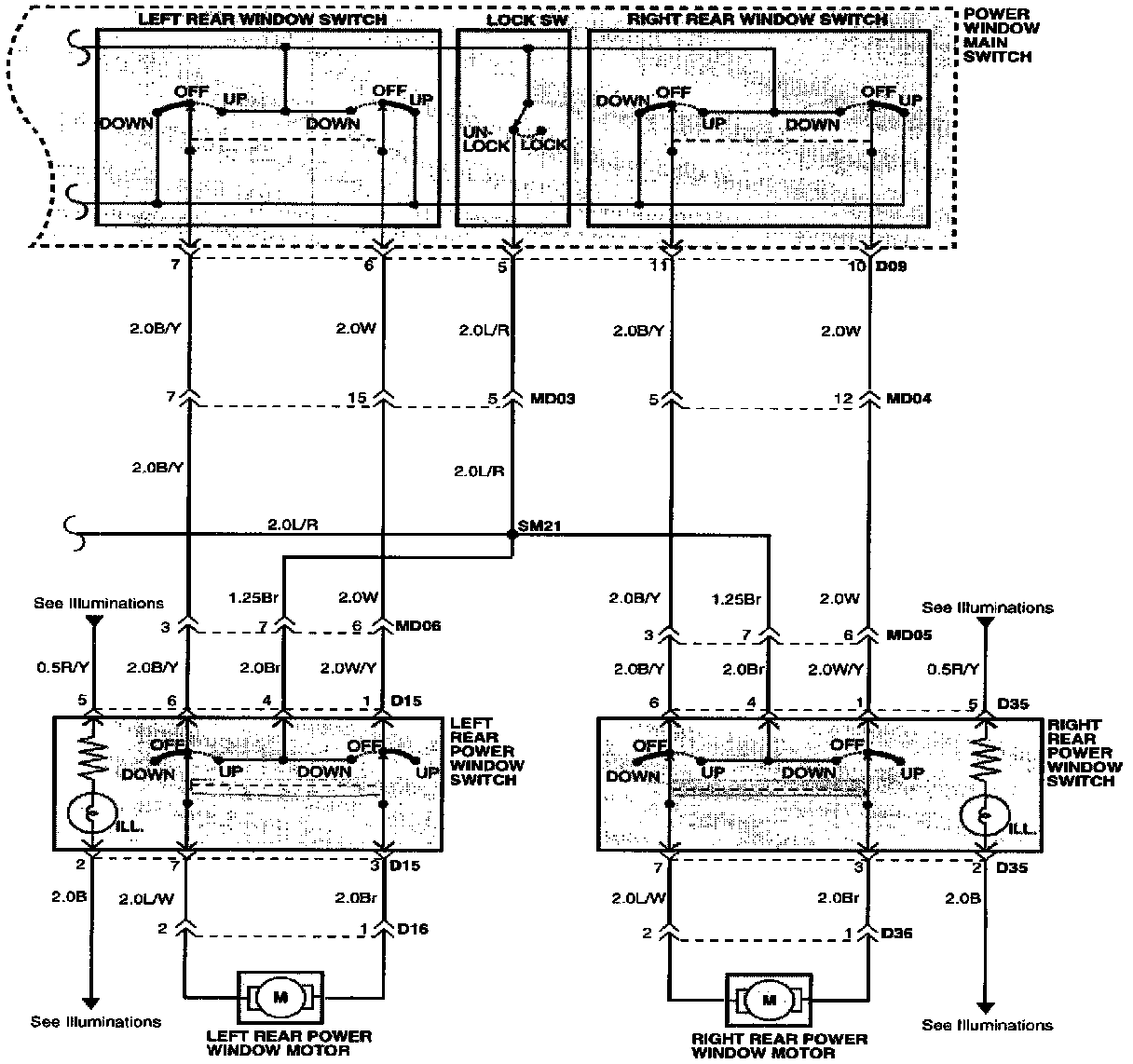

Power Windows (Part 3 Of 3):
(Part 3 Of 3)
Left Rear Power Window Motor
Power Window Main Switch
Right Rear Power Window Motor
Right Rear Power Window Switch
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views
Connector Locations Are Found In The Locations Section Of Power Windows.
Locations
