Intake Manifold: Service and Repair

DISASSEMBLY

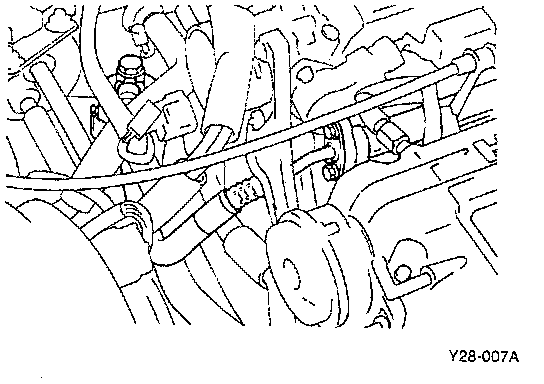

1. Disconnect the high pressure fuel hose connection after relieving pressure in the fuel pipe line to prevent fuel overflow. (Refer to "Fuel System.")





2. Remove the delivery pipe with the fuel injectors and pressure regulator attached.

CAUTION: Do not drop the injectors when removing the delivery pipe.

INSPECTION
1. Check all parts for damage or cracking.
2. Check for obstruction of the vacuum outlet port and the gas passage.

REASSEMBLY





Do not drop the injector when installing the delivery pipe.
