Air Duct: Service and Repair

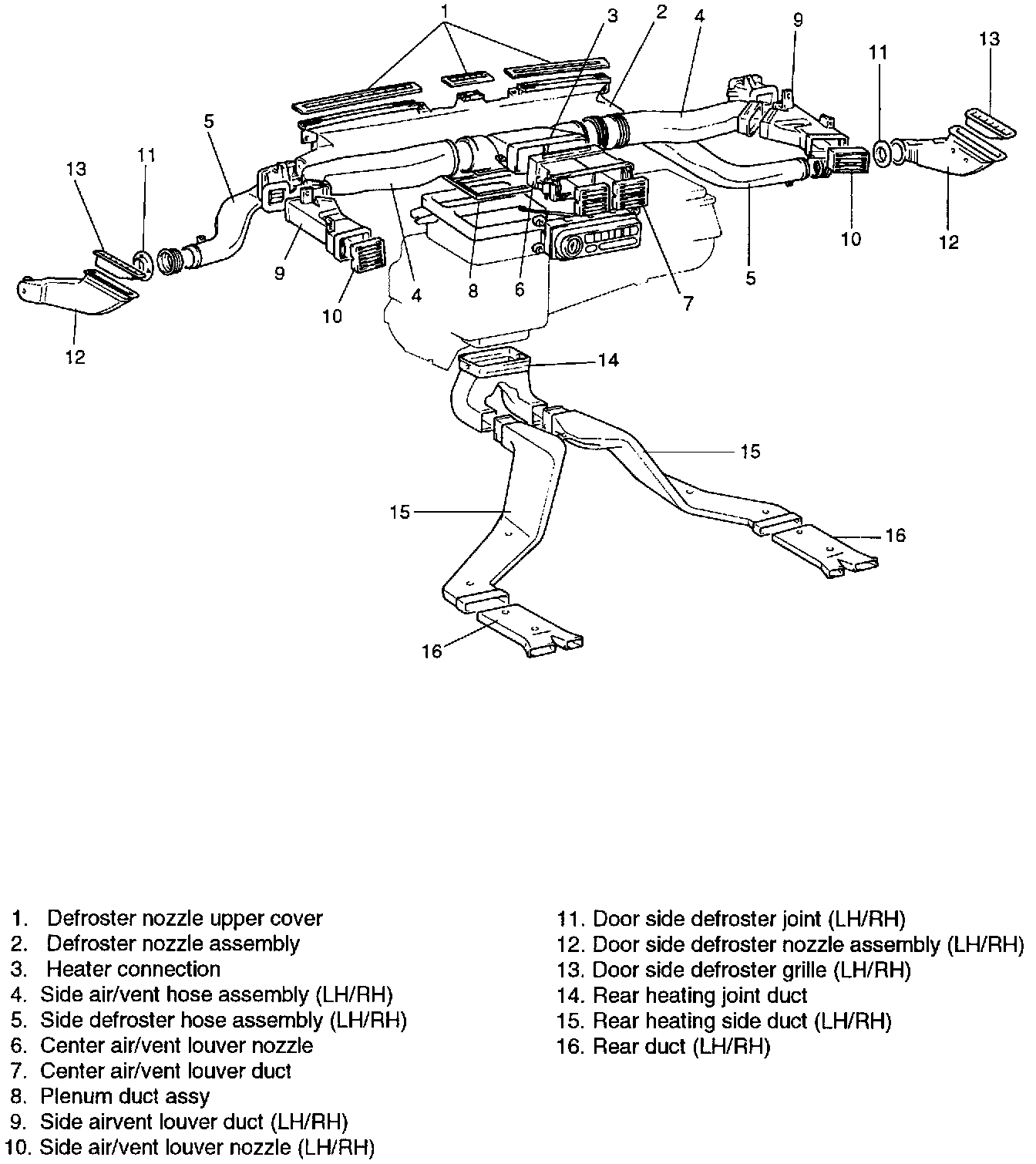

COMPONENTS

1. Remove the front and the floor console assembly.




2. Remove the glove box and crash pad assembly.




3. Remove the side defroster hose assembly.
4. Remove the defroster air guide and the defroster nozzle assembly.




5. Remove the side air vent hose assembly (LH/RH).
6. Remove the heater connection assembly.




7. Remove the plenum duct assembly.




8. Remove the rear heating side duct assembly (LH/RH) and the rear duct (LH/RH) - Deluxe type.
9. Remove the rear heating duct assembly (LH/RH) - Standard type.




10. Remove rear heating joint duct assembly. Installation is the reverse of the removal procedures.
