Blower Motor Resistor: Service and Repair




1. Open the glove box and release the glove box retainers so that the glove box hangs down.
2. Separate the wiring harness connector from the resistor assembly.

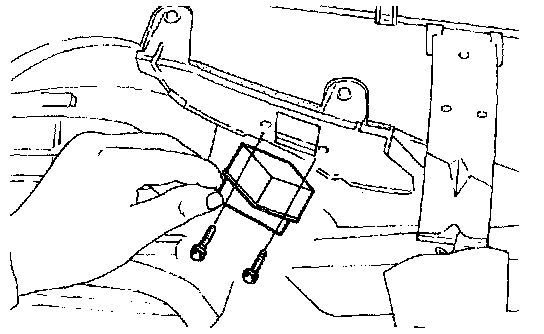

3. Remove the two resistor attaching screws and remove the resistor from the heater case.
4. To install, position the resistor assembly in the heater case opening and install the two attaching screws.

NOTE: Use only the specified resistor assembly for service replacement. Do not apply sealer to the resistor board mounting surface.

5. Attach the wiring harness connector to the resistor.
6. Check the operation of the blower motor.
7. Close the glove box.
