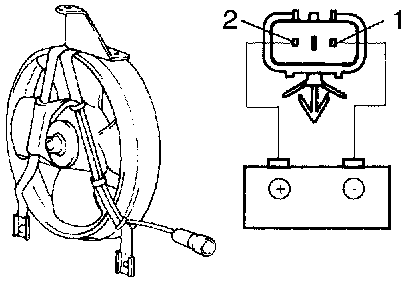

Condenser Fan: Service and Repair
1.
Disconnect the battery ground cable.
2.
Remove LH front combination lamp.
3.
Remove LH head lamp by loosening bolts.
4.
Remove radiator grille.
5.
Disconnect the connector from engine wiring harness.
6.
Remove the condenser tan and motor assembly by loosening bolts.
7.
Installation is the reverse of removal.
