Combination Switch: Testing and Inspection
Check the continuity between the terminals while operating the switch.

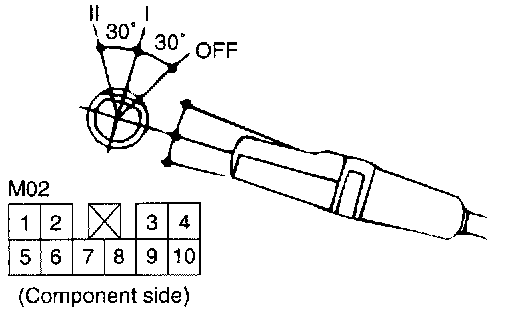

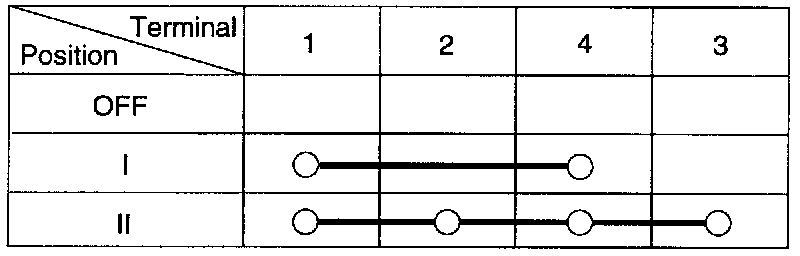

LIGHTING SWITCH (M02)

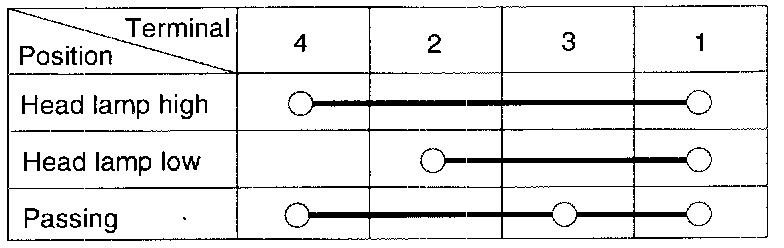

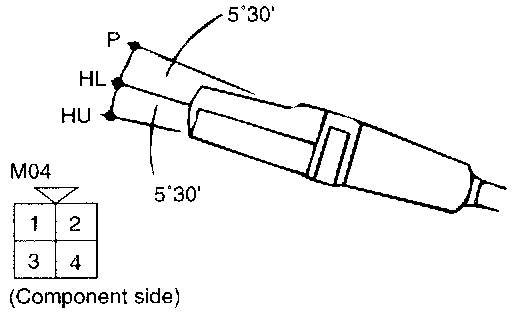

DIMMER AND PASSING SWITCH (M04)

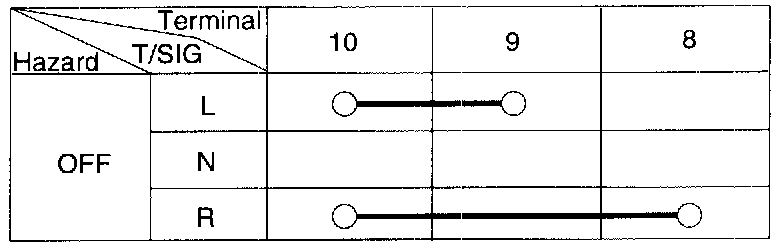

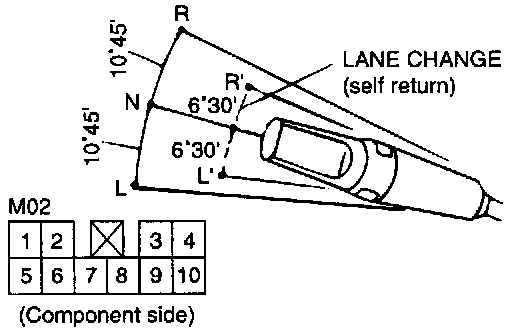

TURN SIGNAL SWITCH

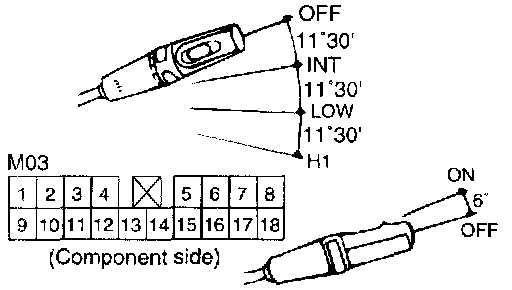

WIPER AND WASHER SWITCH (M03)

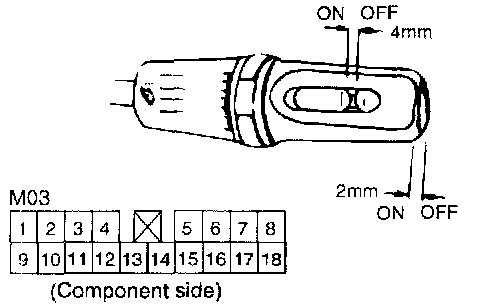

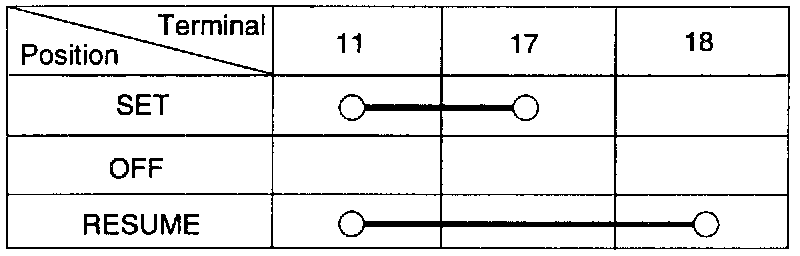

CRUISE CONTROL SWITCH (M03)
CLOCK SPRING
If as result of following checks, even one abnormal point is discovered, replace the clock spring with a new one.

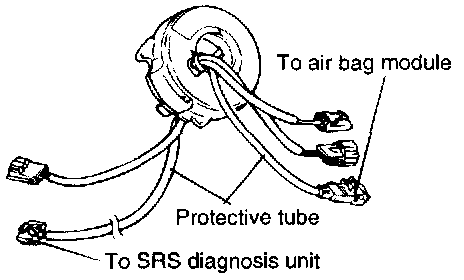

1. Check connectors and protective tube for damage, and terminals for deformities.

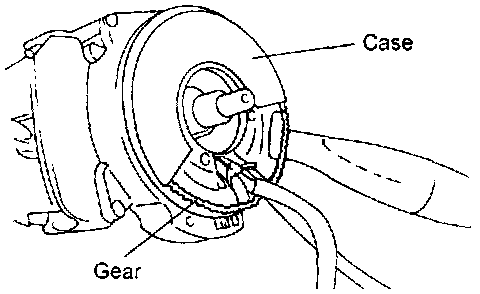

2. Visually check the case and the gears for damage.
