Coolant Line/Hose: Service and Repair

COMPONENTS

INSPECTION
Check the engine coolant pipe and hose for cracks, damage, and restrictions. Replace if necessary.

REASSEMBLY

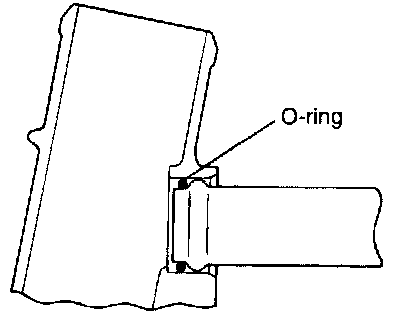

Fit O-ring in the groove provided at engine coolant inlet pipe end. Wet the periphery of the O-ring and inlet engine coolant inlet pipe.

NOTE:
1) Do not apply oils or greases to engine coolant pipe O-ring.
2) Keep the engine coolant pipe connections free of sand, dust, etc...
3) Insert engine coolant pipe until its end bottoms.
