Harness Inspection
HARNESS INSPECTION PROCEDURES IGNITION COIL The ignition power transistor functions to control the
ignition timing by controlling the ignition coil primary current by signals from the ECM.

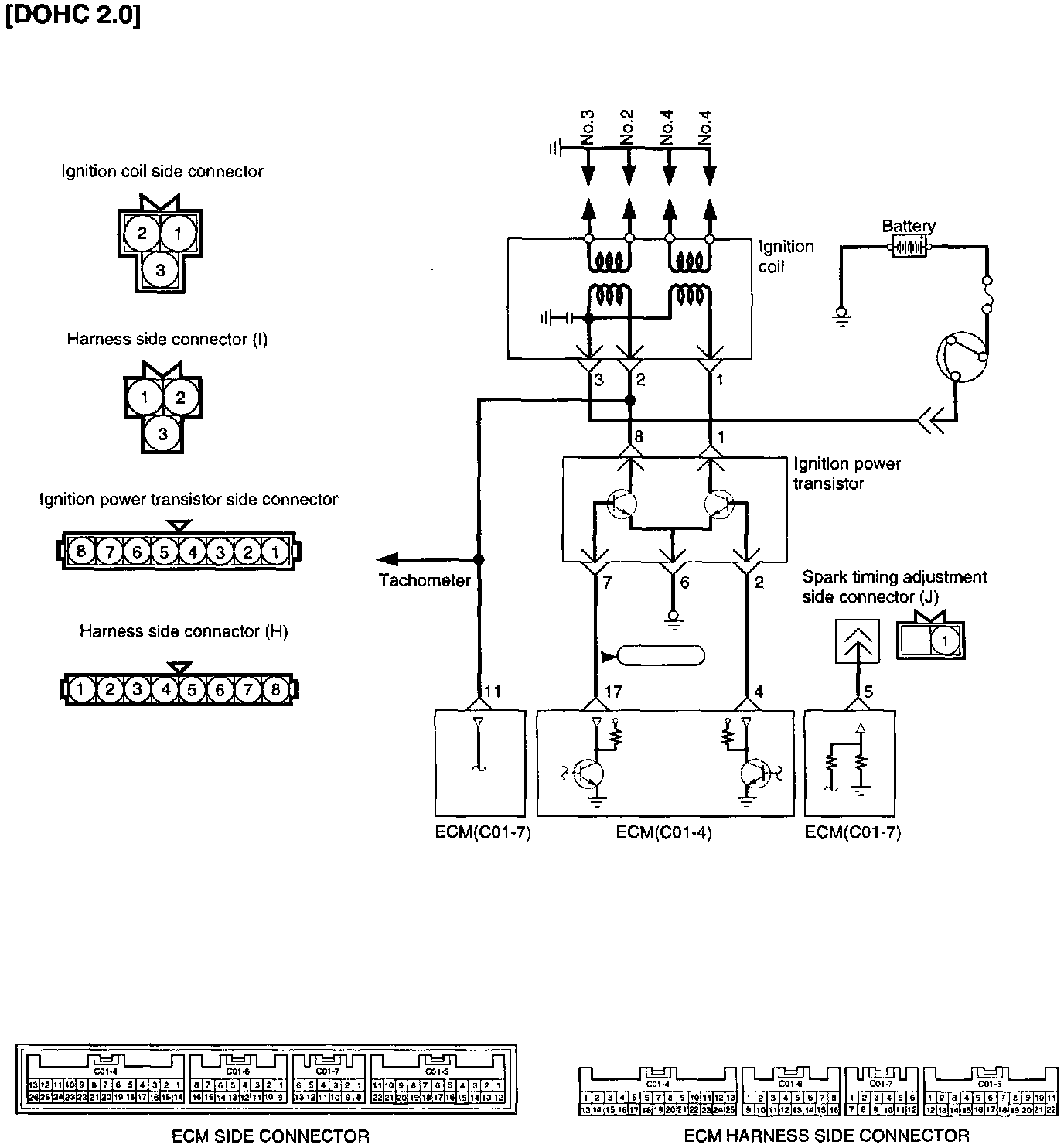

CIRCUIT DIAGRAM
USING GST
Harness Inspection
