Automatic Transaxle Shift Control Components Inspection
INSPECTION1. Check the control cable for function and for damage.
2. Check the bushing for wear or damage.
3. Check the spring for damage or deterioration.

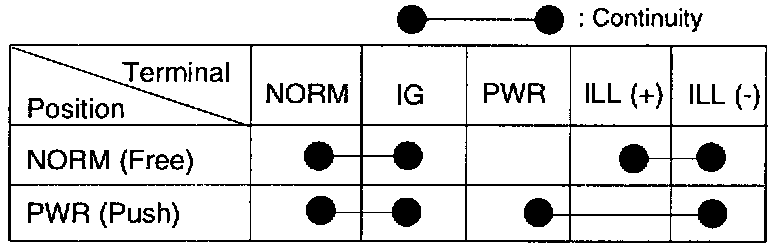

4. Check the overdrive switch for continuity.

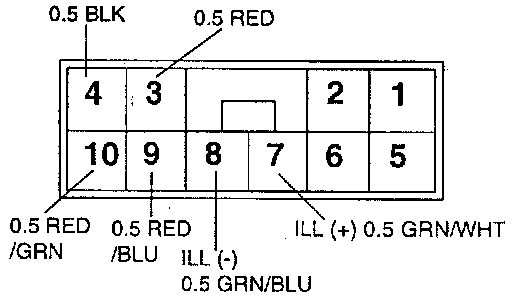

5. Check continuity between indicator light terminal 7 and 8.
- [LIMIT] : Continuity

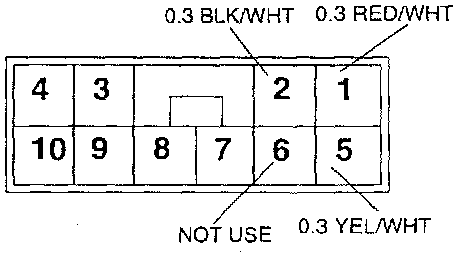

6. Check continuity between parking position switch terminal 3 and 4 in free load.
- [LIMIT] : Continuity
7. Check continuity between parking position switch terminal 3 and 4 while pressing the switch.
- [LIMIT] : No continuity
8. Check the movement of shift control solenoid according to the battery voltage or not.
[LIMIT] : When applied ON
When not applied - OFF
- Check the P/N switch for continuity.
