AUTOMATIC TRANSAXLE SHIFT CONTROL COMPONENTS REMOVAL

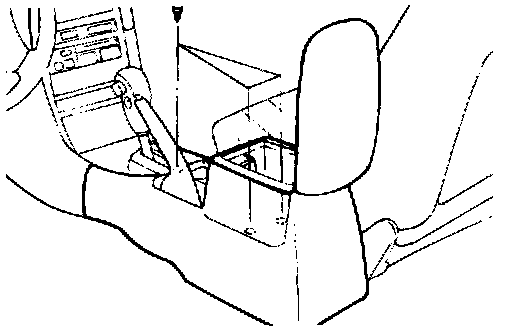

1. Remove the console upper cover plate and than remove the console upper cover.
2. Remove the floor console.

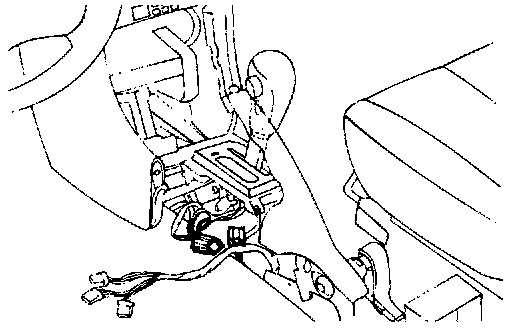

3. Disconnect the A/T shift lever connector.




4. Disconnect the key lock switch connector.

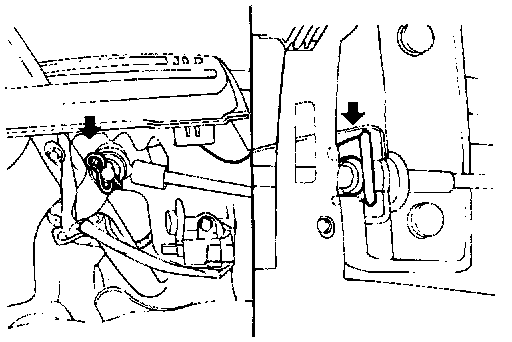

5. Remove the cotter pin, clevis pin and washer.
6. Remove the shift lever mounting bolts.
7. Remove the shift lever assembly.

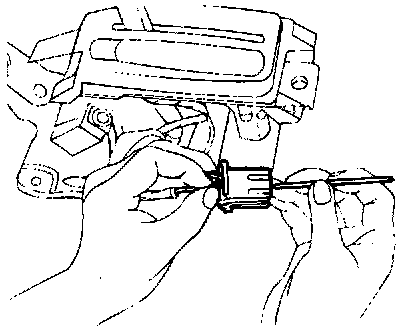

8. Remove the A/T shift lever connector pins from the connector with small edged driver.

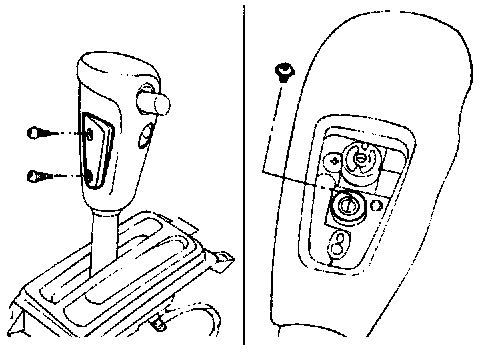

9. Remove the knob cover and knob mounting screw.




10. Remove the selector knob.
11. Remove the indicator.




12. Remove the O/D switch as shown in illustration.

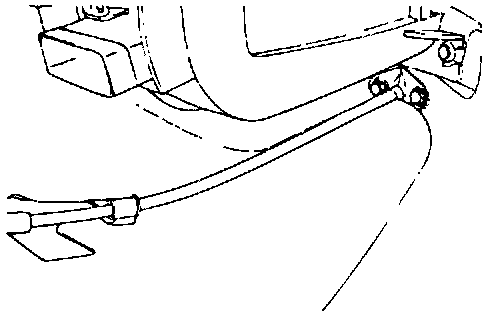

13. Remove the bolt-washer assembly located on dash panel.

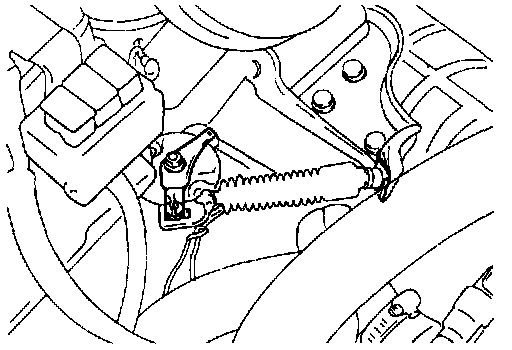

14. Remove the clip, flange nut from the transaxle side.
15. Remove the transaxle control cable assembly.
