A/T Shift Lock System

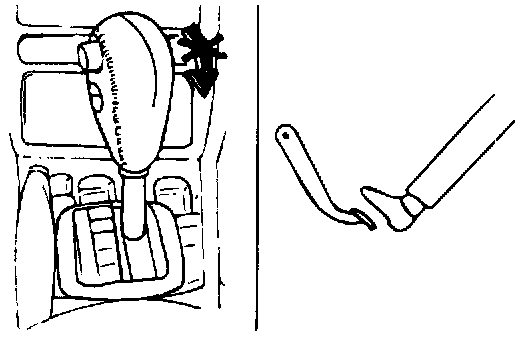

1.
Check that under the following conditions, the shift lever cannot be moved from the "P" position to any other position.
IGNITION KEY POSITION:
"ON" BRAKE PEDAL : NOT DEPRESSED
BUTTON : PRESSED

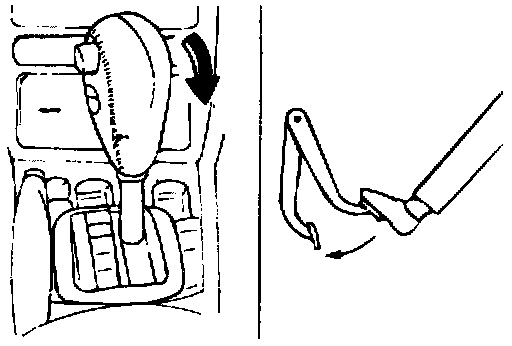

2.
Check that under the following conditions, the shift lever can be moved from the "P" position to other position.
IGNITION KEY POSITION :
"ON" BRAKE PEDAL : DEPRESSED
BUTTON : PRESSED
