Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

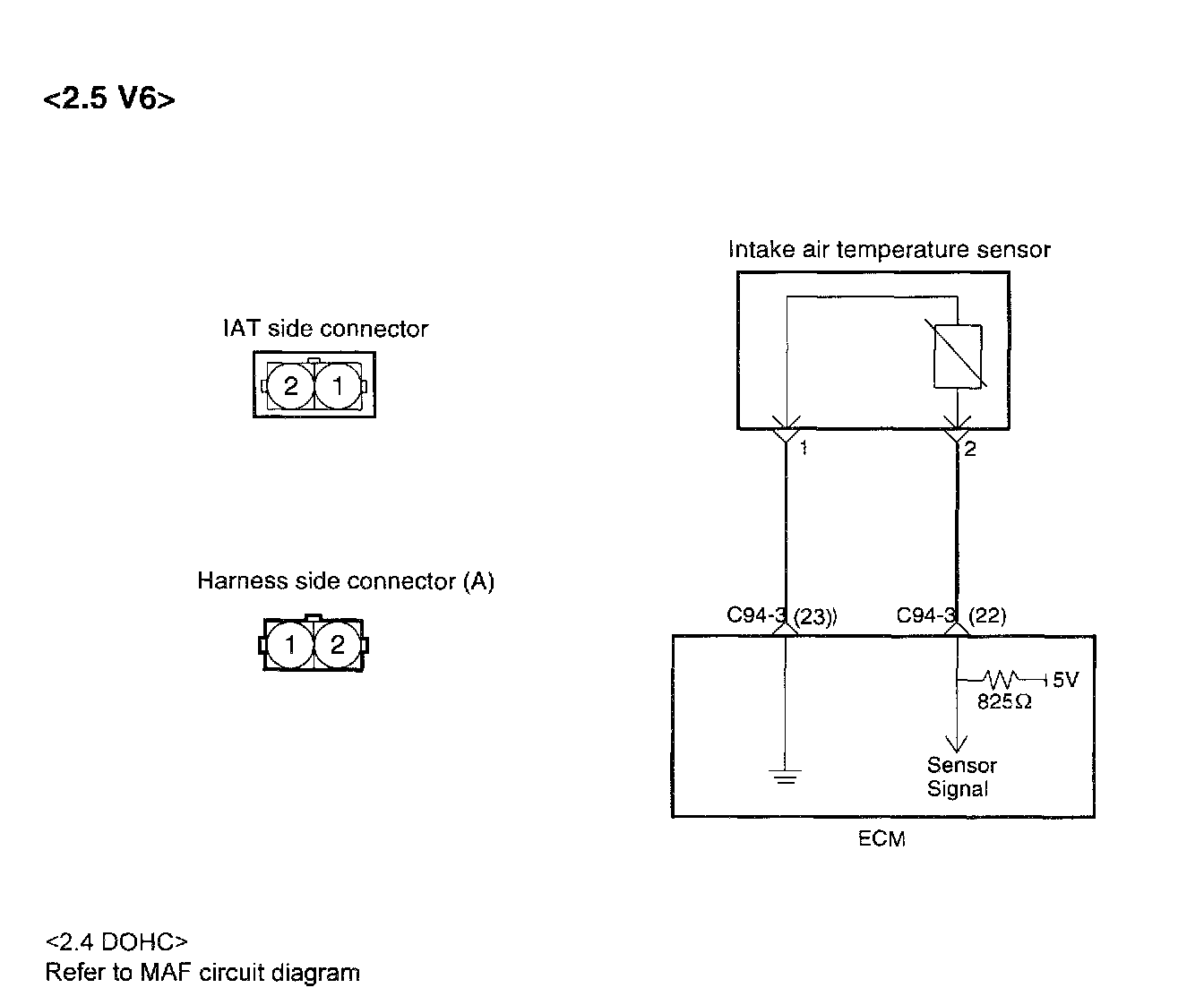

CIRCUIT DIAGRAMHARNESS INSPECTION PROCEDURESENSOR INSPECTION 1.
Use the multimeter, measure the sensor resistance.
2.
Measure the resistance between the IAT sensor terminal 1 and 2.
3.
If the resistance deviates from the standard value, replace the
intake air temperature sensor assembly.
