Component Locations

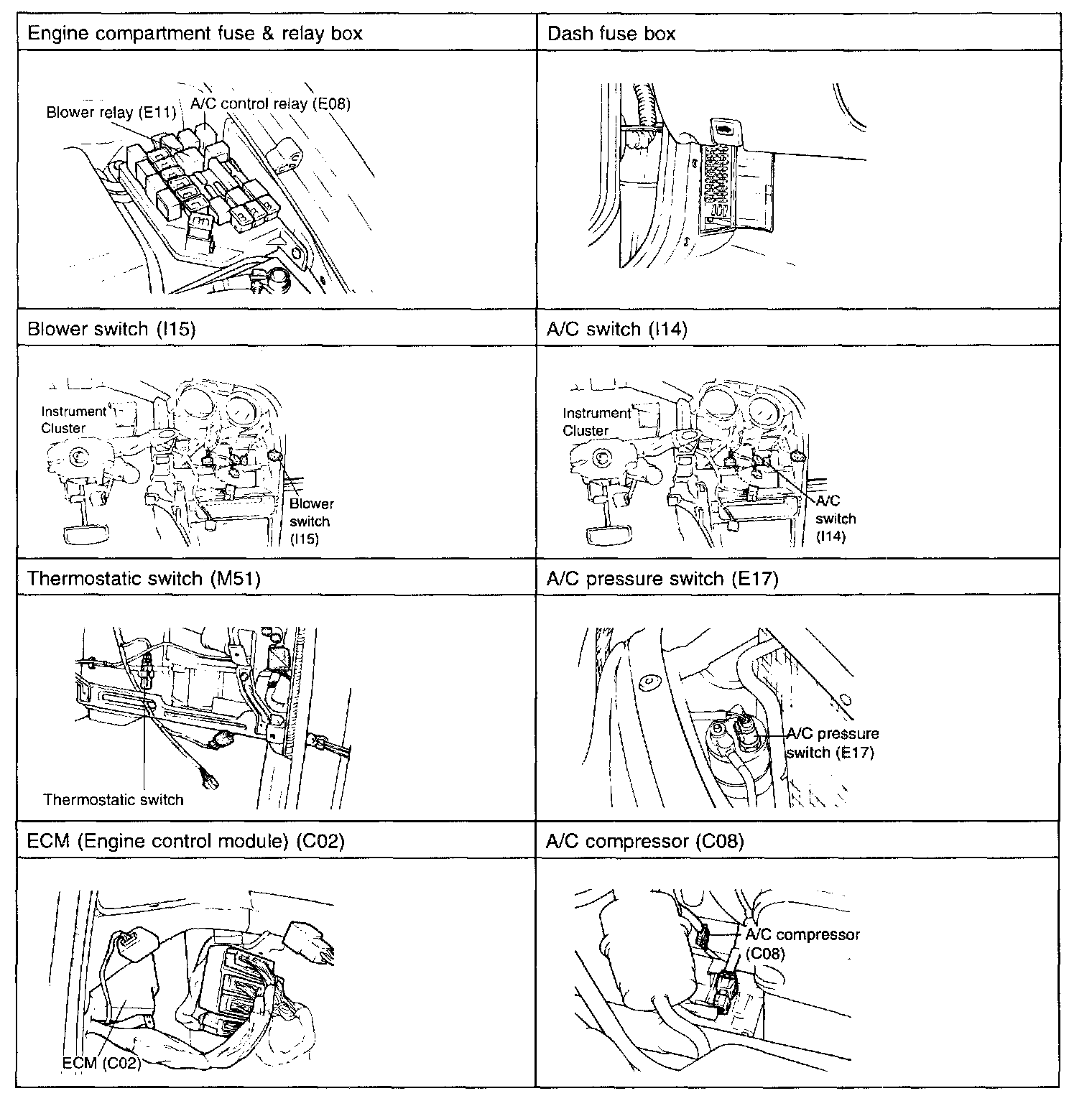

Engine Compartment Component Locations:

Engine Compartment Component Locations:

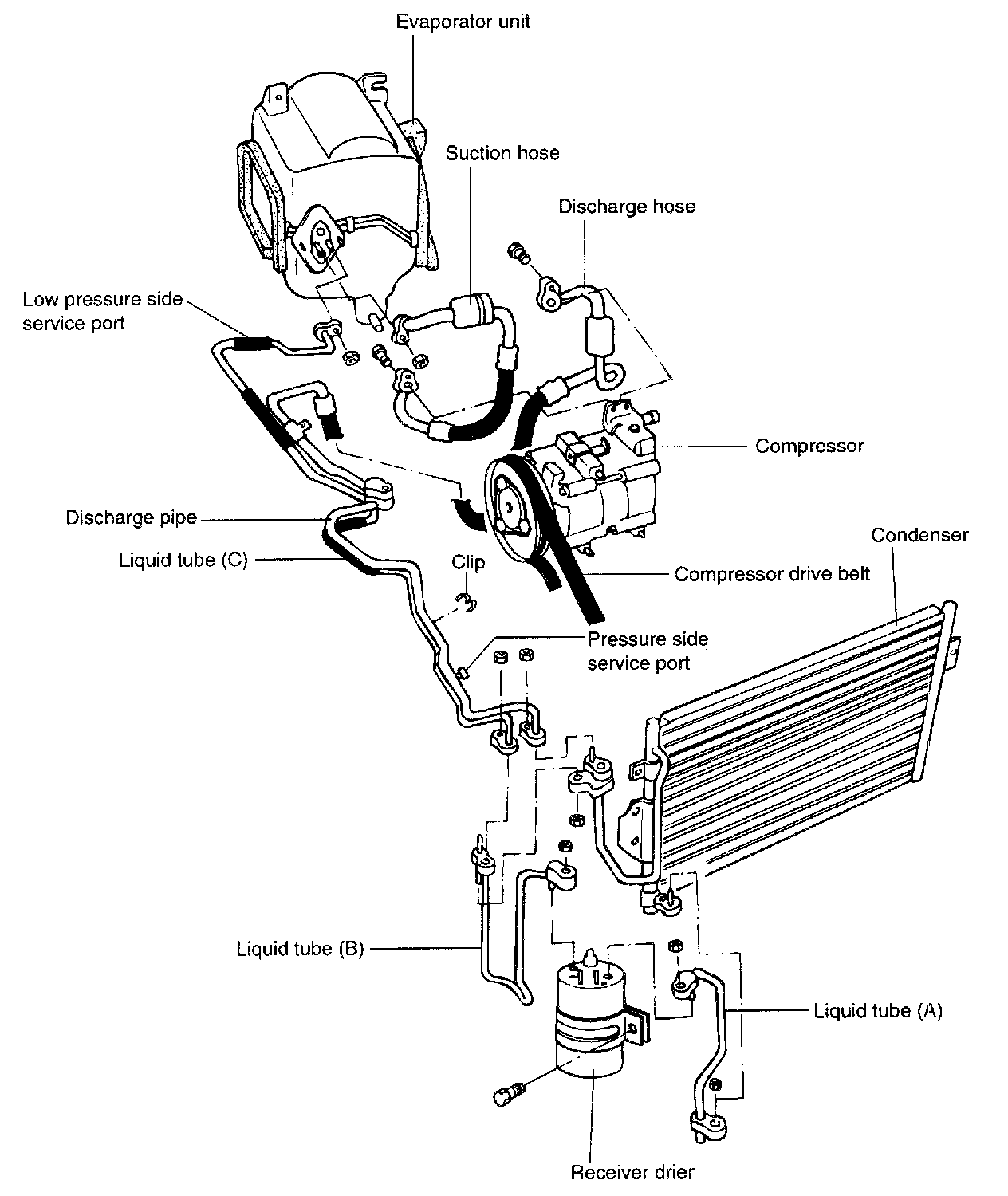

Refrigerant System Diagram/Component Locations:

M08 Fresh/Recirc Switch And Heater Control Panel:

M51 Thermostatic Switch:

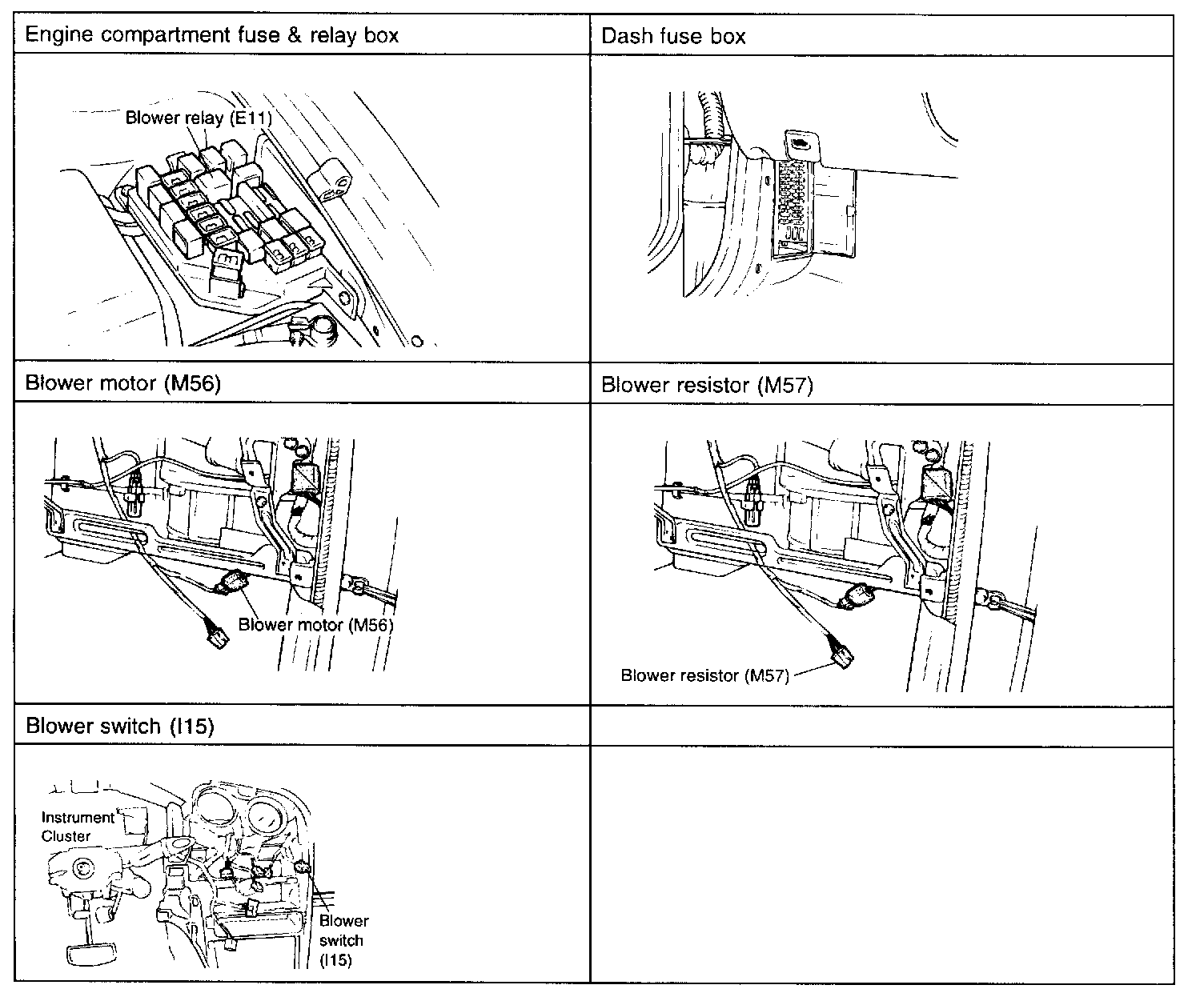

M56 Blower Motor, M57 Blower Resistor:

M58 Joint Connector:

E01 Head Lamp Relay (HIGH), E02 DRL Relay, E04 Start Relay, E05 Condenser Fan Relay, E06 Head Lamp Relay (LOW), E07 Radiator Fan Relay, E08 A/C Relay, E09 Front Fog Lamp Relay, E10 Tail Lamp Relay, E11 Blower Relay, E12 Horn Relay:

I14 (A/C Switch), I15 (Blower Switch):

C08 A/C Compressor:

C26 Engine Control Relay:

C31, C32 Joint Connector:

Z08:
