Inspection of Electronic Control System Components

INSPECTION OF ELECTRONIC CONTROL SYSTEM COMPONENTS





1. Wiring





2. Oil Temperature Sensor





3. Throttle Position Sensor

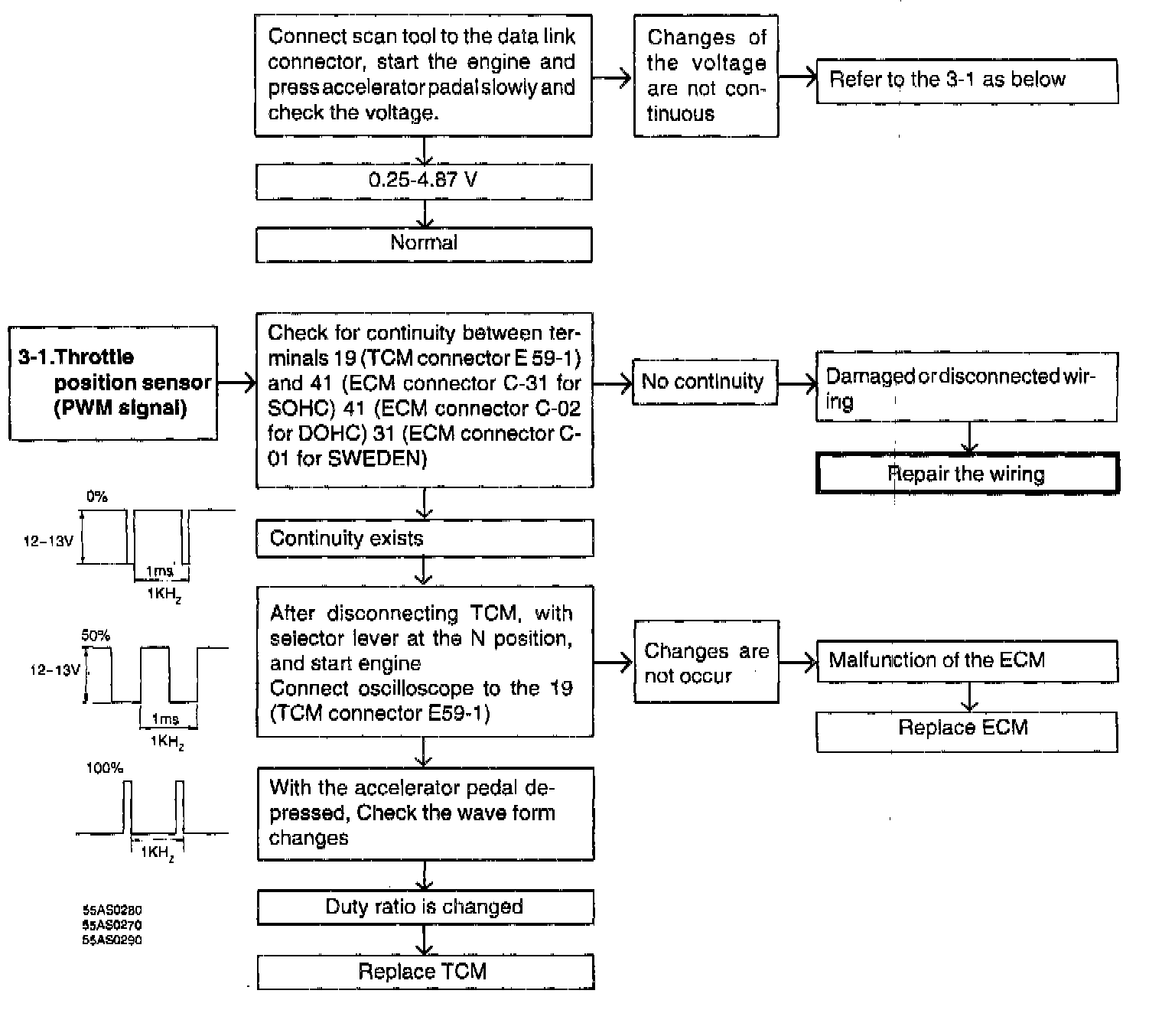

3-1. Throttle Position Sensor (PWM Signal)





4. Pulse Generator A or B

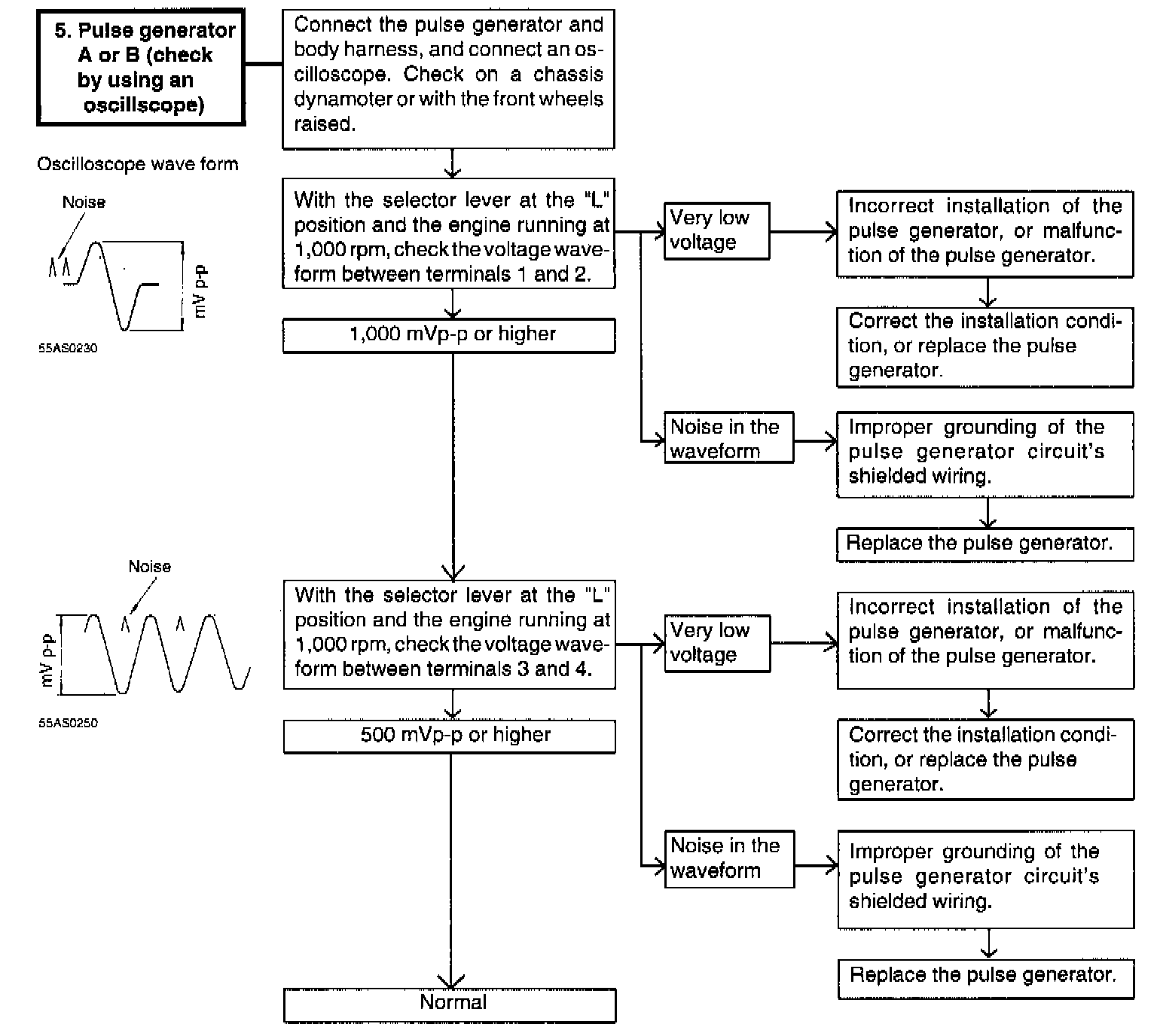

5. Pulse Generator A or B (Check w/Oscilloscope)





6. Pressure Control Solenoid Valve (PCSV)





7. Shift-Control Solenoid Valve (SCSV) A or B





8. Damper Clutch System





9. Damper Clutch Control Solenoid Valve (DCCSV)





10. Closed Throttle Position Switch

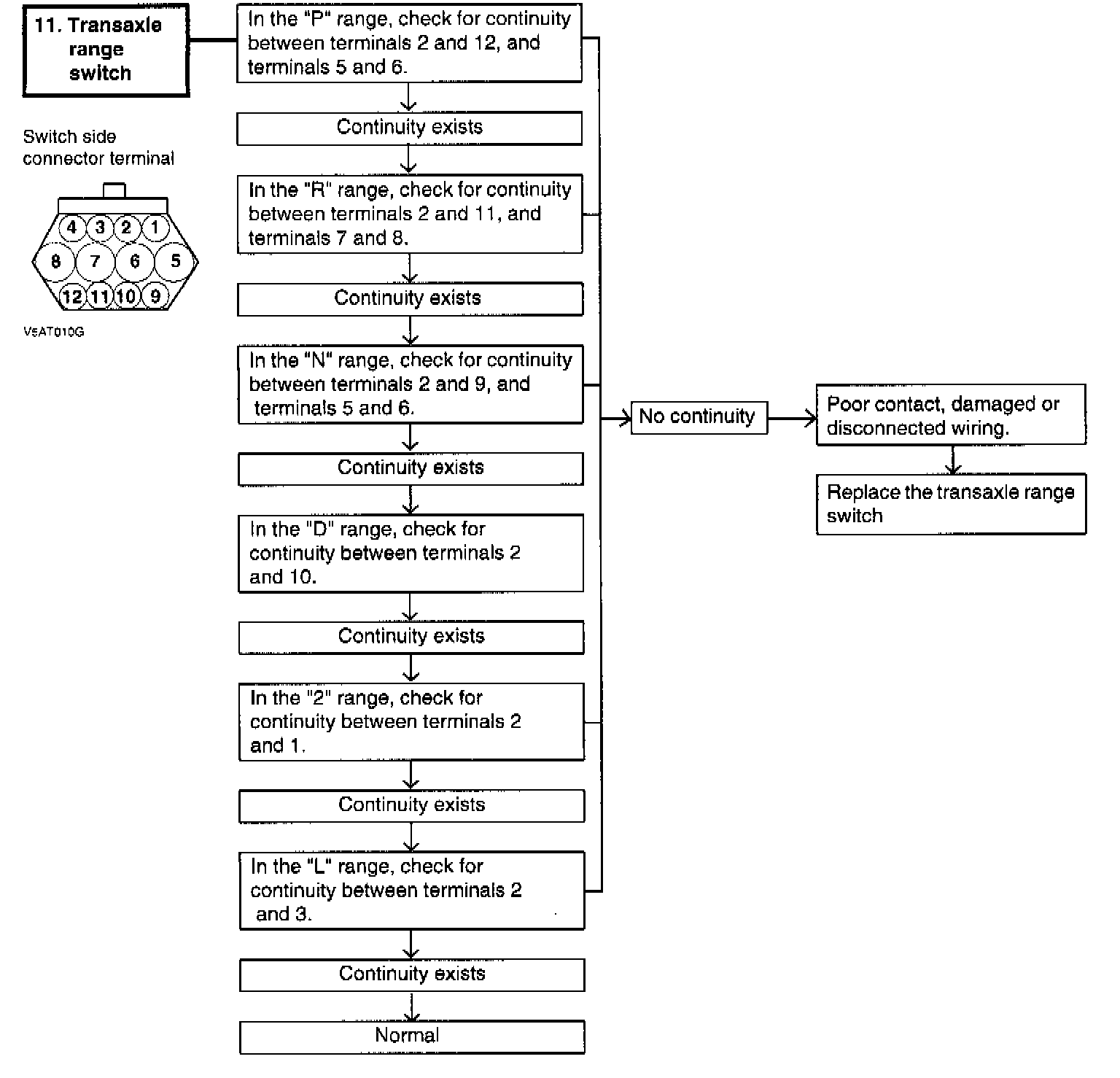

11. Transaxle Range Switch





12. Kickdown Servo Switch





13. Transaxle Control Module (TCM)
