Rear Wheel Alignment

TOE-IN
Standard value mm (inch): 3 ± 2 (0.12 ± 0.079)

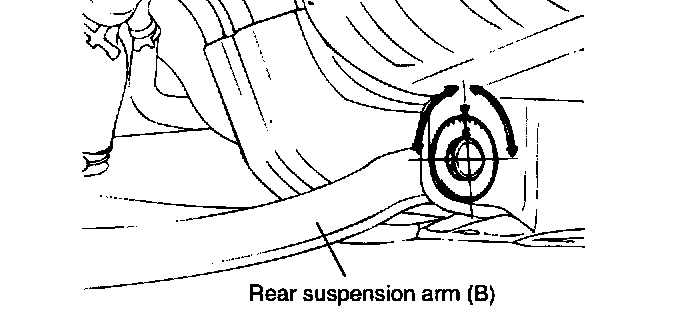

NOTE: The rear suspension arm (B) mounting bolt should be turned an equal amount on both sides when adjusting.

Inside of the vehicle: toe-in
Outside of the vehicle: toe-out
The scale has graduations of approximately 2.4 mm (0.09 inch)
(single side too angle equivalent to 14')

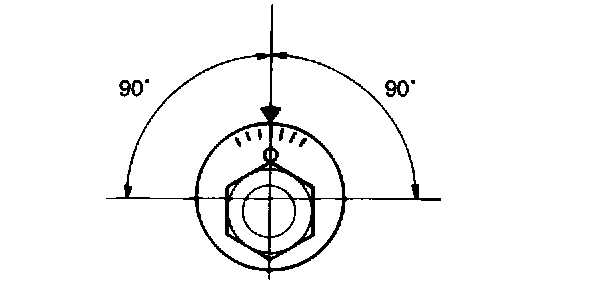

CAUTION: The eccentric bolt should be adjusted within a 90° range left and right from the center position.
