Console: Service and Repair
CONSOLEConsole:

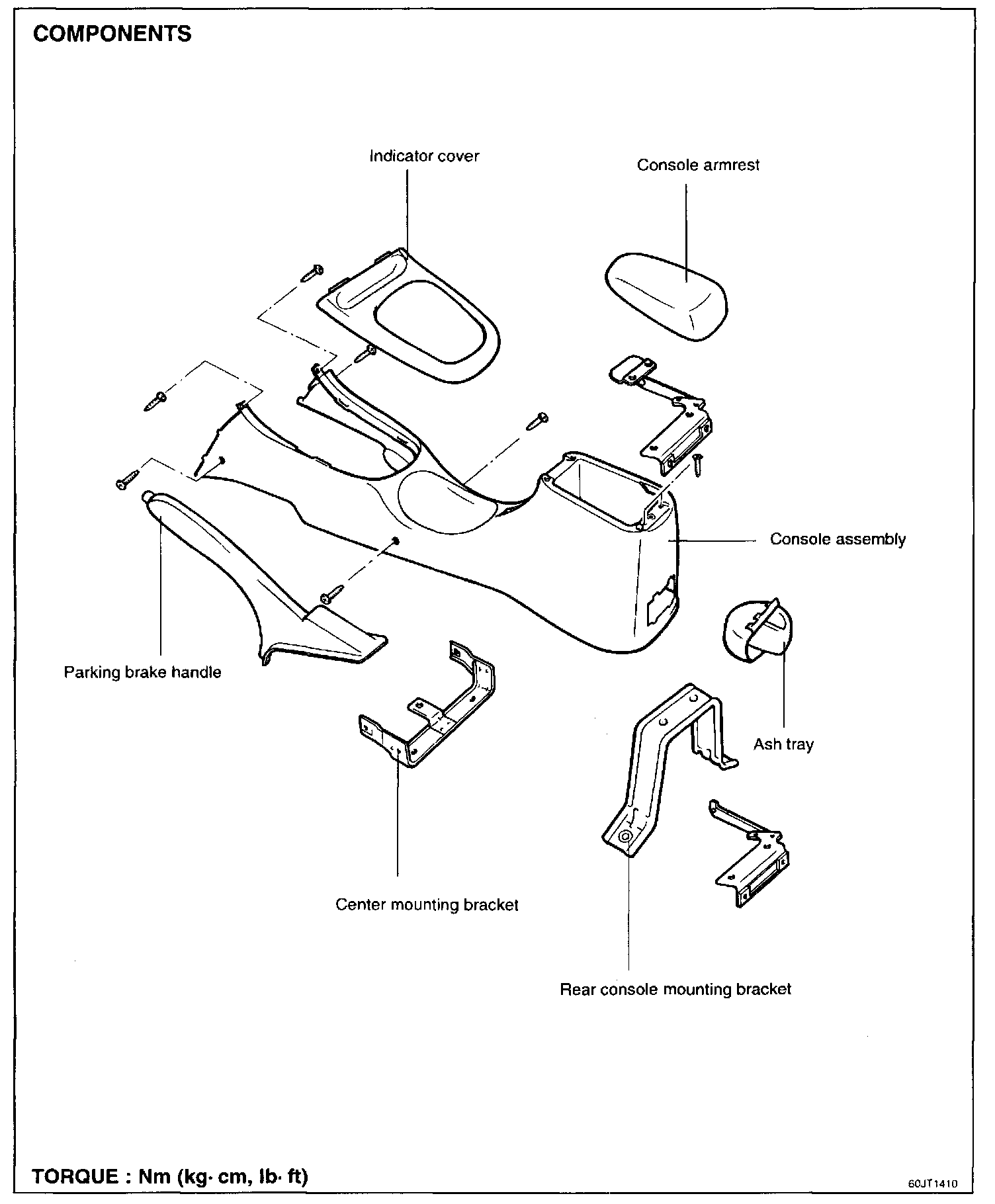

REMOVAL AND INSTALLATION 1.
Remove the
console upper cover.
2.
Remove the rheostat.
3.
Remove the center facia panel mounting screws.
4.
Pull the center facia panel forward and then find out the
console mounting screws.
5.
Remove the
console assembly.
6.
Installation is the reverse of the removal.
