A/T Solenoid Connector Pin - Identification Correction

Group: TRANSAXLE

Number: 00-40-006

Date: MAY, 2000

Model: 2000 ELANTRA
2000 TIBURON

Subject
2000 ELANTRA/TIBURON SHOP MANUAL AND ETM CORRECTION

DESCRIPTION:

The automatic transaxle solenoid pin locations and descriptions are incorrectly showing in the 2000 Elantra/Tiburon Shop Manual and ETM. Please correct your shop manuals and ETM as shown in this bulletin.





2000 ELANTRA/TIBURON SHOP MANUAL - PAGES AT-71, AT-73, AT-34, AT-36, AT-37 AT-38, AT-40, AT-41:

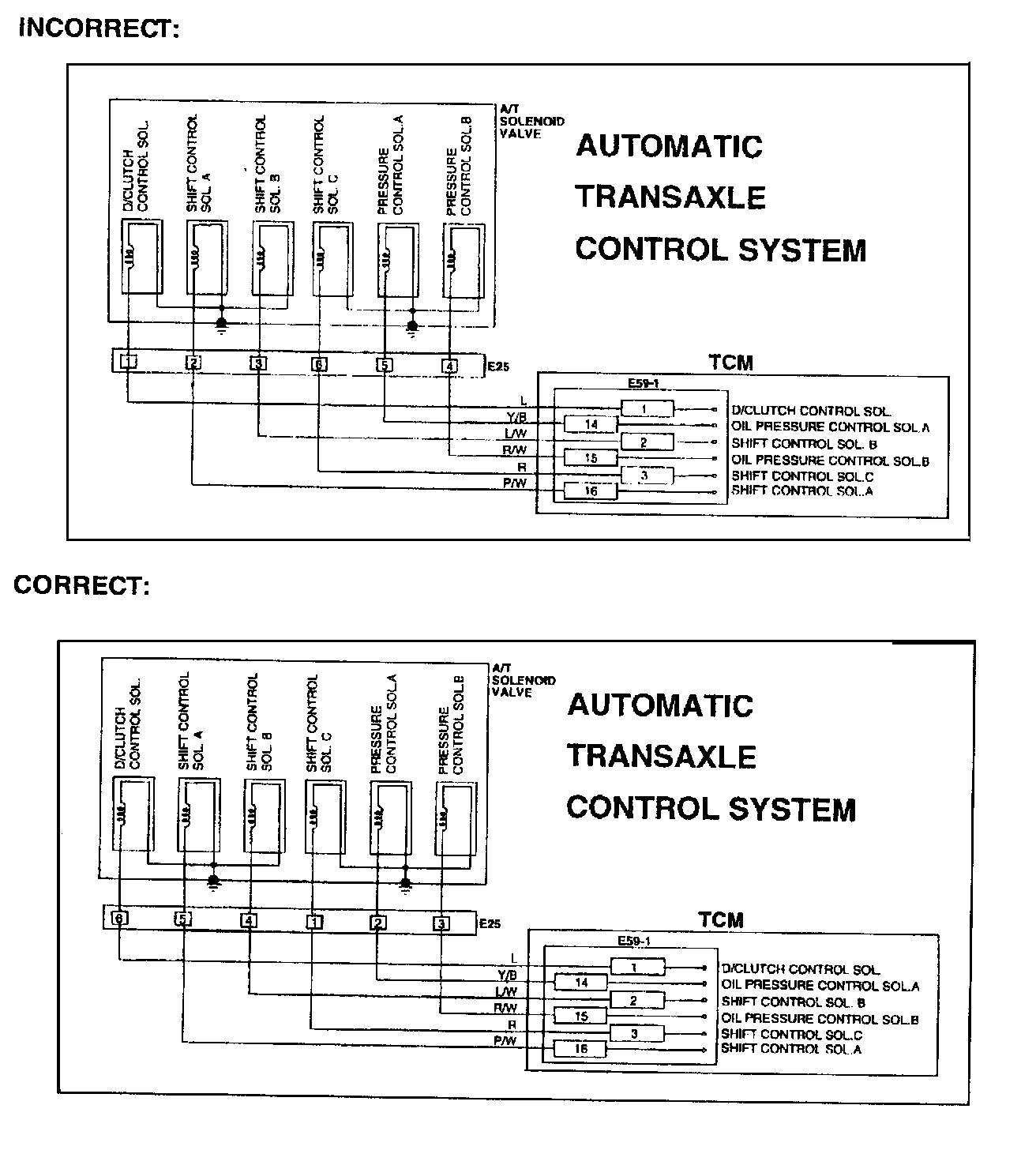

2000 ELANTRA/TIBURON ETM - PAGES SD-63 (ELANTRA) & SD-59 (TIBURON):

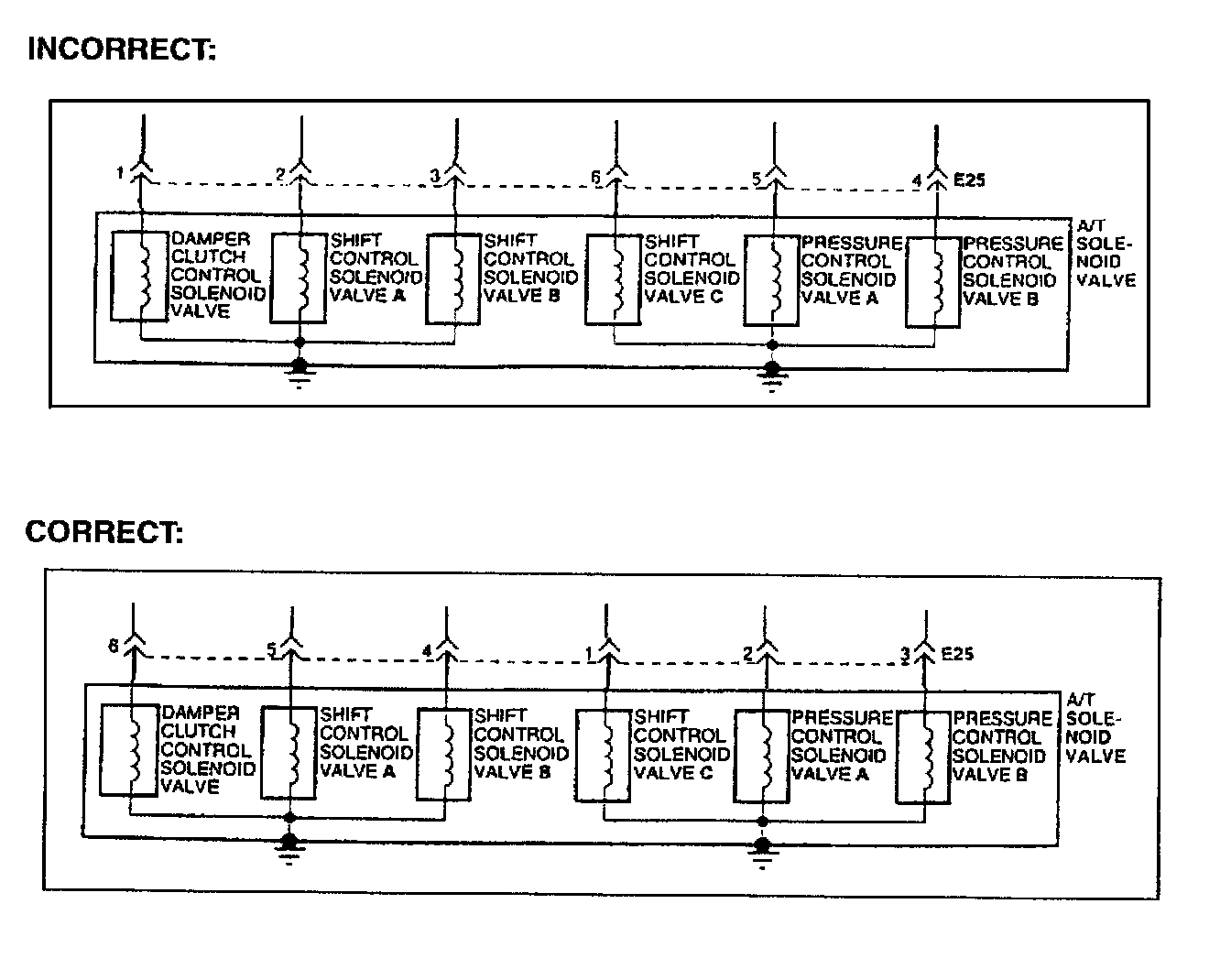

2000 ELANTRA/TIBURON ETM - PAGES SD-64-1 (ELANTRA) & SD-60-1 (TIBURON):
