Alternator: Service and Repair
Generator Removal and ReplacementRemoval 1.

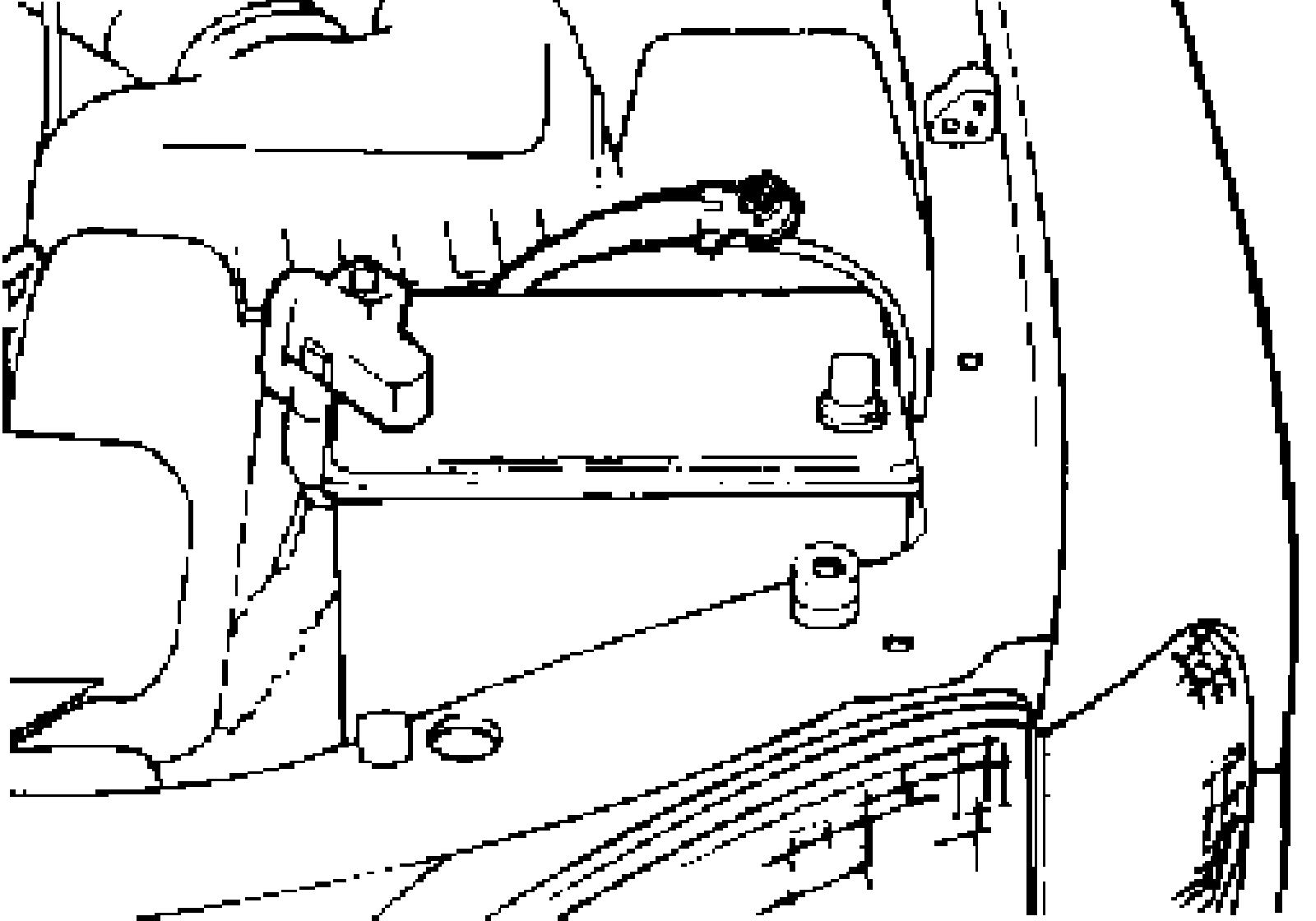

Disconnect the negative battery terminal.
2.

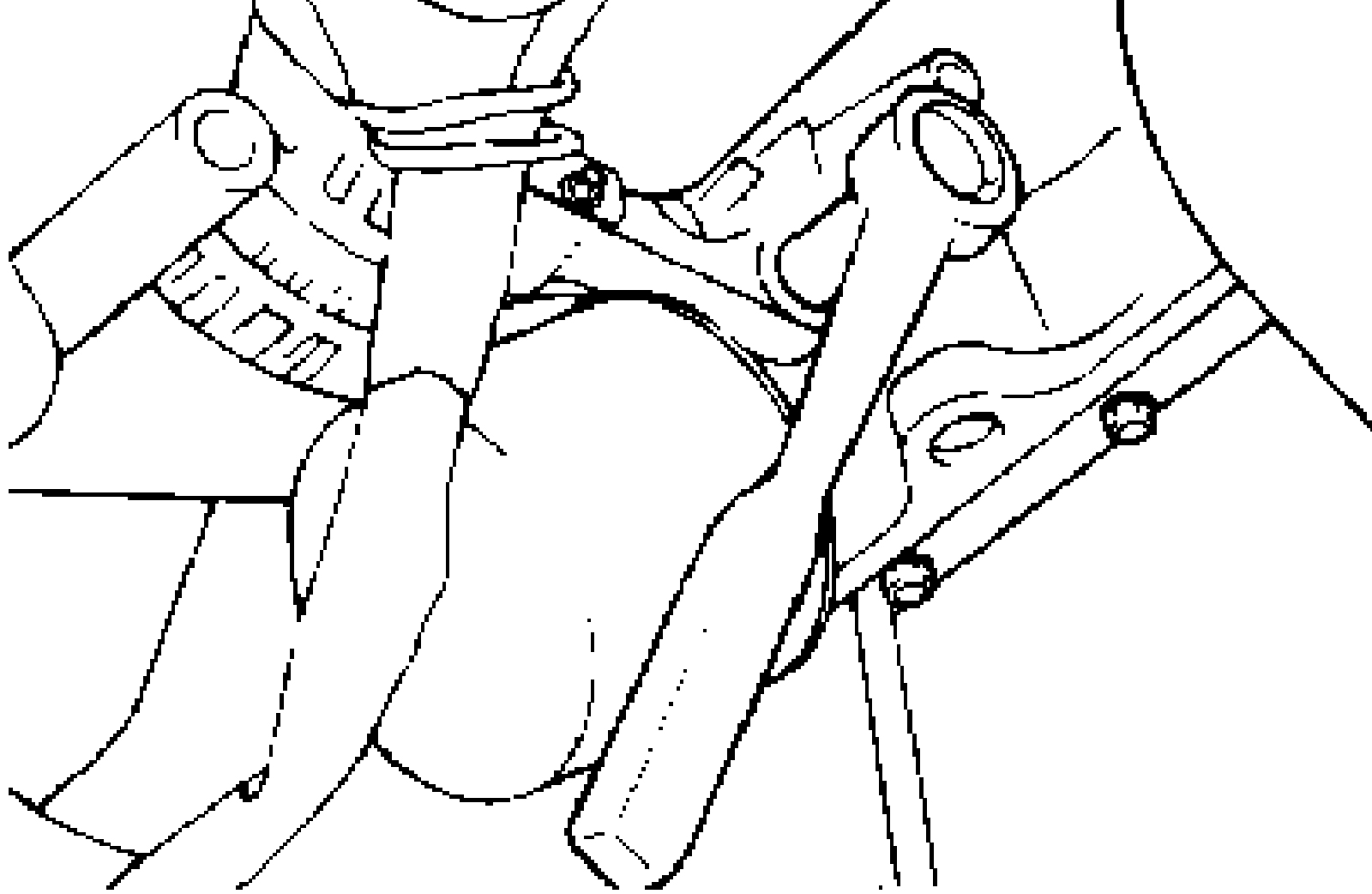

Loosen the belt tension.
3.
Raise the vehicle.
4.

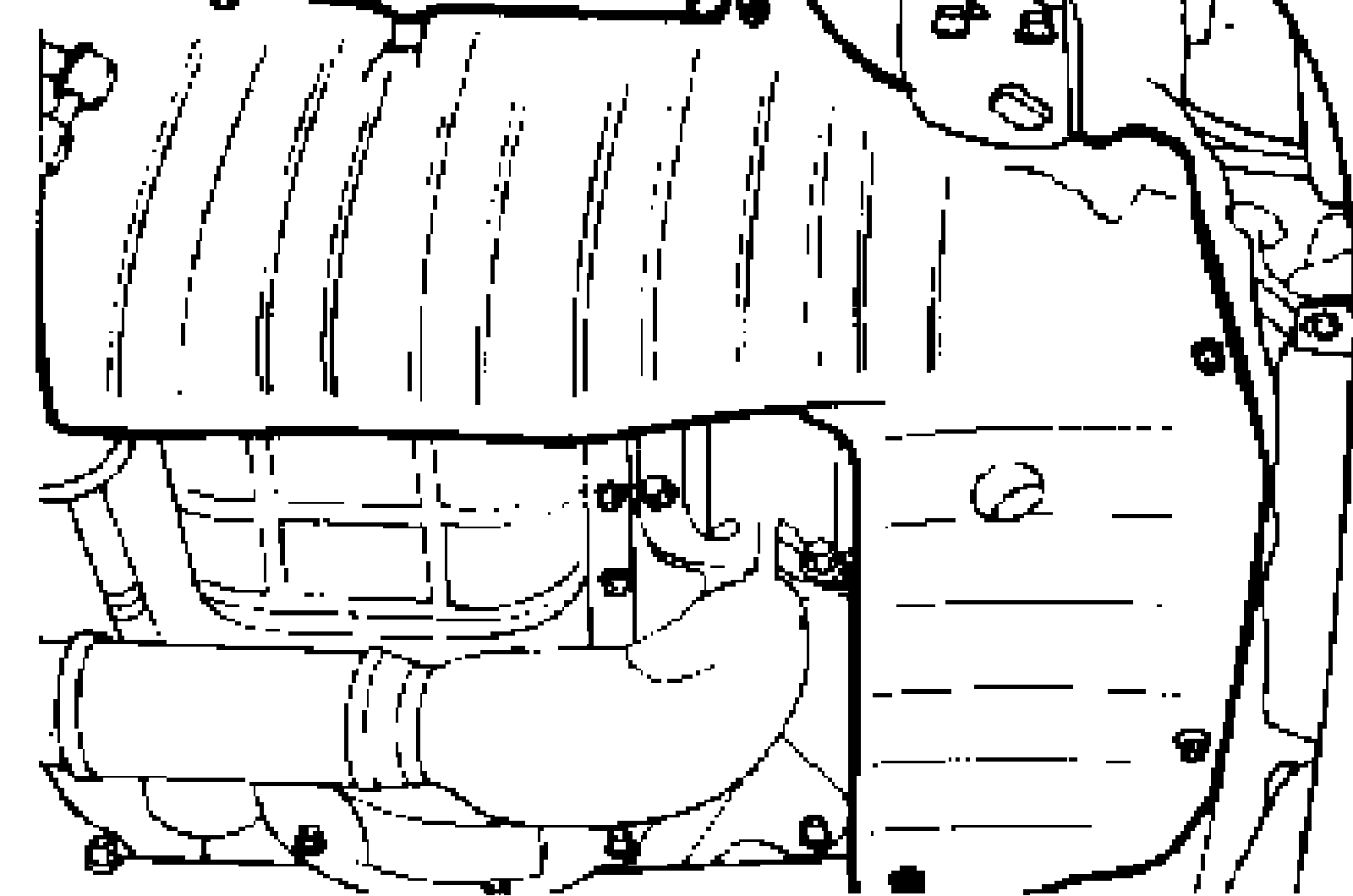

Remove the mud guard - RH
5.

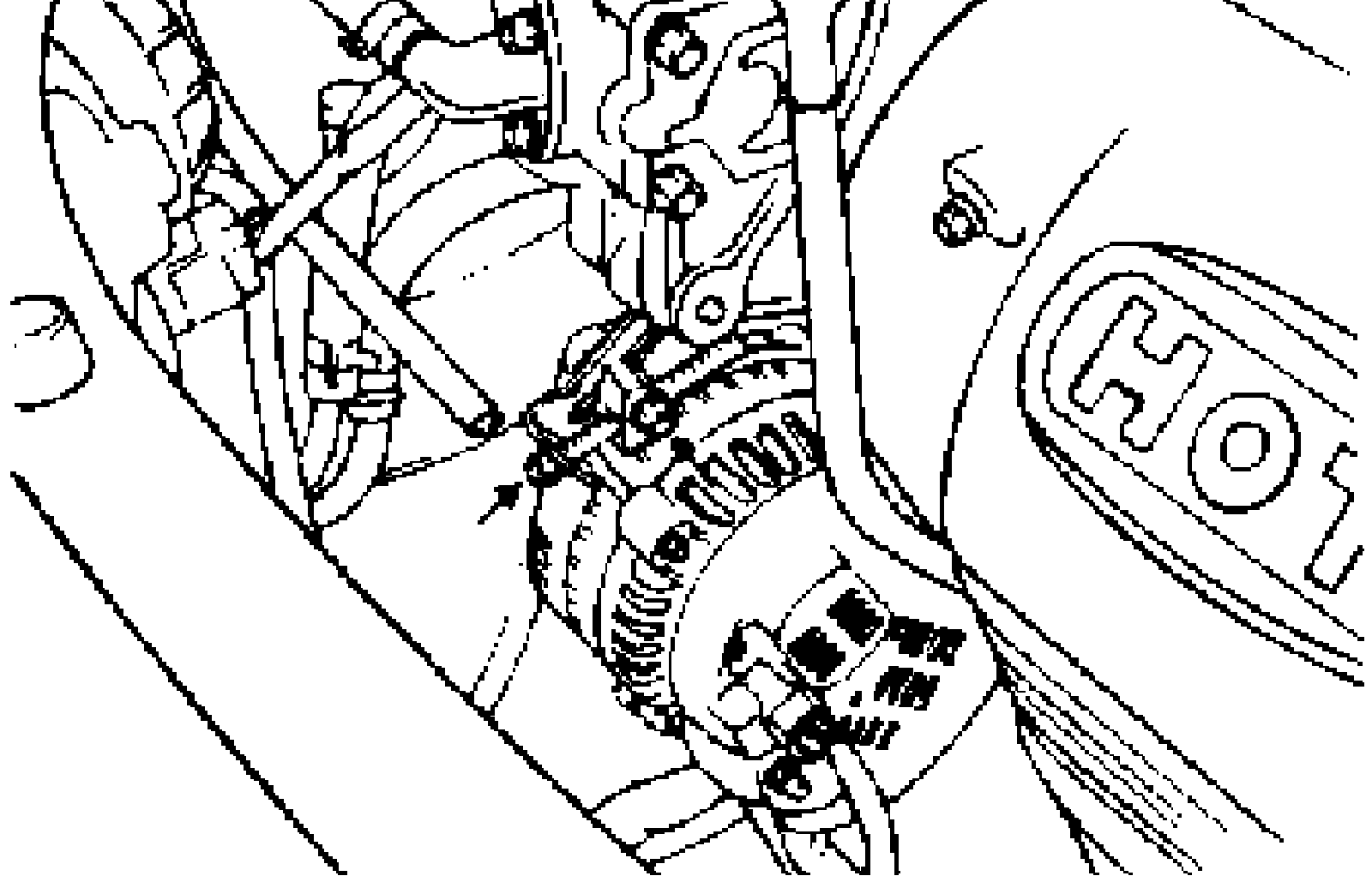

Disconnect the generator B+ terminal wire and connector.
6.

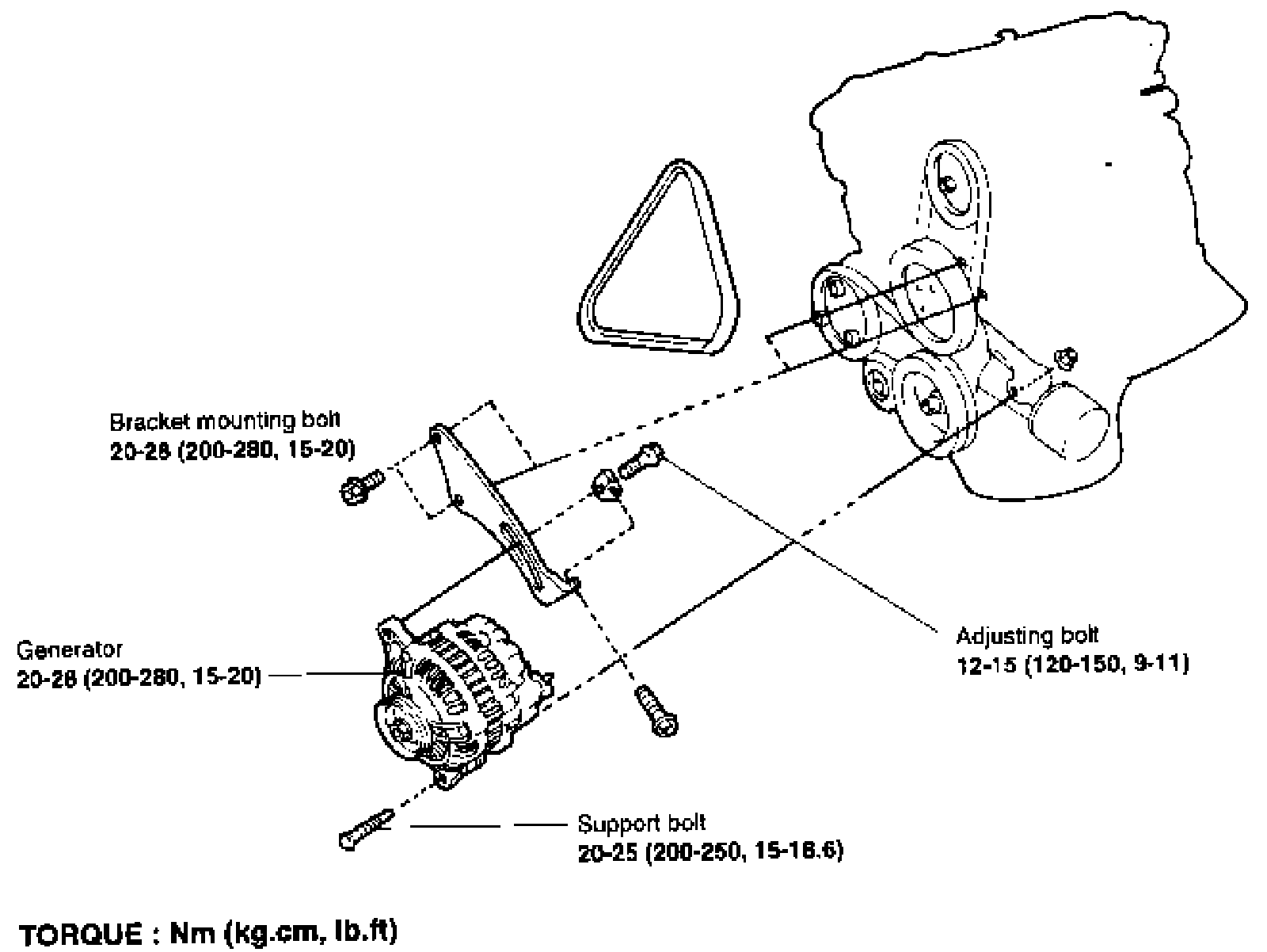

Remove the belt and generator mounting bolt (2EA).
7.
Remove the generator assembly.
Installation Installation is in the reverse order of removal.
