Starter Motor: Service and Repair
Removal 1.

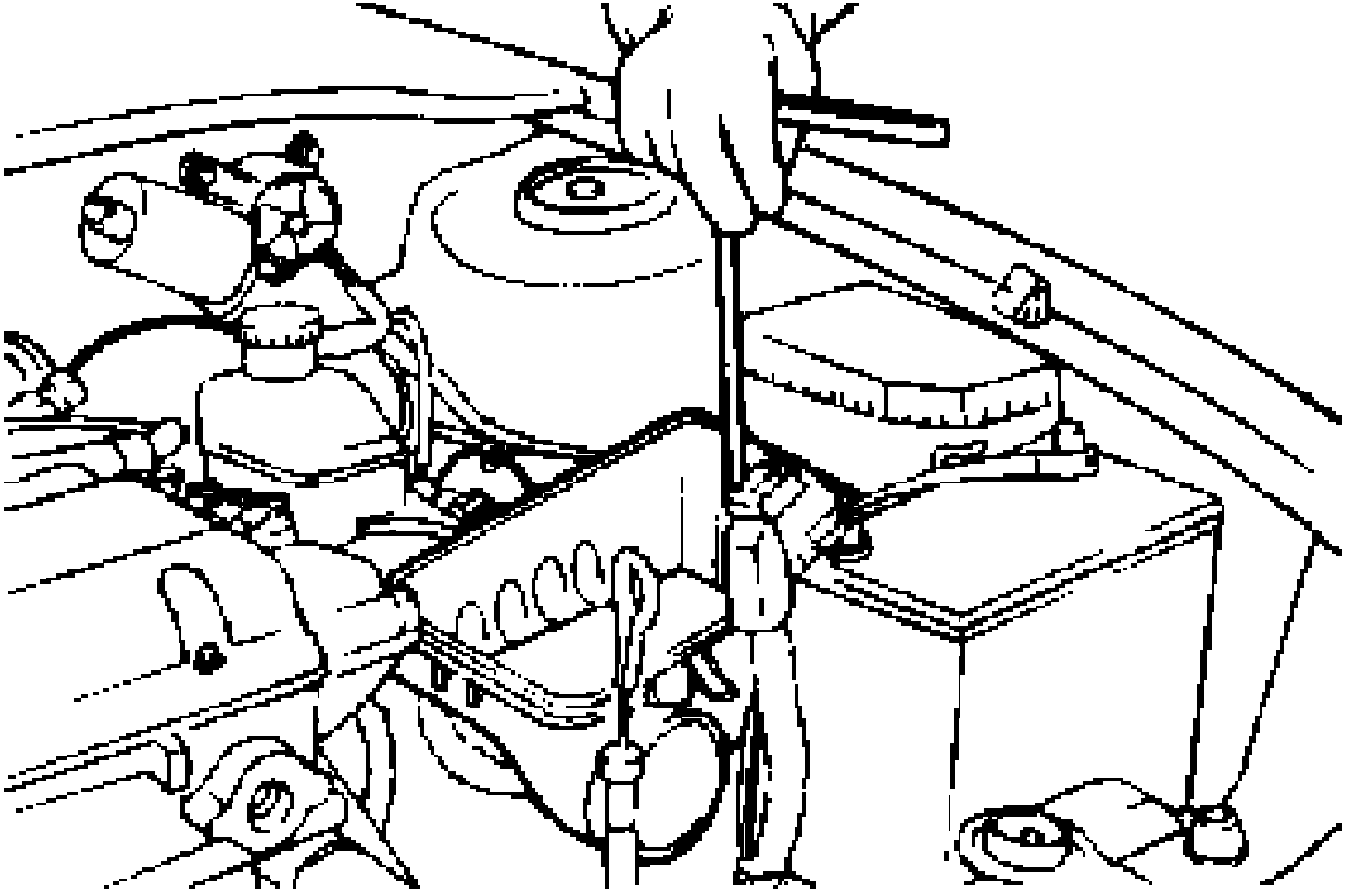

Remove the battery negative terminal.
2.

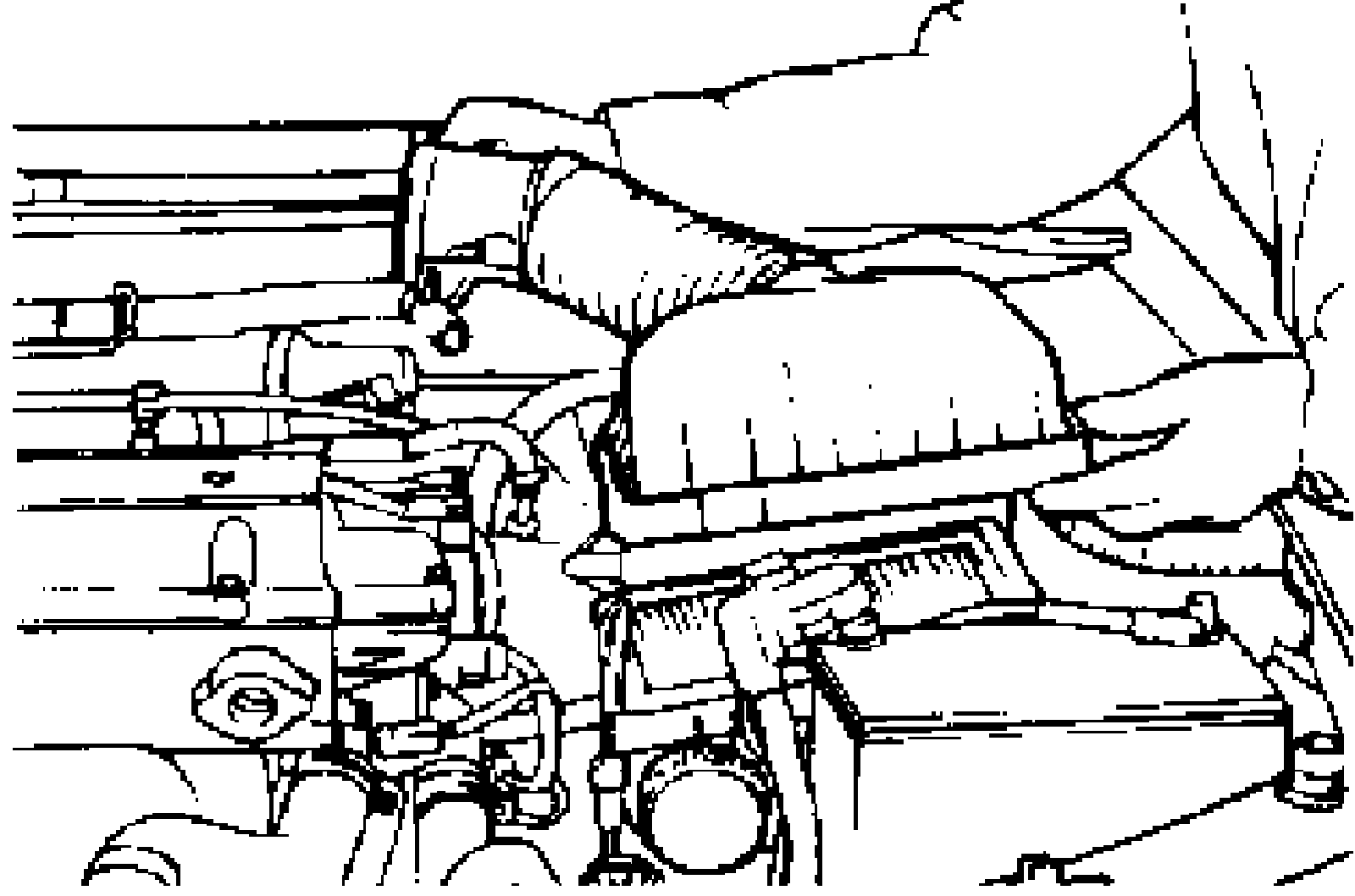

Remove the air duct and air cleaner cover.
3.
Remove the air cleaner assembly, and speedometer cable.

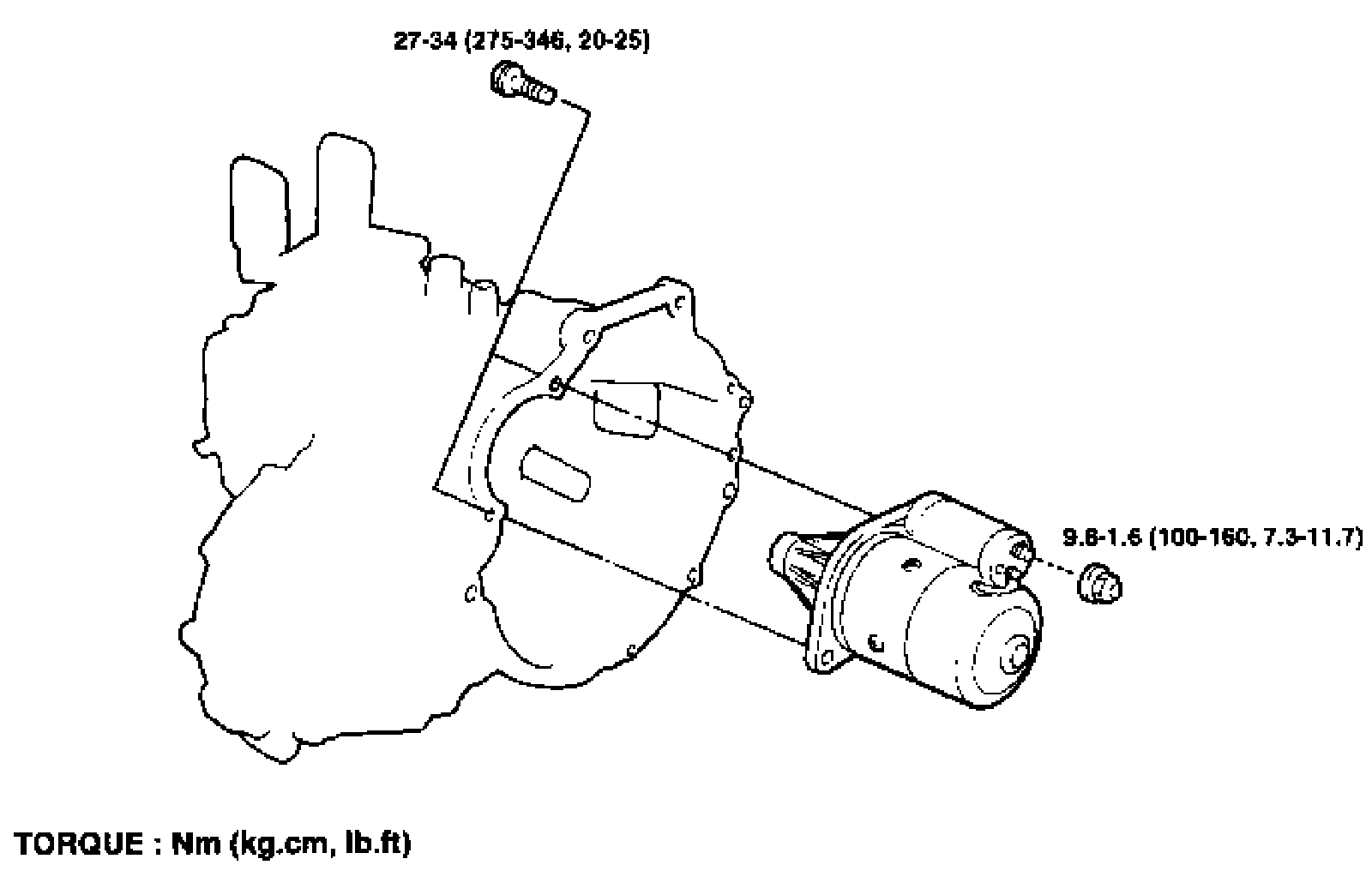

4.
remove the
starter motor.
Installation Installation is in the reverse order of removal.
