Front
Front:
REMOVAL 1.
Remove the wheel and tire.
2.

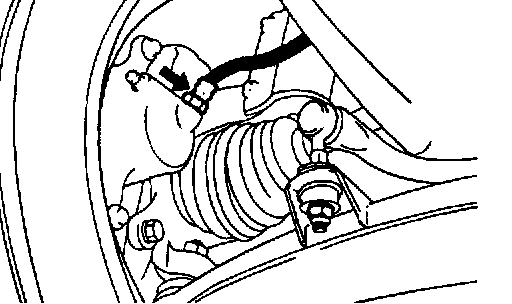

Remove the brake hose from the caliper.
3.

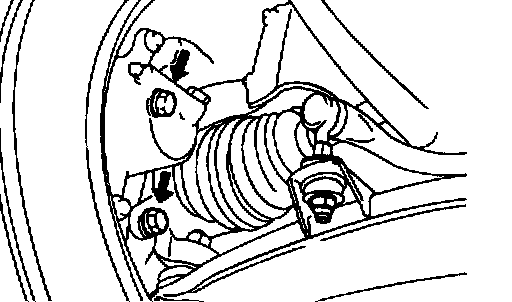

Remove the caliper assembly by removing the torque plate.
INSTALLATION 1.
Install the pads and brake cylinder.
2.
Install the brake hose to the caliper.

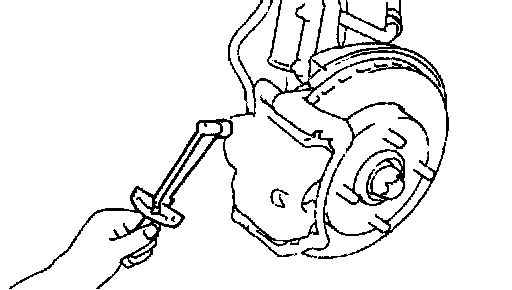

Bleeder screw tightening torque:
7 - 13 Nm (70 - 90 kg.cm, 5 - 9.6 ft. lbs.) 3.
Fill brake reservoir with
brake fluid.
4.
Bleed the system.
