Disassembly and Reassembly
DISASSEMBLYIf the disassembly procedure is complex, requiring many parts to be disassembled, all pans should be disassembled in a way that will not affect their performance or external appearance.

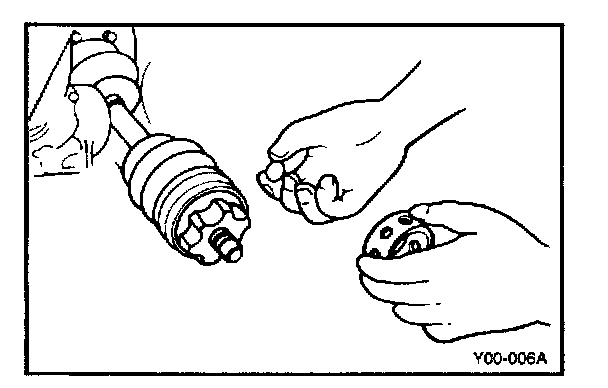

1. Inspection of parts
Each pan when removed should be carefully inspected for malfunction, deformation, damage, and other problems.

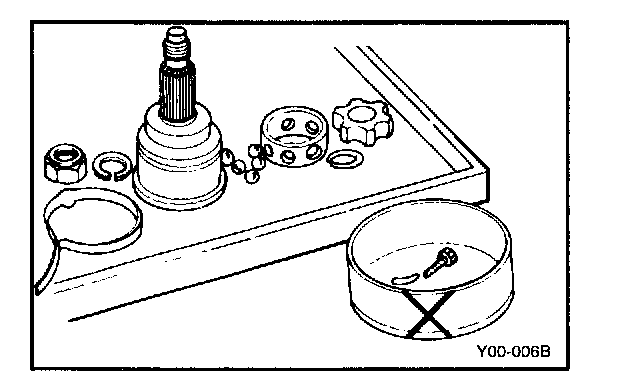

2. Arrangement of parts
All disassembled parts should be carefully arranged for effective reassembly.
Be sure to separate an correctly identify the parts to be replaced from those that will be reused.

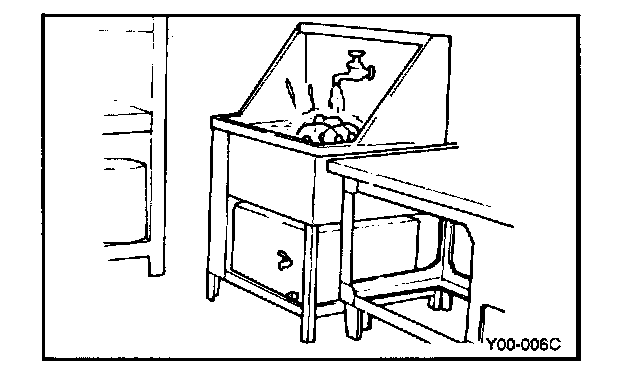

3. Cleaning parts for reuse
All parts to be reused should be carefully and thoroughly cleaned by the appropriate method.
PARTS
When replacing parts, use HYUNDAI genuine parts.
REASSEMBLY
Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts.

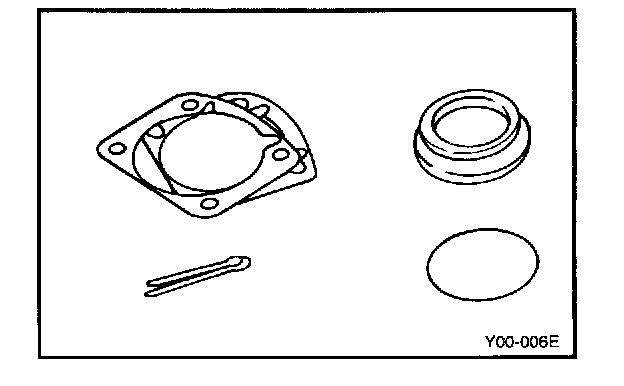

If removed, the following parts should be replaced with new ones.
1. Oil seal
2. Gasket
3. O-rings
4. Lock washers
5. Cotter pins (split pins)
6. Plastic nuts
Depending on their location

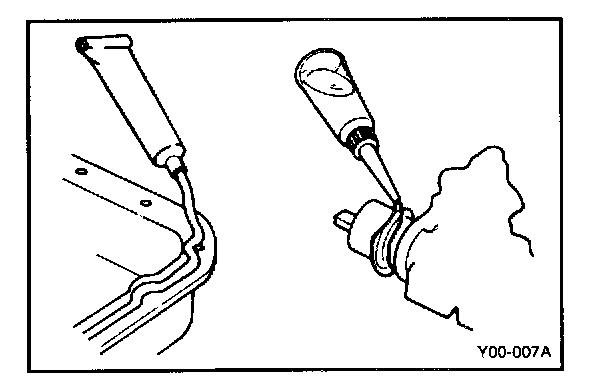

1. Sealant should e applied to gaskets.
2. Oil should be applied to the moving components of parts.
3. Specified oil or grease should be applied at the prescribed locations (oil seals, etc.) before assembly.
