A/C - Convert HVAC Temperature Display to Fahrenheit

Group: CLIMATE CONTROL

Number: 01-97-002

Date: OCTOBER, 2001

Model:
2001 ELANTRA

Subject:
2002 SANTA FE PRE-DELIVERY SERVICE REQUIREMENT

DESCRIPTION:

On 2002 model year Santa Fe's equipped with the automatic climate control option, anytime the 12-volt power supply is removed, the HVAC display will default to a Celsius temperature value. When the vehicle arrives at your dealership, the temperature display will be displayed in Celsius since the "short connector" has been left in the open position during transportation. This bulletin provides the procedure for converting the display to Fahrenheit.

SERVICE PROCEDURE:





During the Pre-Delivery Inspection (PDI) the "short connector" must be properly installed to allow interior lights and audio system to function normally.

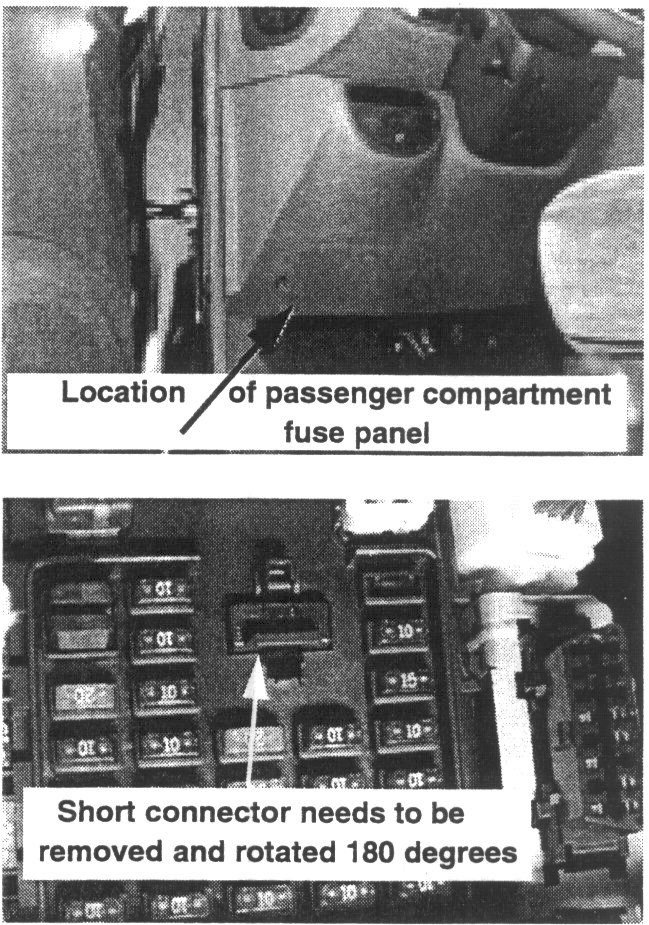

The "short connector" is located in the passenger fuse compartment and needs to be rotated 180 degrees to enable the circuits to operate.

NOTE:
The display can be changed with out rotating the "short connector" but the display will default back to Celsius once the ignition is turned off.

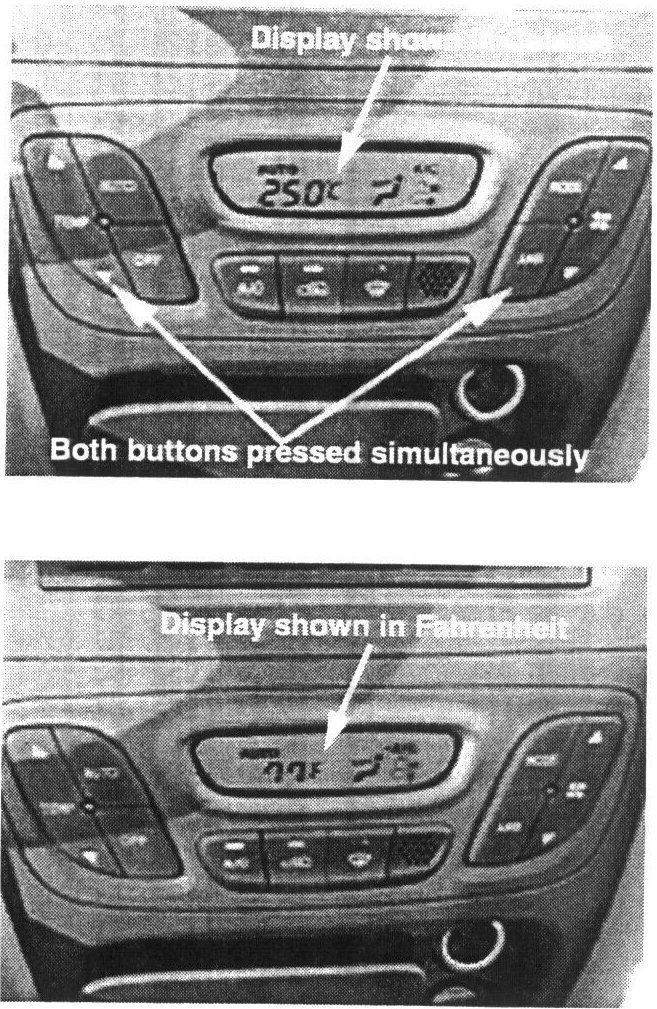

After the "short connector" has been fully seated, turn the ignition switch to the run position to activate the HVAC display. Then press both the "AMB" and the "TEMP(down)" buttons simultaneously for approximately 3 seconds. The display will change from Celsius to Fahrenheit.

NOTE:
This procedure for resetting the HVAC temperature display will need to be used anytime the 12-volt power supply is interrupted such as when the battery is disconnected or has discharged.
