M Connectors (Main Harness)

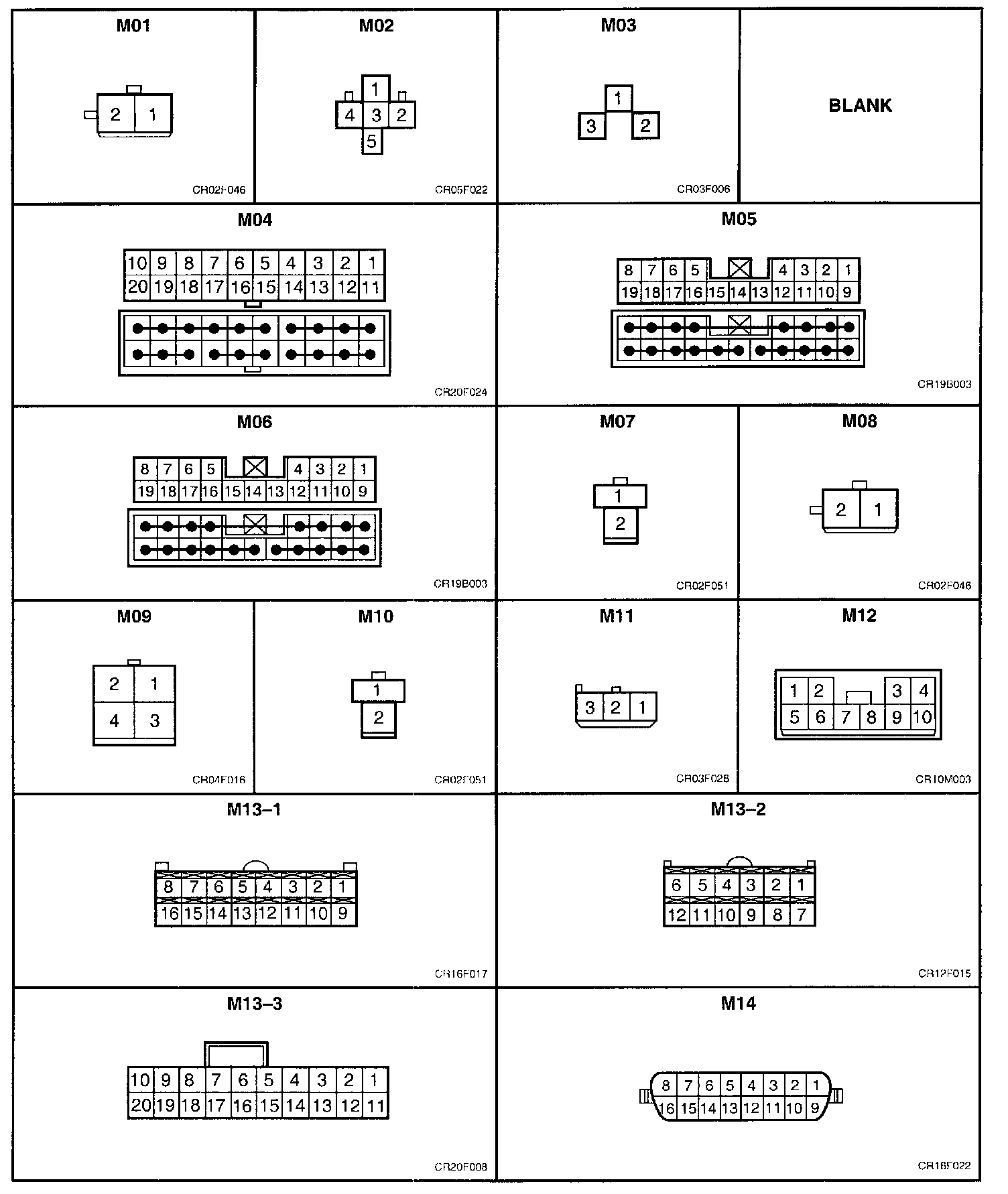

M01 - M14:

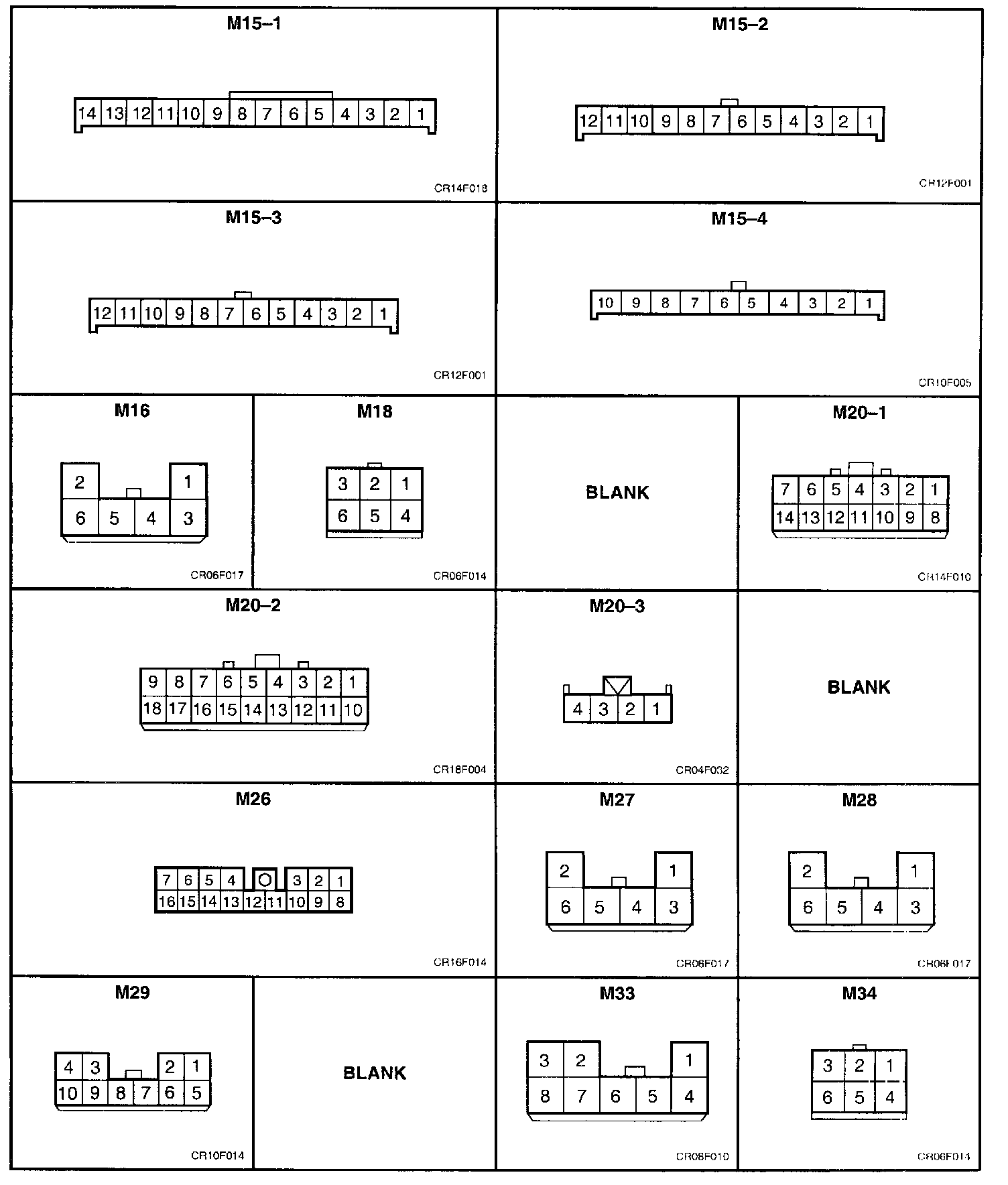

M15-1 - M34:

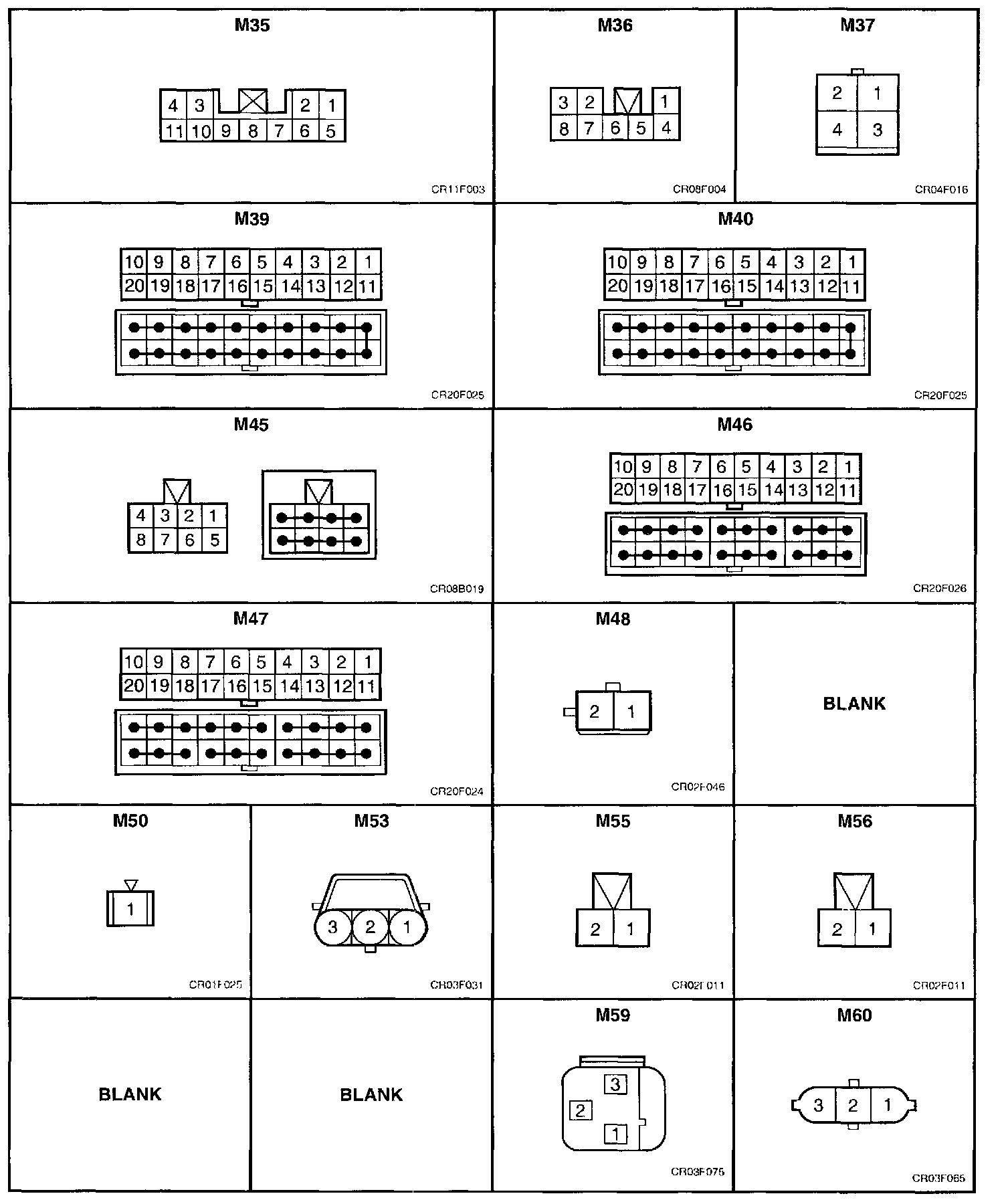

M35 - M60:

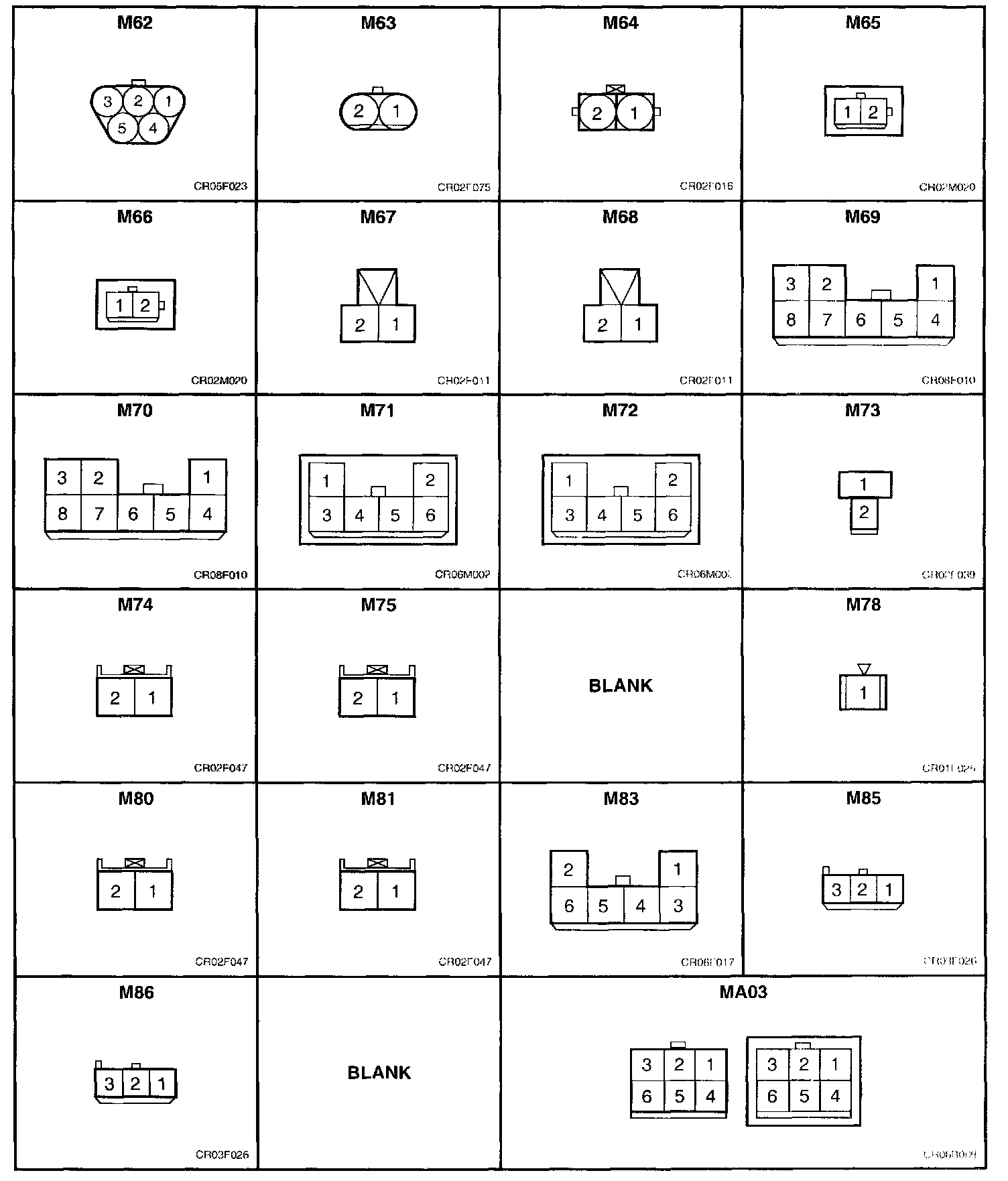

M62 - MA03:

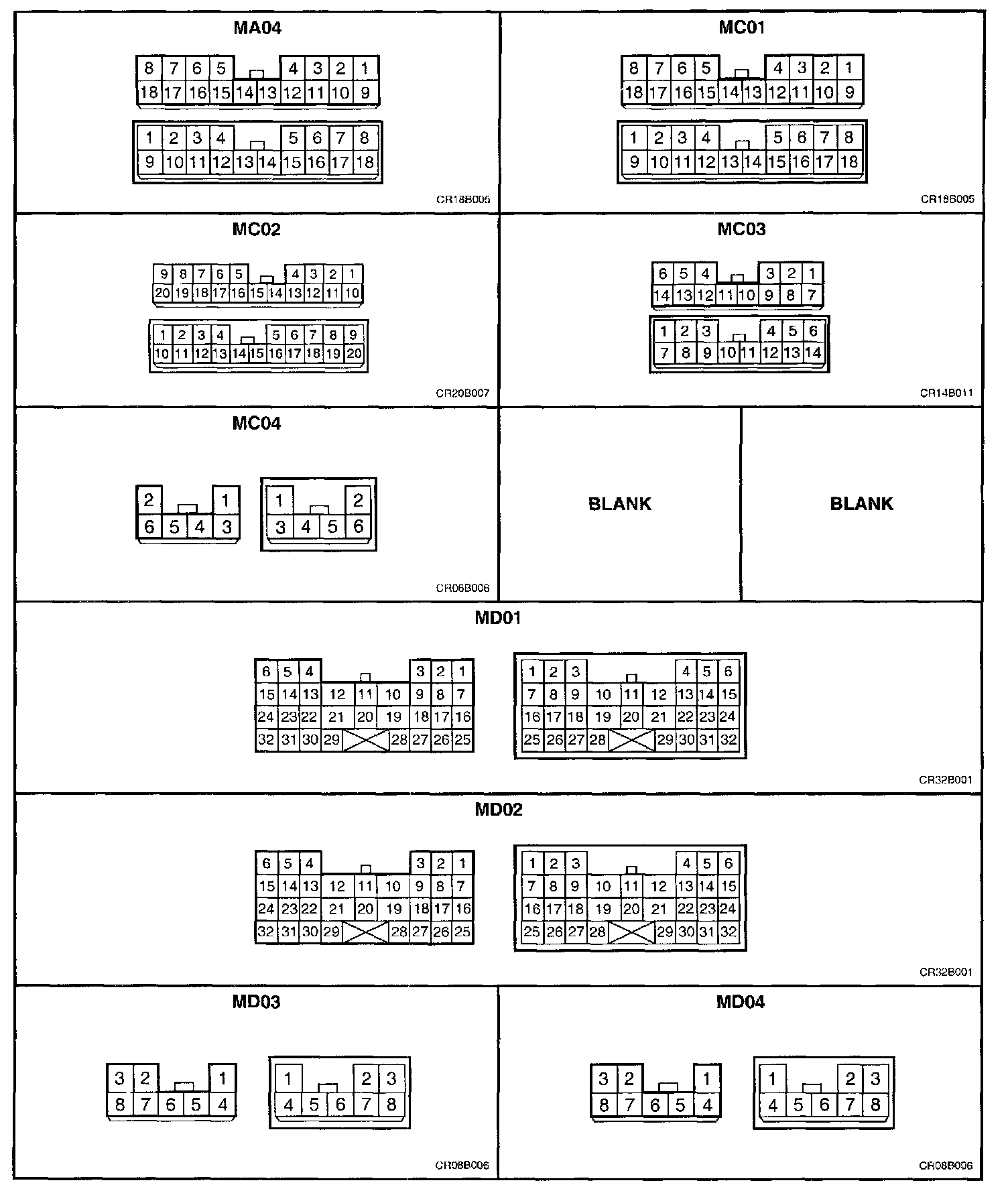

MA04 - MD04:

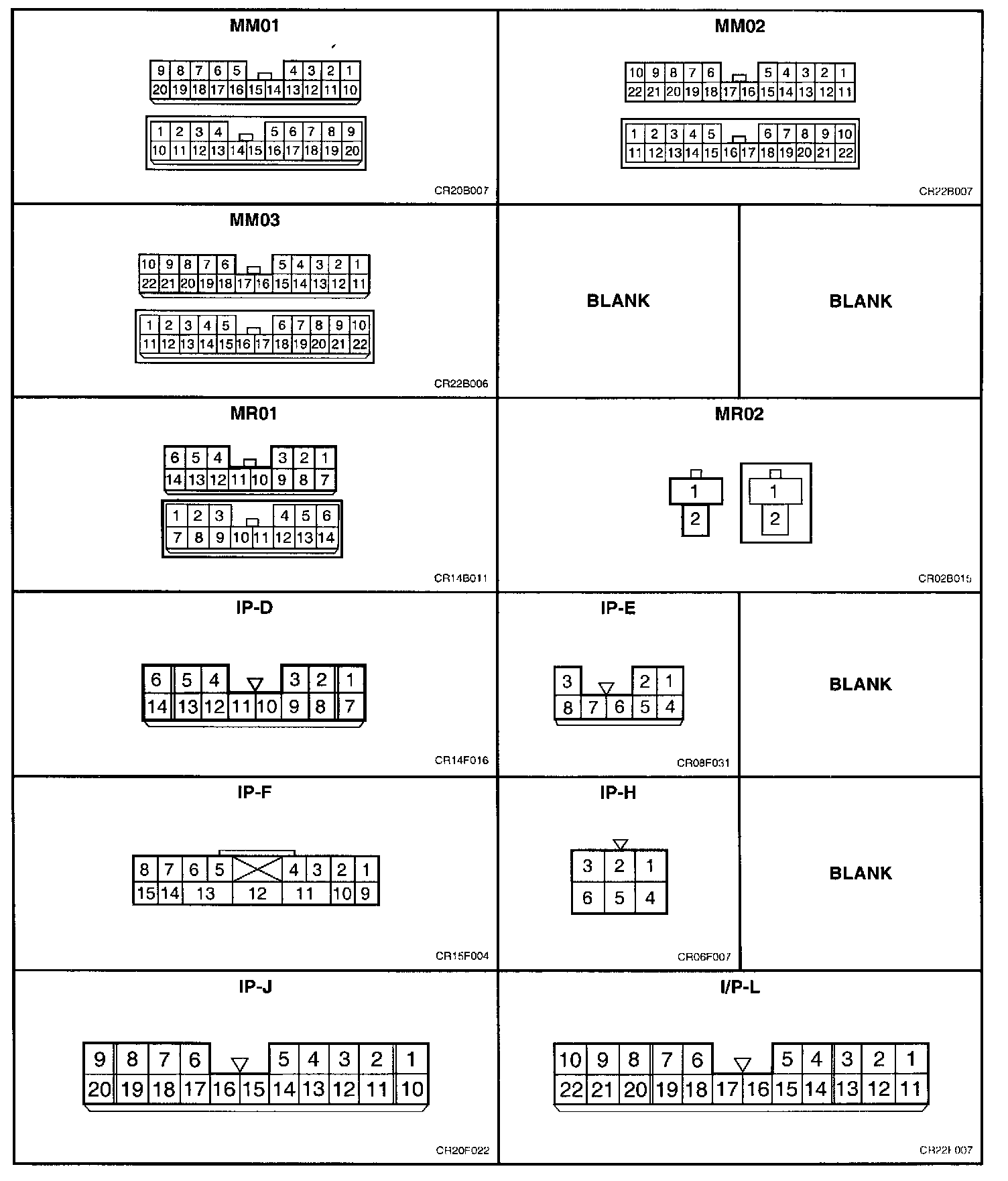

MM01 - MR02, IP-D - IP-J, I/P-L:

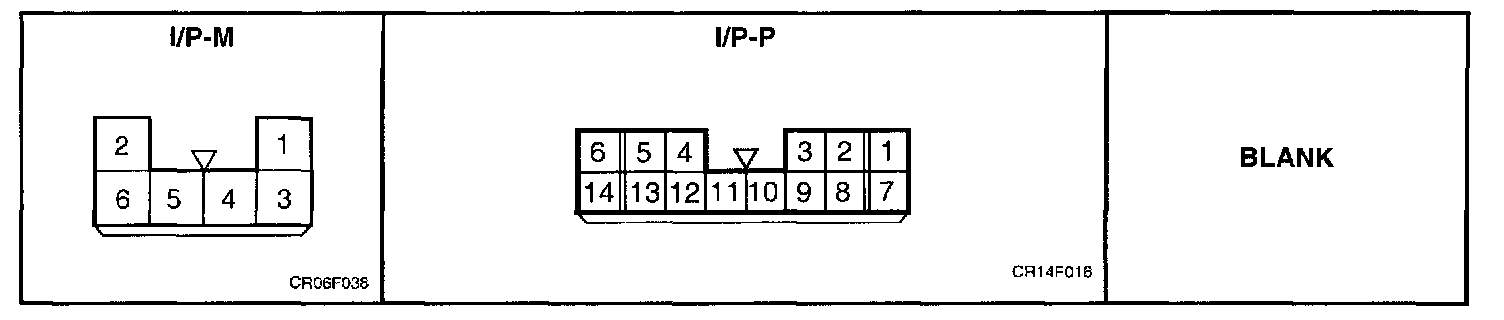

I/P-M - I/P-P:
