Daytime Running Lamp: Testing and Inspection

DAYTIME RUNNING LIGHT (DRL)

OPERATION CHECK
Check that the lights operate according to the following timing chart.

If circuit is not as specified, refer to schematic diagram and inspect short or circuits.

Timing Chart:

INSPECT CIRCUITS FOR DAYTIME RUNNING LIGHT SYSTEM

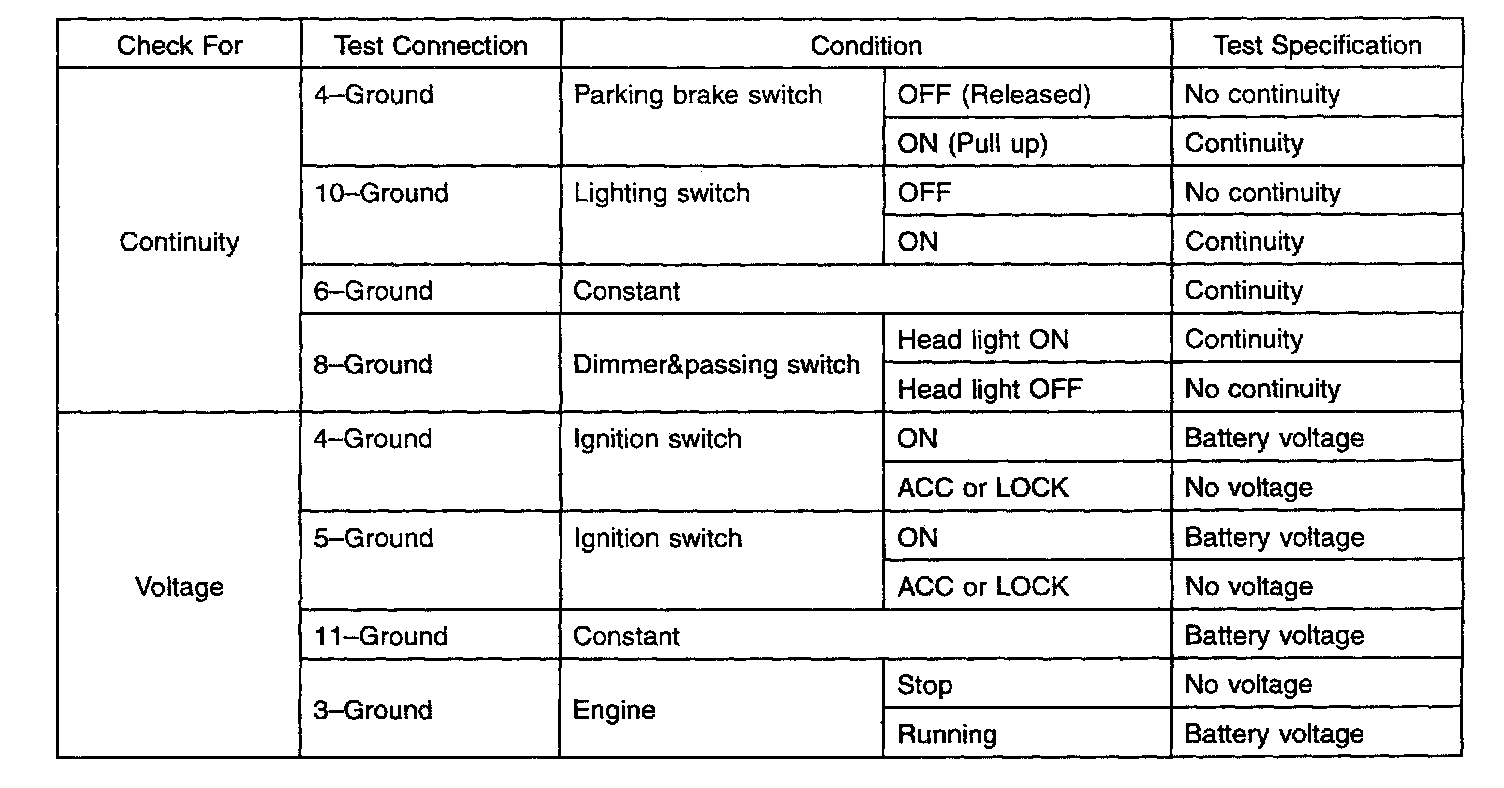

Disconnect the connector from DRL module and inspect the connector on wire harness side as shown.
