Cabin Air Filter / Purifier: Service and Repair

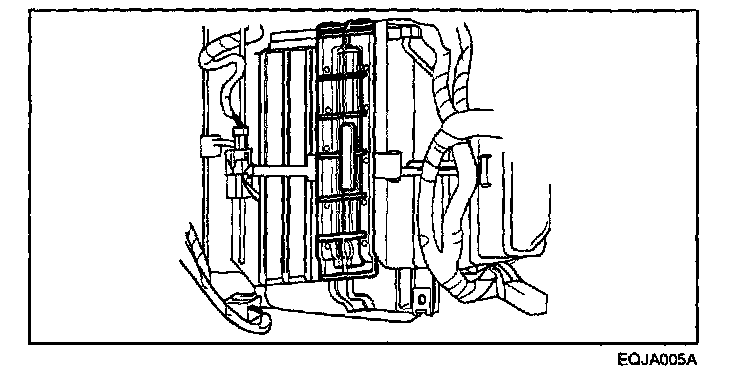

BLOWER UNIT AIR FILTERREMOVAL AND INSTALLATION 1.
Remove the glove box housing.
2.
Remove the lower side cover of the crash pad.
3.
Remove the upper cover of the glove box.
4.

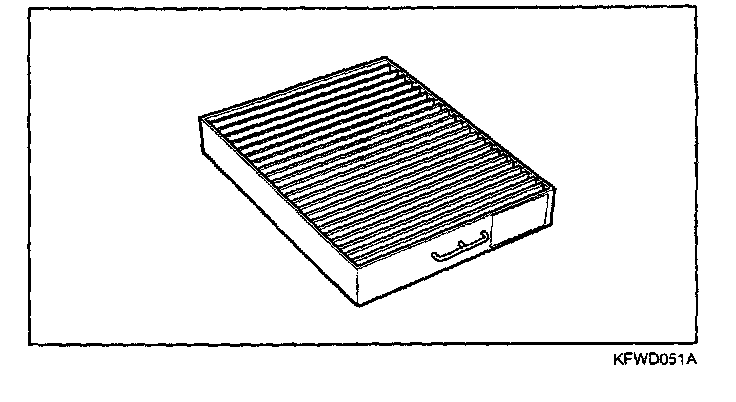

Remove the air filter cover and the air filter.
CAUTION: When driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.
