Body and Frame - Dimensions

Group: BODY

Number: 01-60-002

Date: APRIL, 2001

Model: 2001 SANTA FE

Subject:
2001 SANTA FE BODY DIMENSIONS

DESCRIPTION:

This bulletin provides body dimensions for the 2001 Santa Fe.

1. All measurements should be taken with a tracking gauge.

2. When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

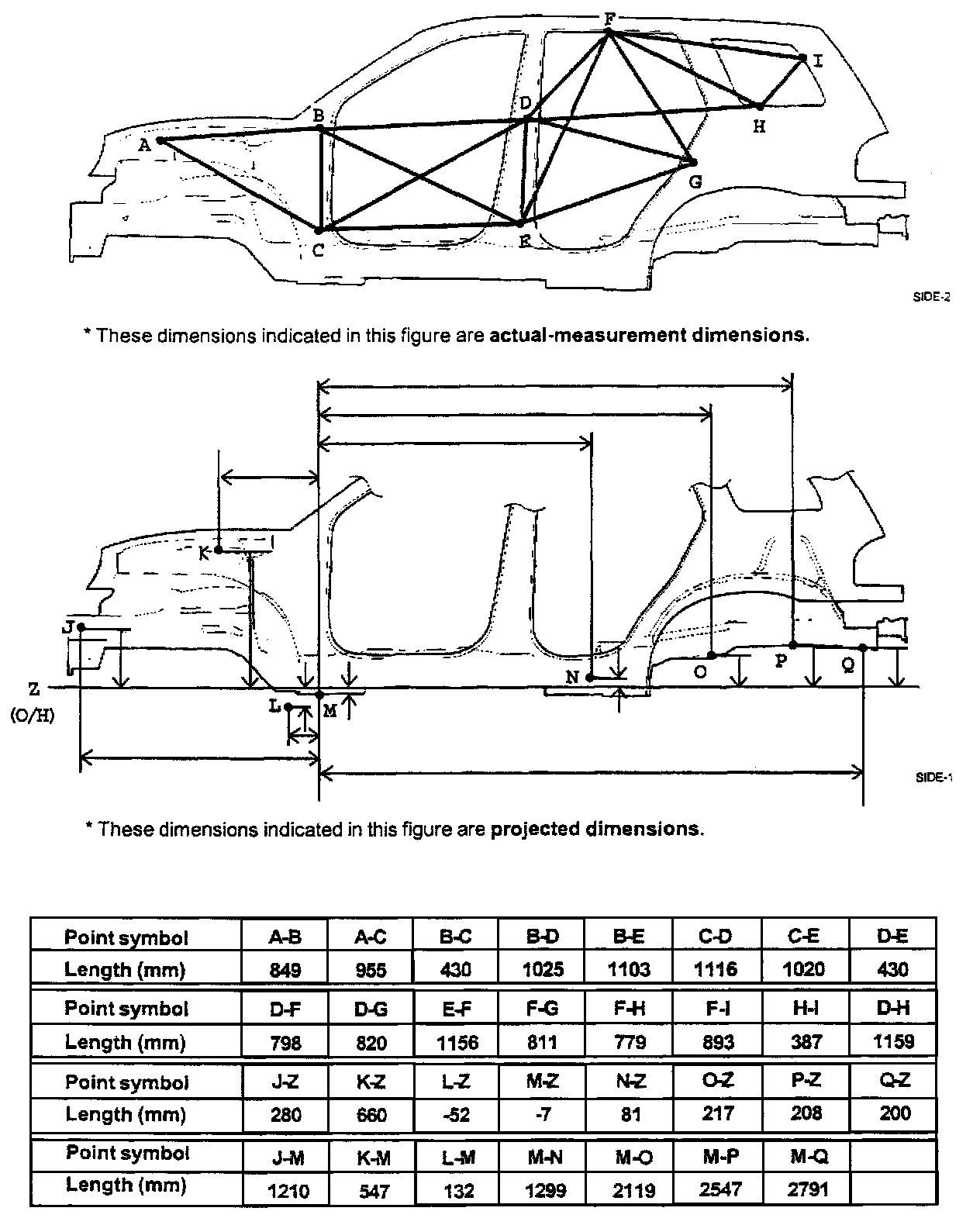

3. For measuring dimensions, both projected dimensions and actual-measurement dimensions are used in this bulletin.

MEASUREMENT METHOD

PROJECTED DIMENSIONS

1. These are the dimensions measured when the measurement points are projected into the reference plane, and are the reference dimensions used for body alterations.

2. If the length of the tracking gauge probes are adjustable, make the measurement by lengthening one probe by the amount equivalent to the difference in height of the two surfaces.

ACTUAL-MEASUREMENT DIMENSIONS

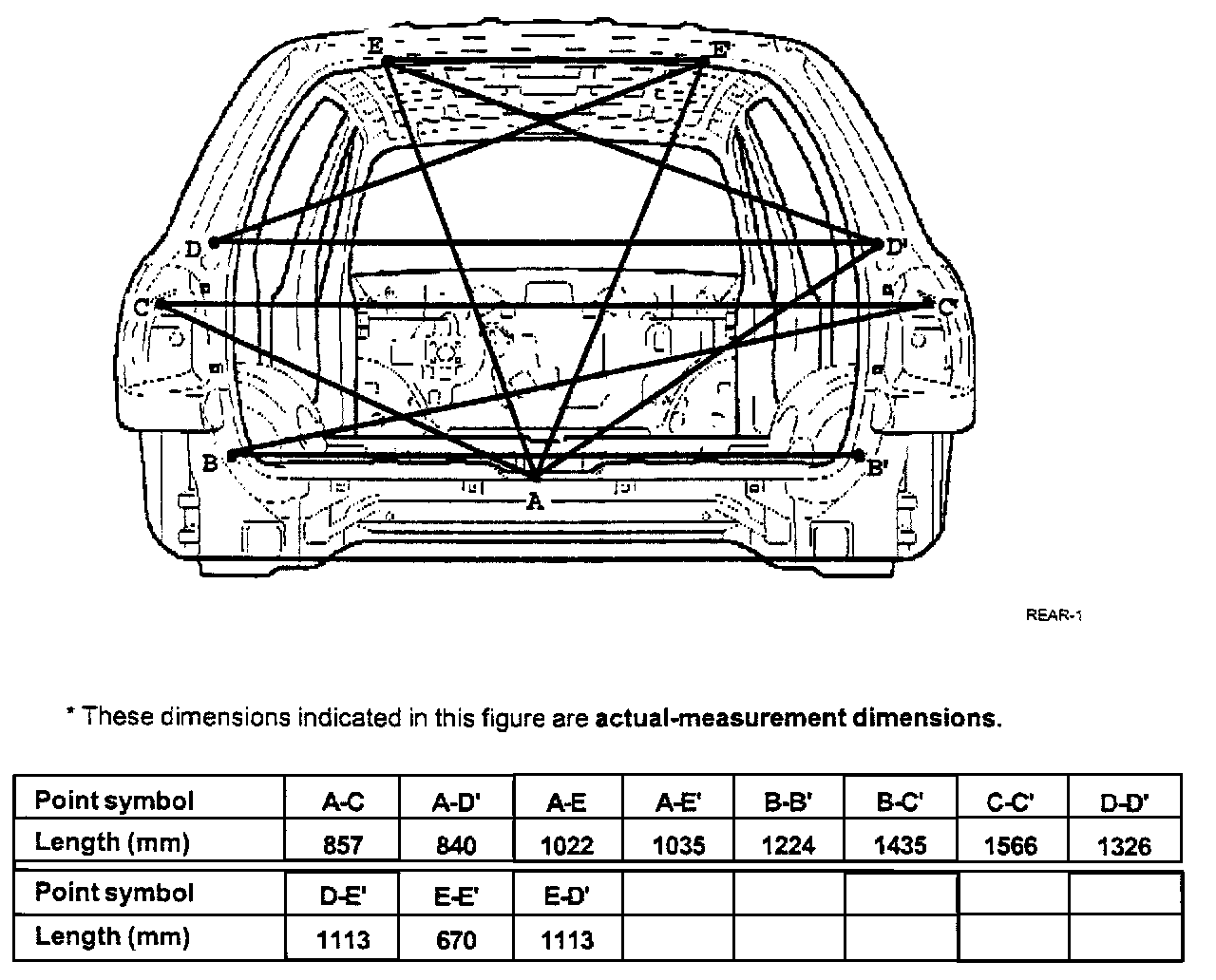

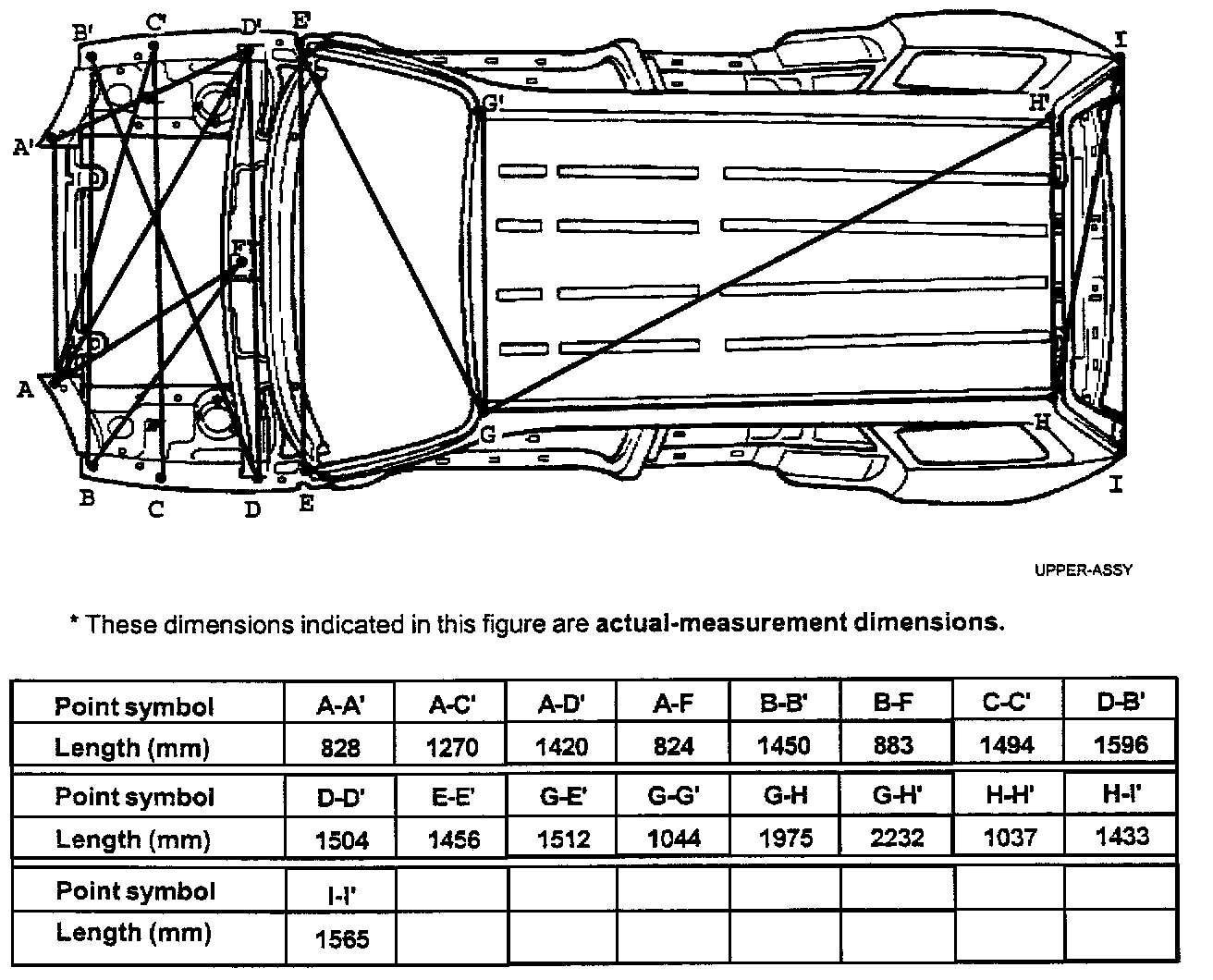

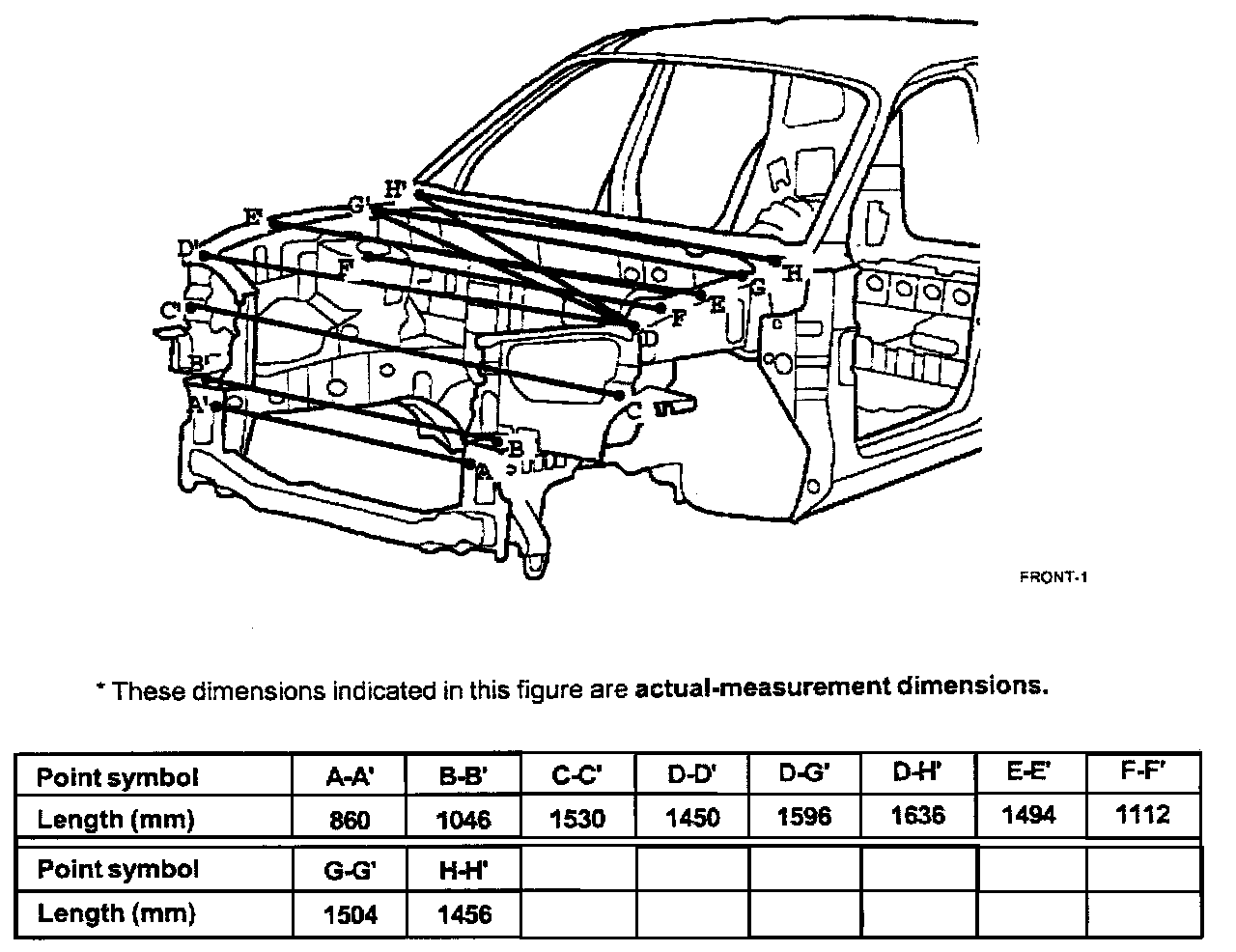

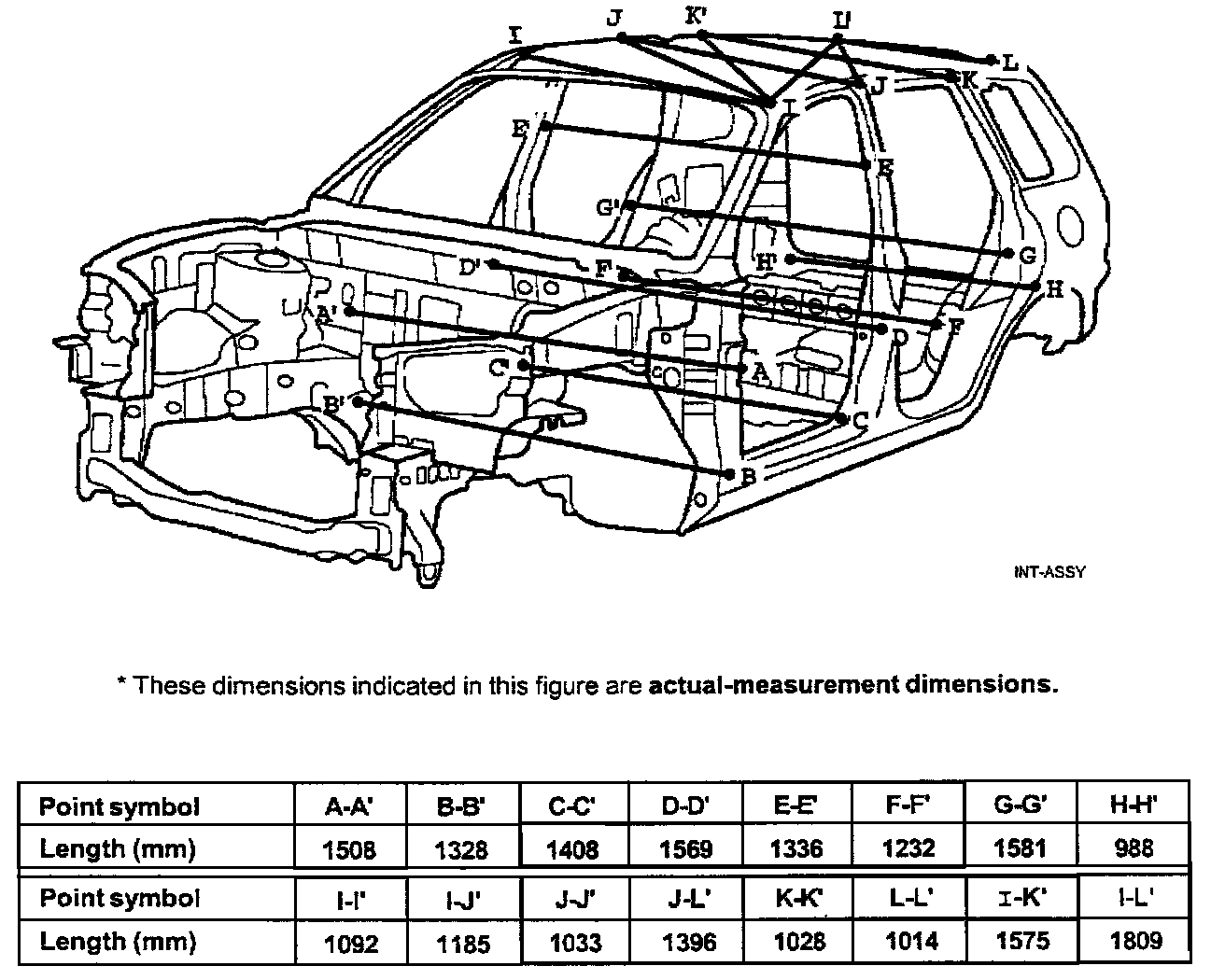

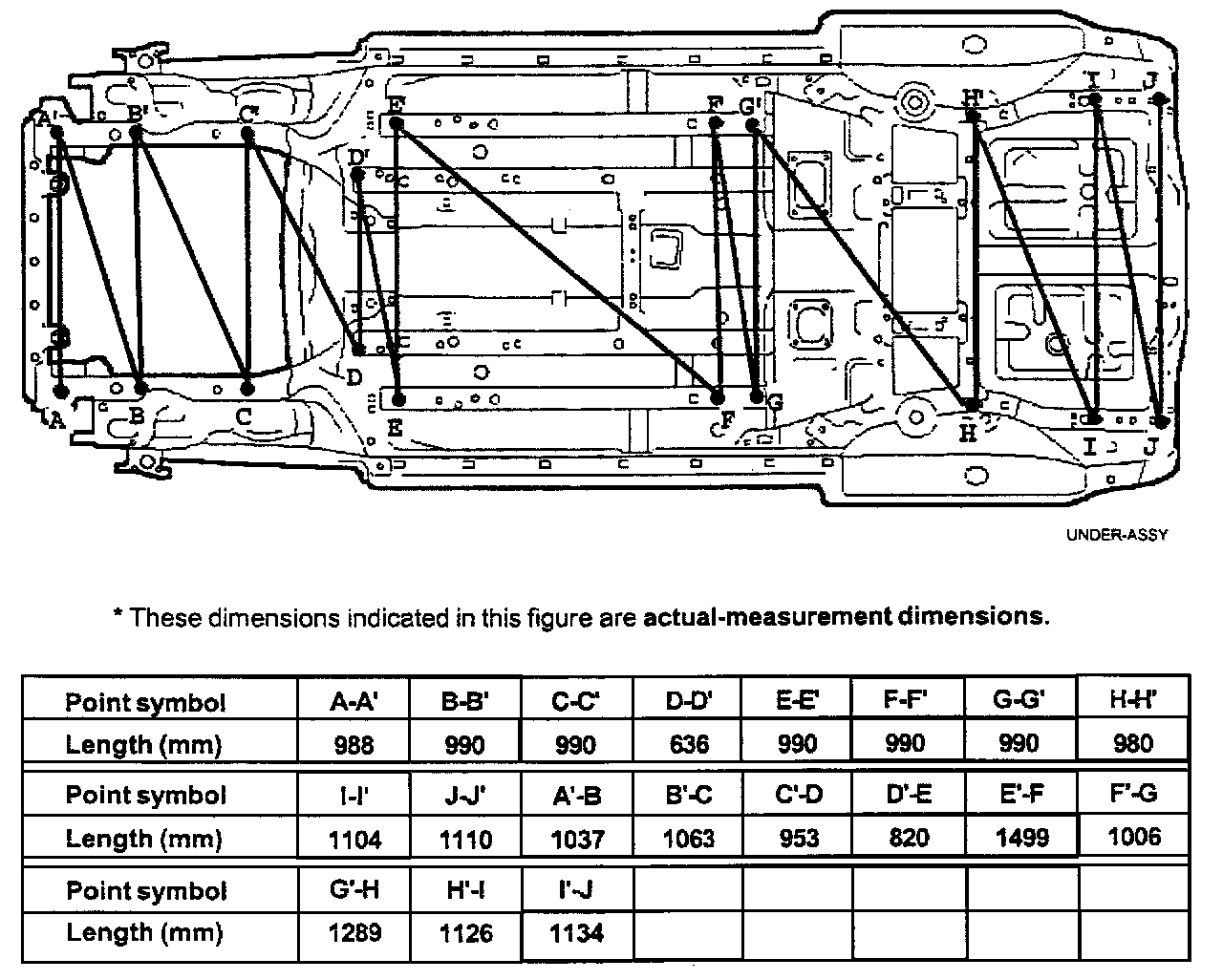

1. These dimensions indicate the actual linear distance between measurement points, and are the reference dimensions for use if a tracking gauge is used for measurement.

2. Measure by first adjusting both probes to the same length (A=A').

NOTE:
Check the probes and gauge itself to make sure there is no free play.

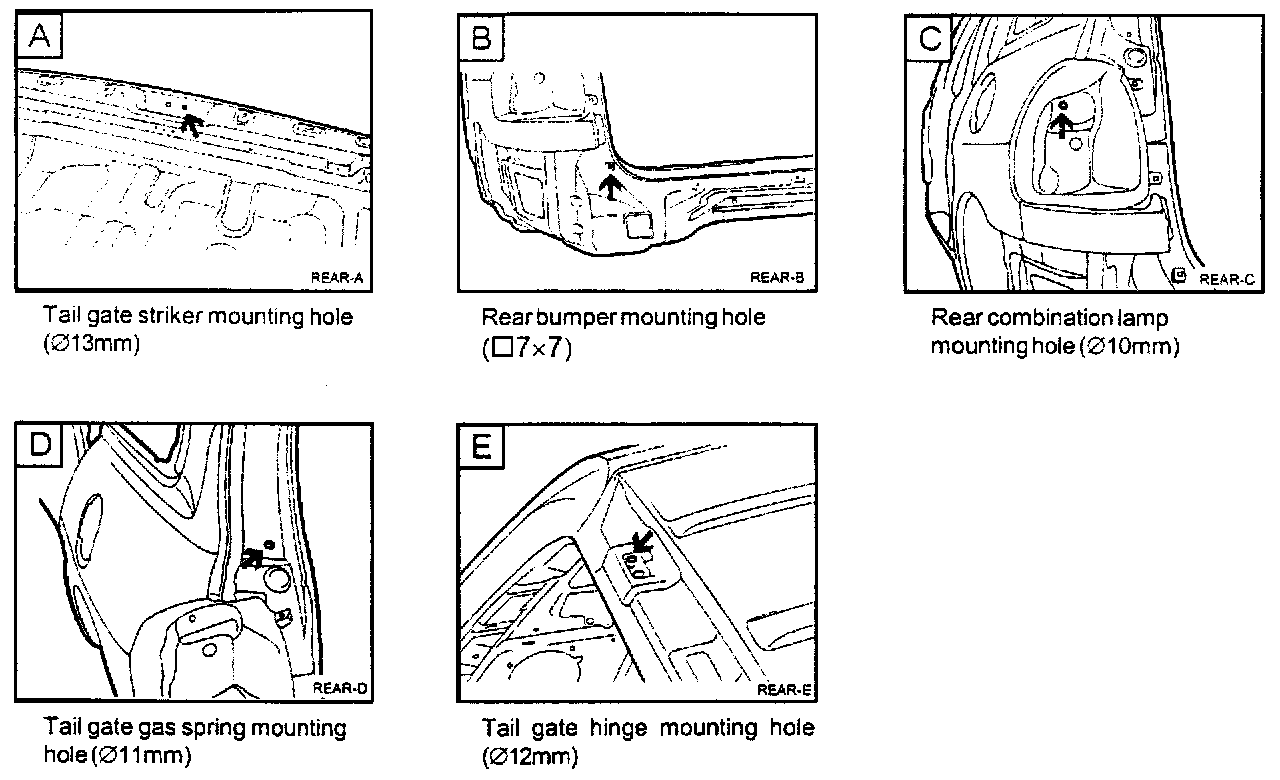

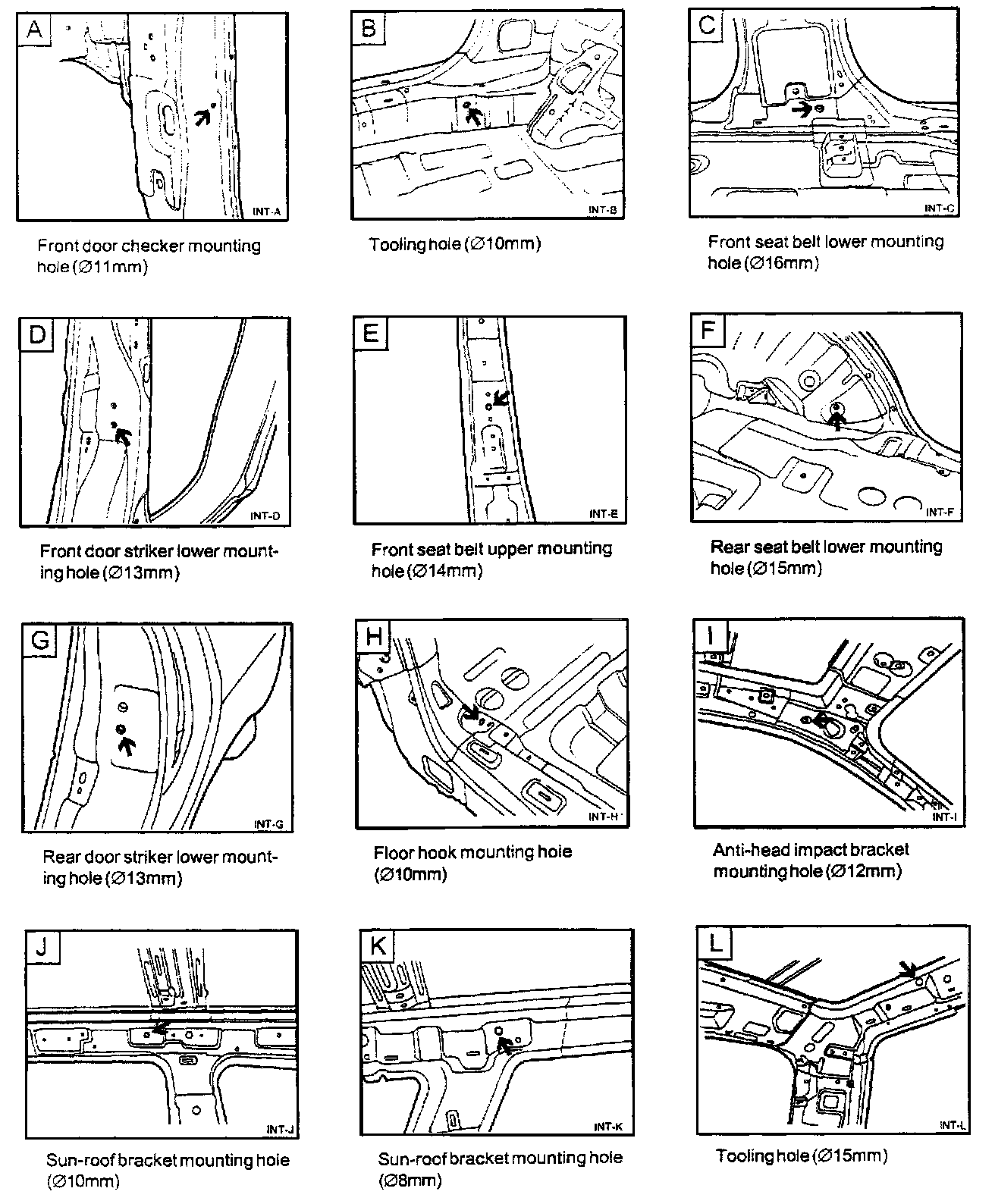

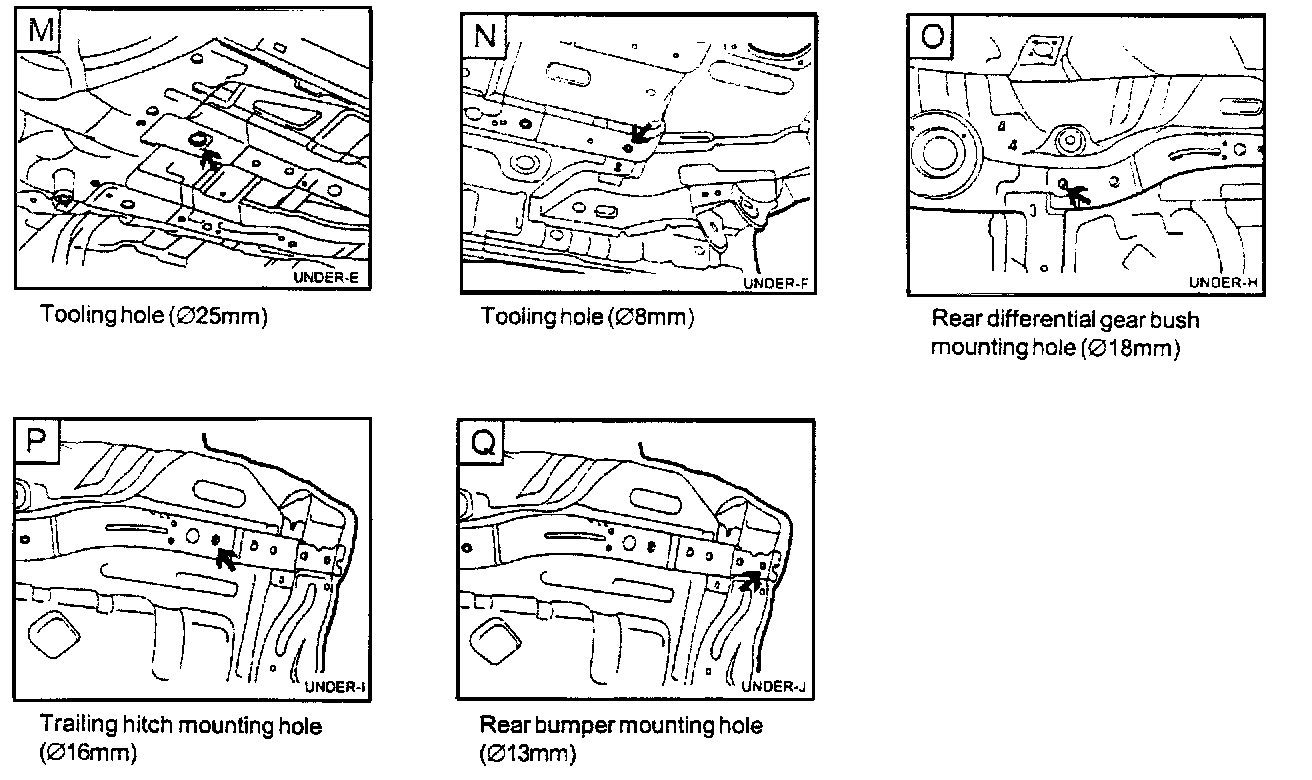

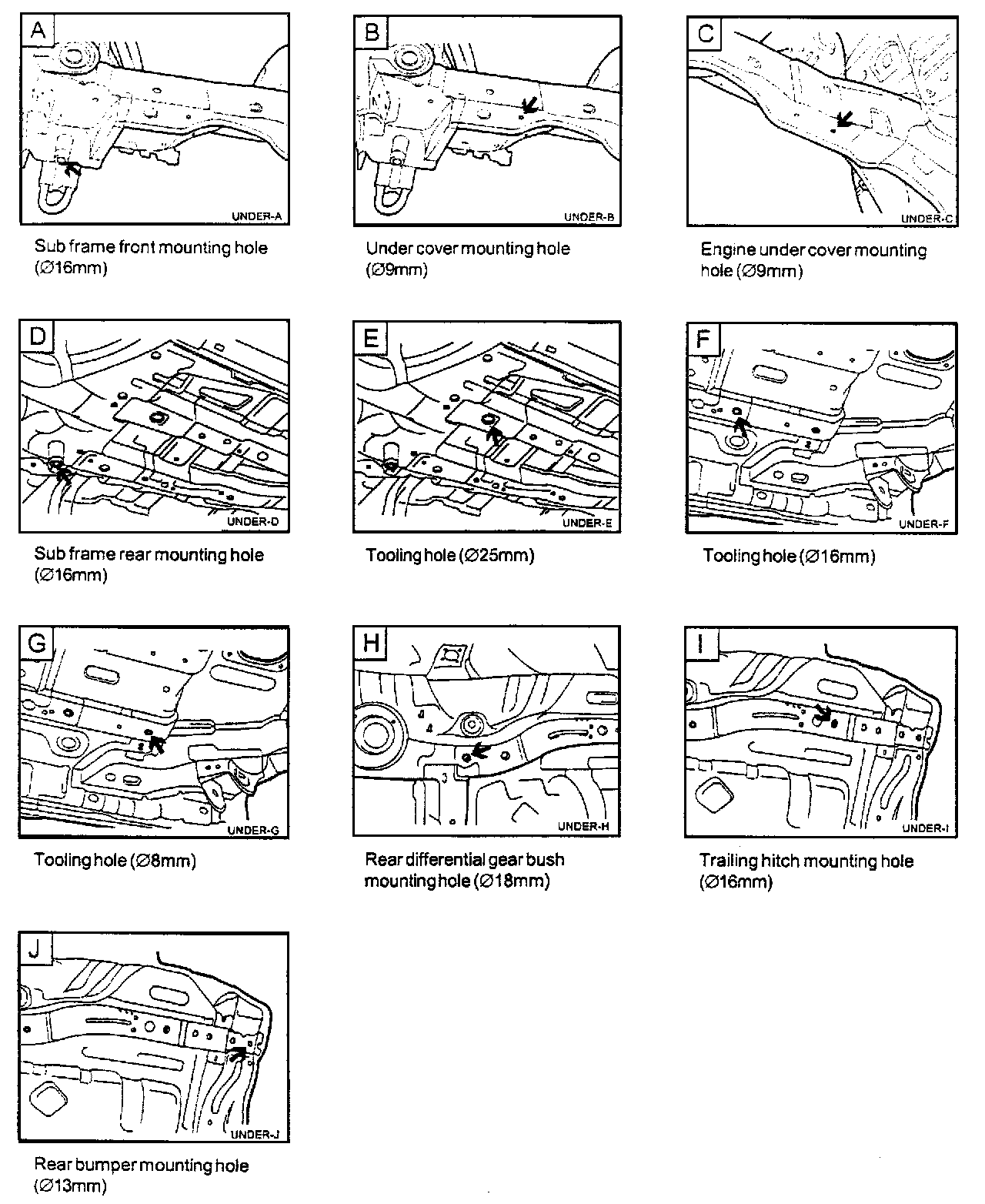

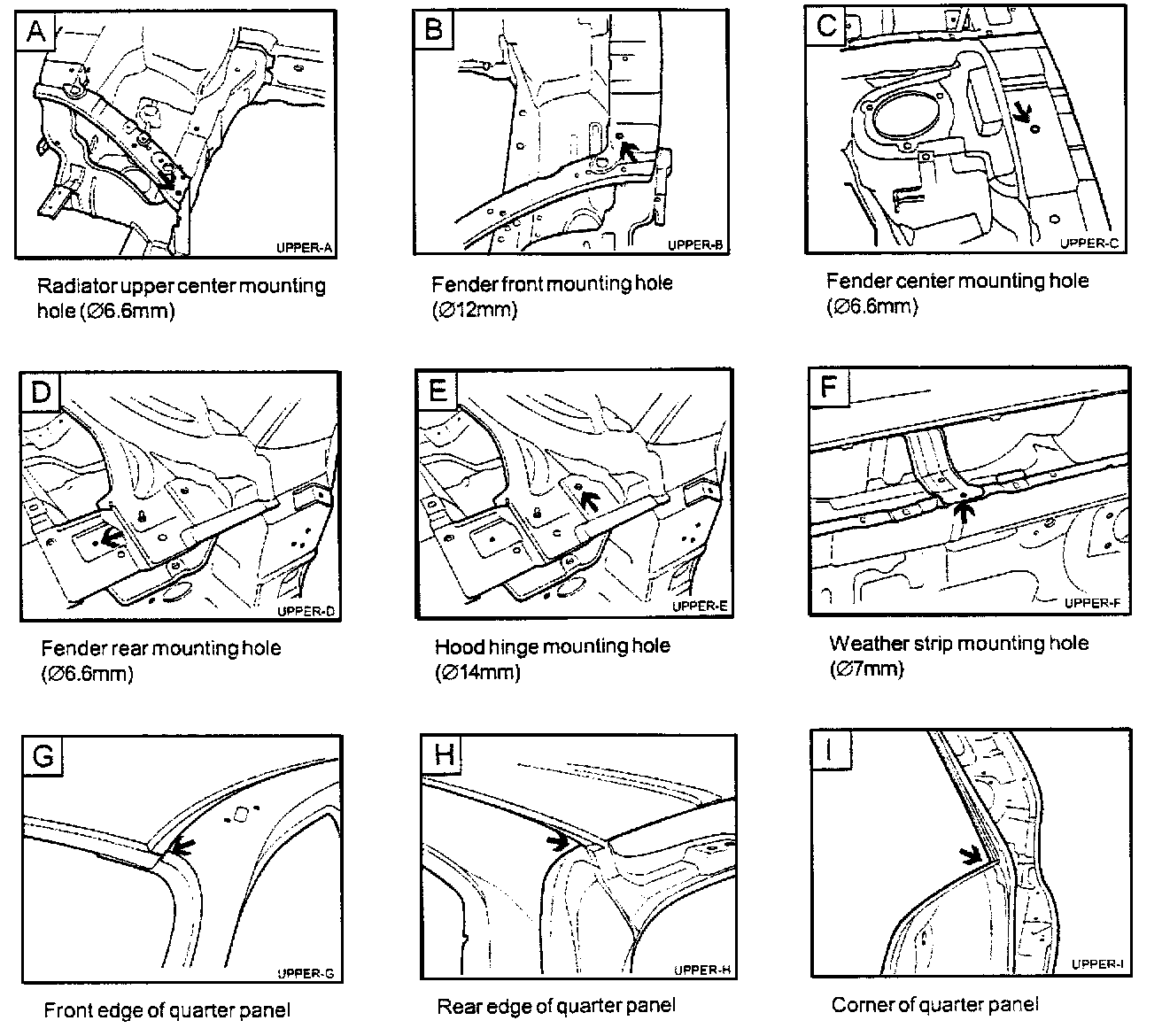

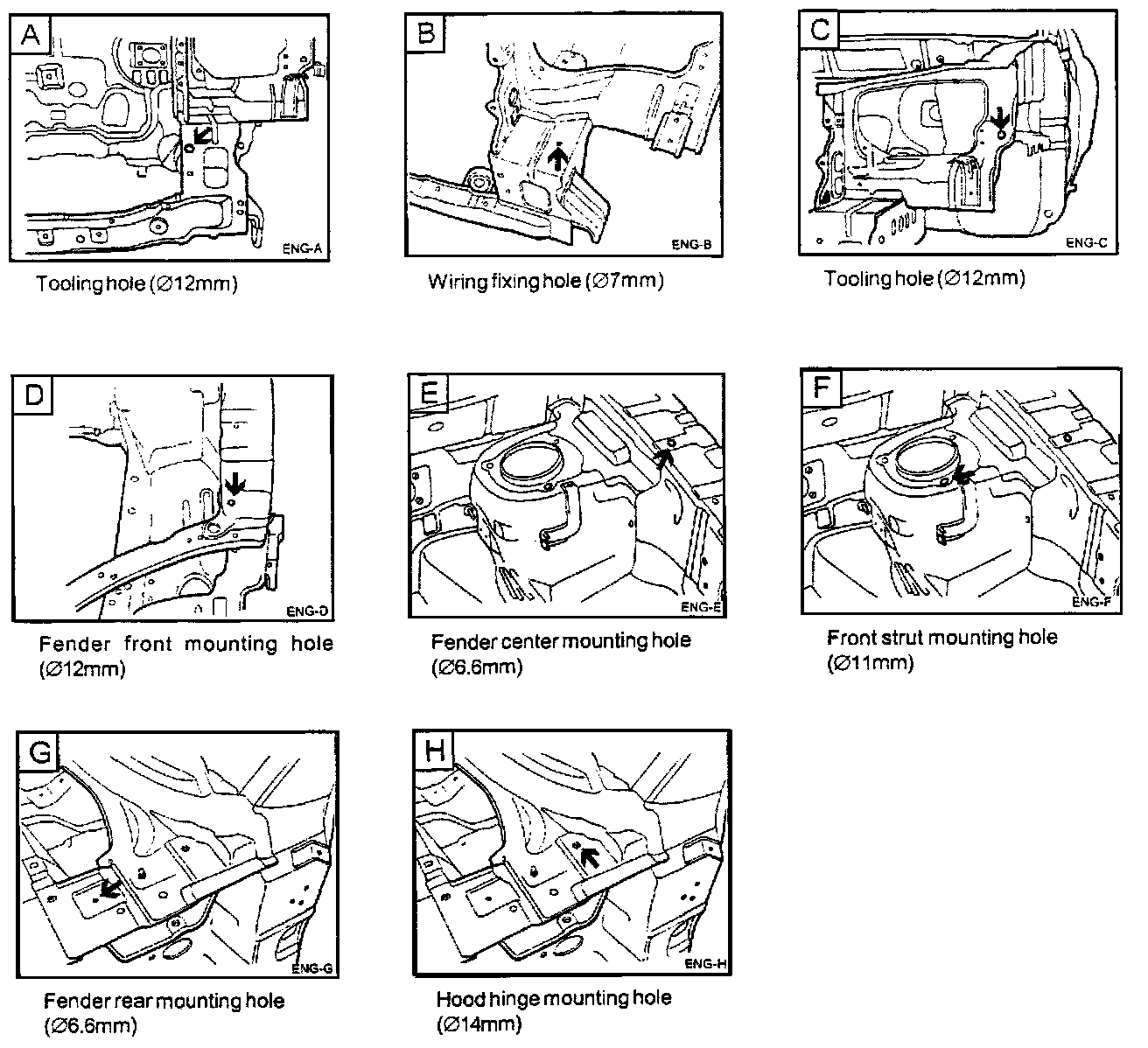

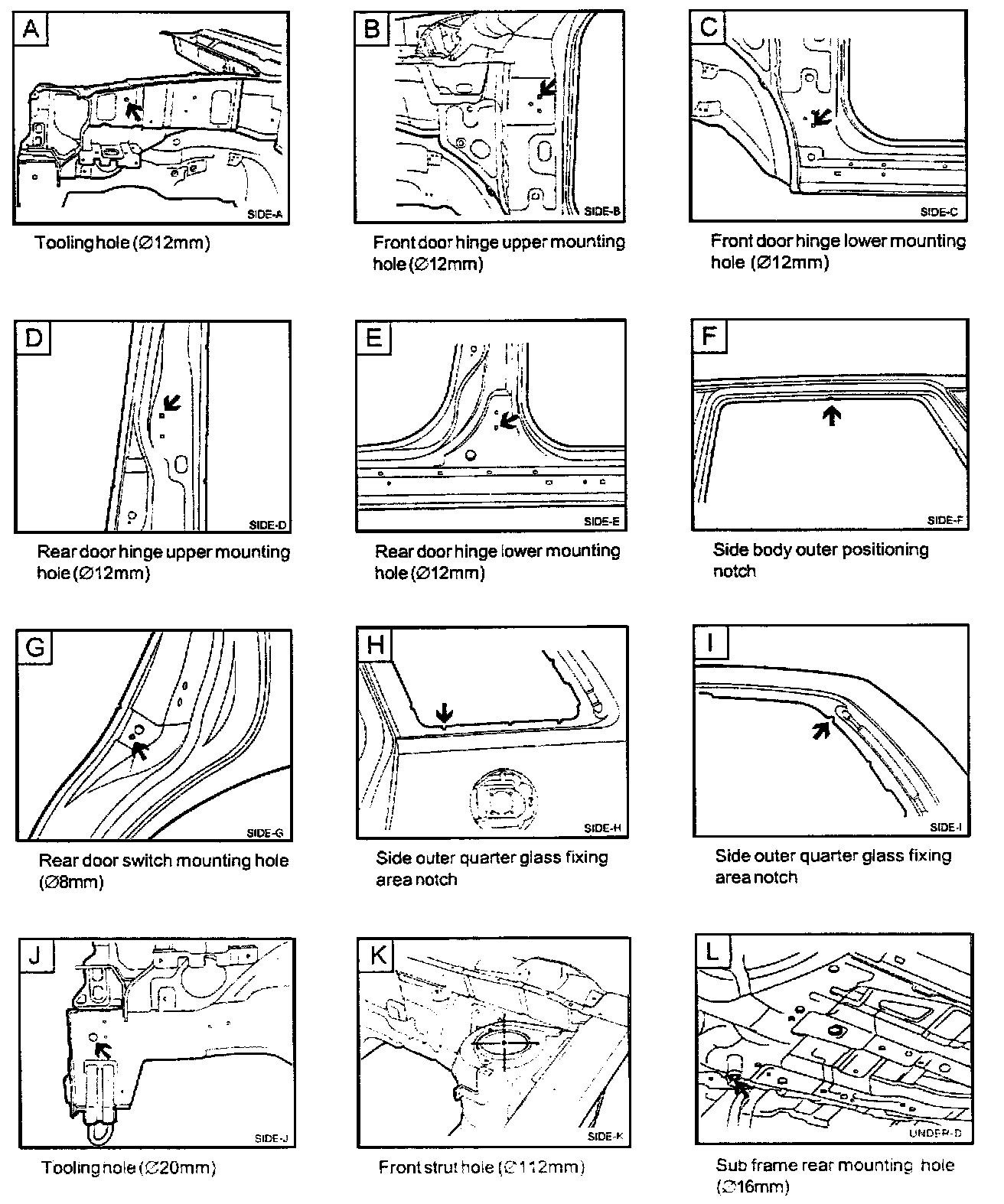

MEASUREMENT POINT
