Paint - Color Codes and Applications
Group: PAINTNumber: 00-99-002-1
Date: NOVEMBER, 2000
Model: ALL 2001 MODELS
Subject:
2001 MY EXTERIOR COLOR CODES AND APPLICATIONS
This TSB has been updated to add a new two tone color "RZ" and correct the two tone color "LL". Refer to the two tone Santa Fe color chart.
DESCRIPTION:
This TSB provides information on both new and carry over 2001 model year exterior colors. It includes paint codes, vehicle applications and paint manufacturers' stock numbers for the Accent, Elantra, Santa Fe, Sonata, Tiburon and XG300.

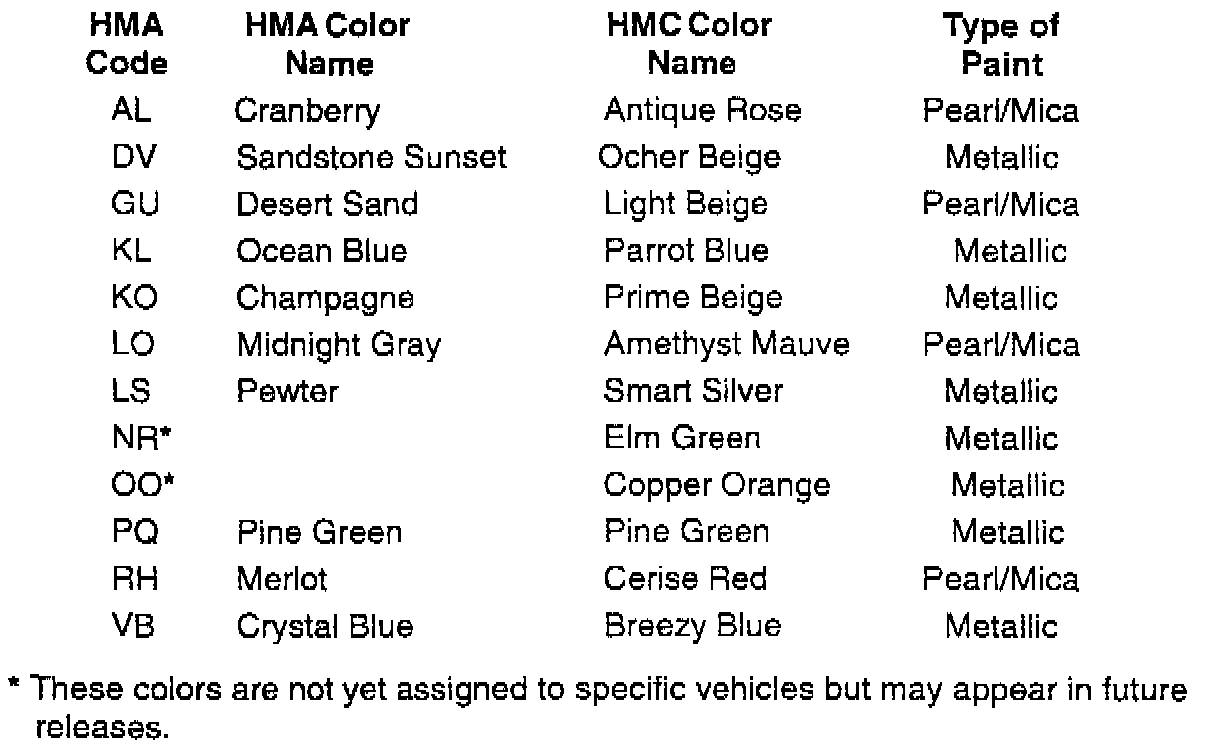

Twelve (12) new auto body colors have been added for 2001. They are as shown.
Three (3) new cladding colors have been added for 2001. They are as shown.
Refer tot he attached tables when ordering refinishing materials from your local automotive paint dealer.

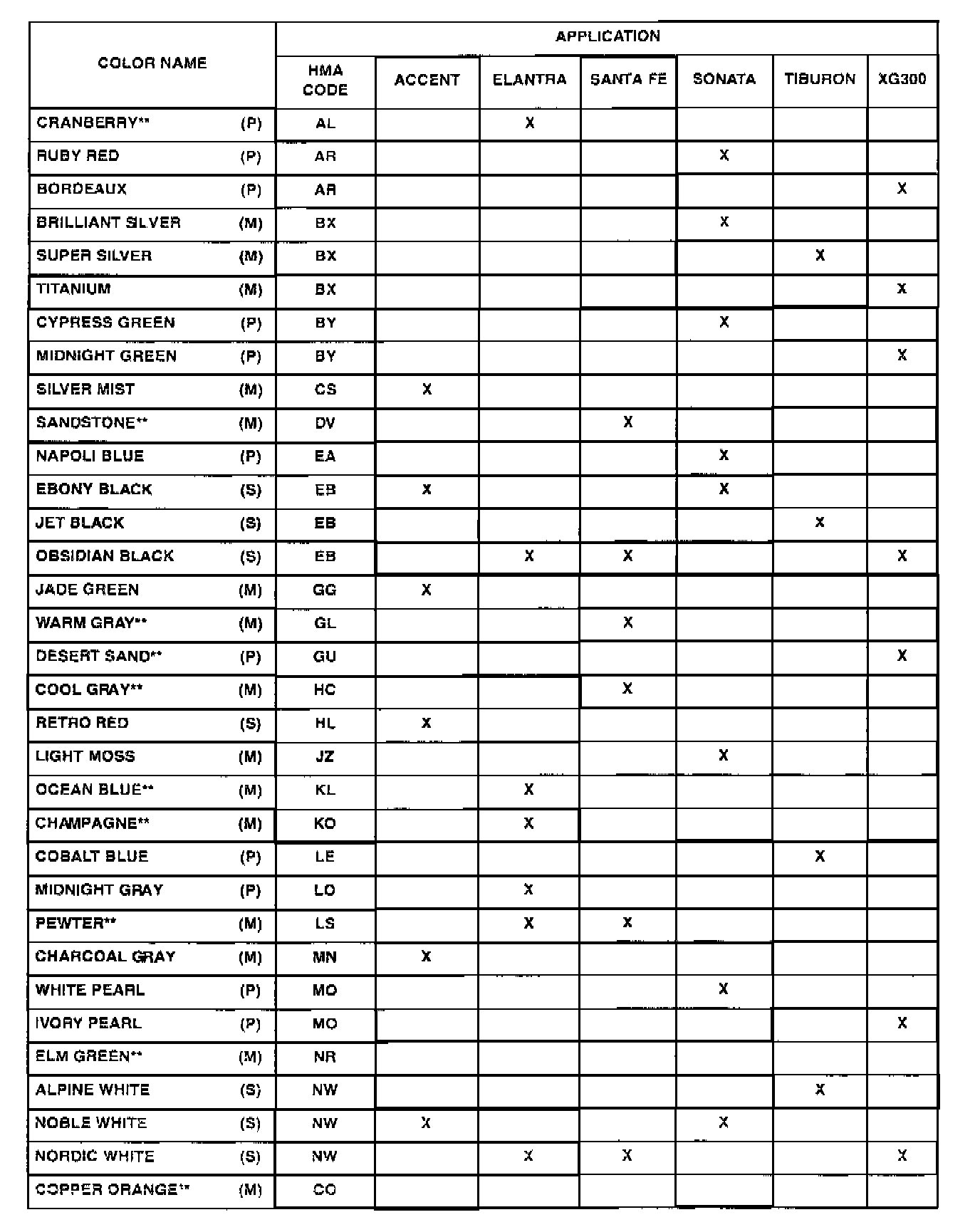

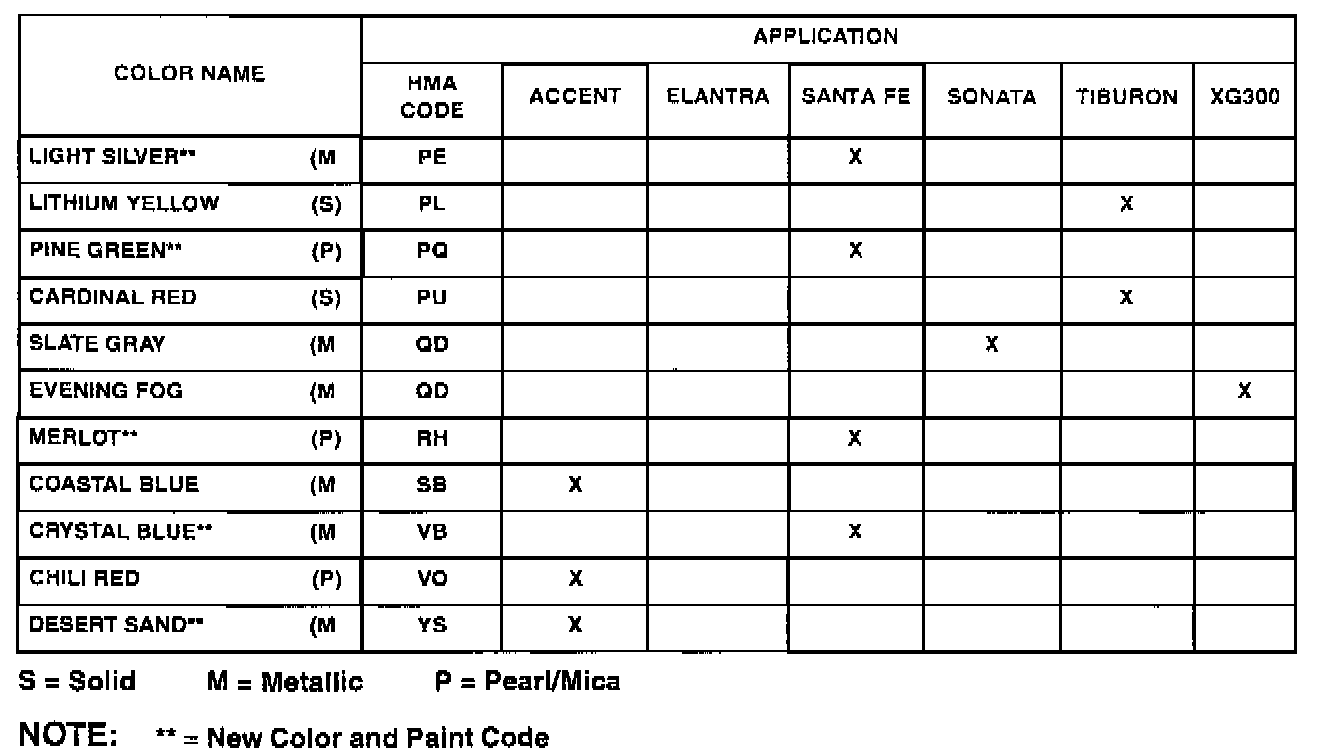

TABLE I: 2001 HYUNDAI EXTERIOR COLOR CODES AND APPLICATIONS

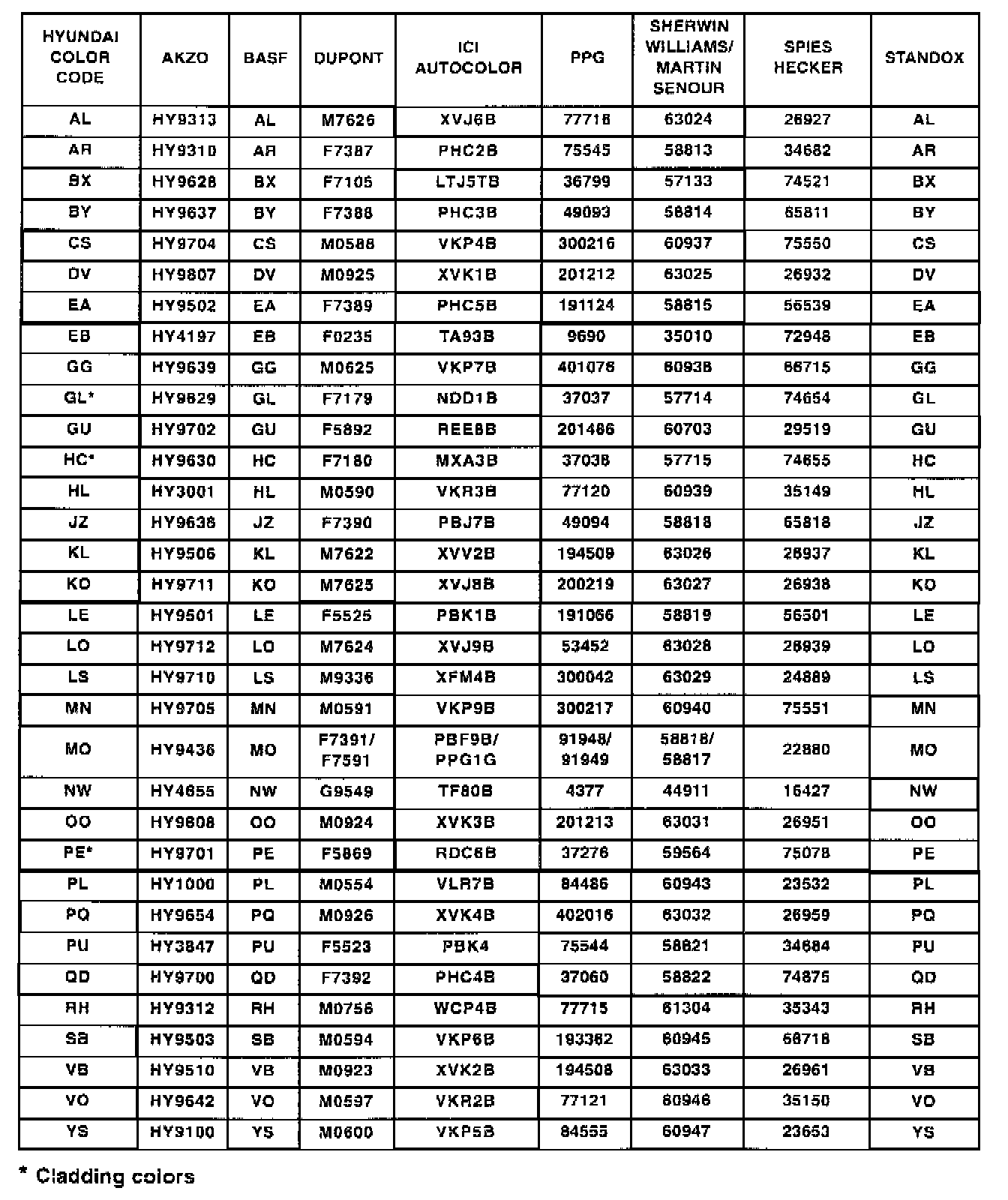

TABLE II: REFINISH MANUFACTURERS' CODE NUMBERS FOR EXTERIOR COLOR.
TWO TONE SANTA FE COMBINATION COLORS
