Service Manual Correction - ABS Schematic

Group
50 - CHASSIS

Number
02-50-009

Date
07-2002

Model
Santa Fe 2001 - 2002

Subject
2001-02 SANTA FE SHOP MANUAL CORRECTION - ABS ELECTRICAL SCHEMATIC DIAGRAM

DESCRIPTION:

The 2001 MY and 2002 MY Santa Fe Shop Manuals and Electrical Troubleshooting Manuals (BTM) provide incorrect "G" sensor information for the 2WD (non 4WD) Santa Fe vehicles equipped with ABS.

The correct information is:

^ "G" sensor - only 4WD Santa Fe with ABS

^ No "G" sensor - 2WD Santa Fe with ABS

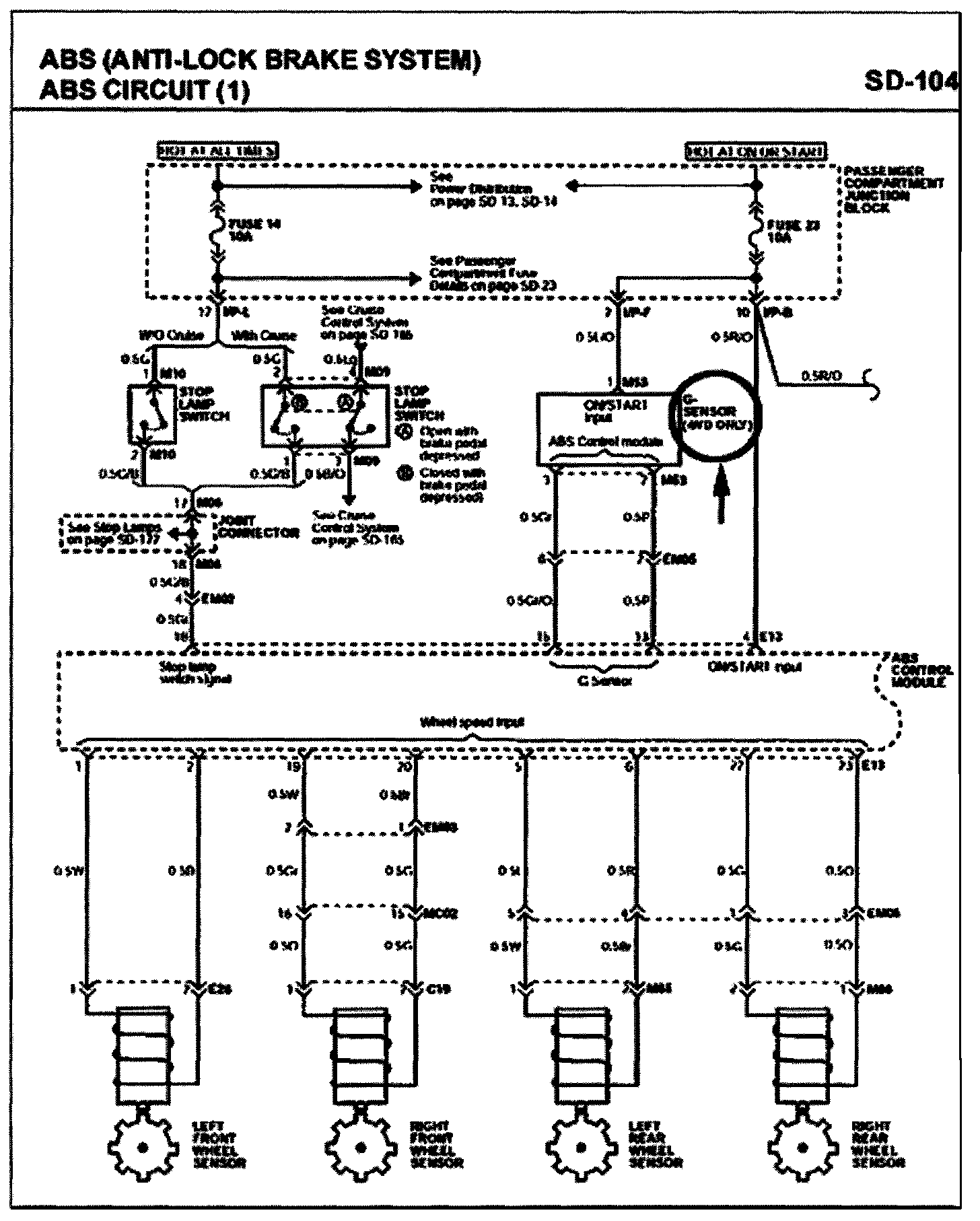

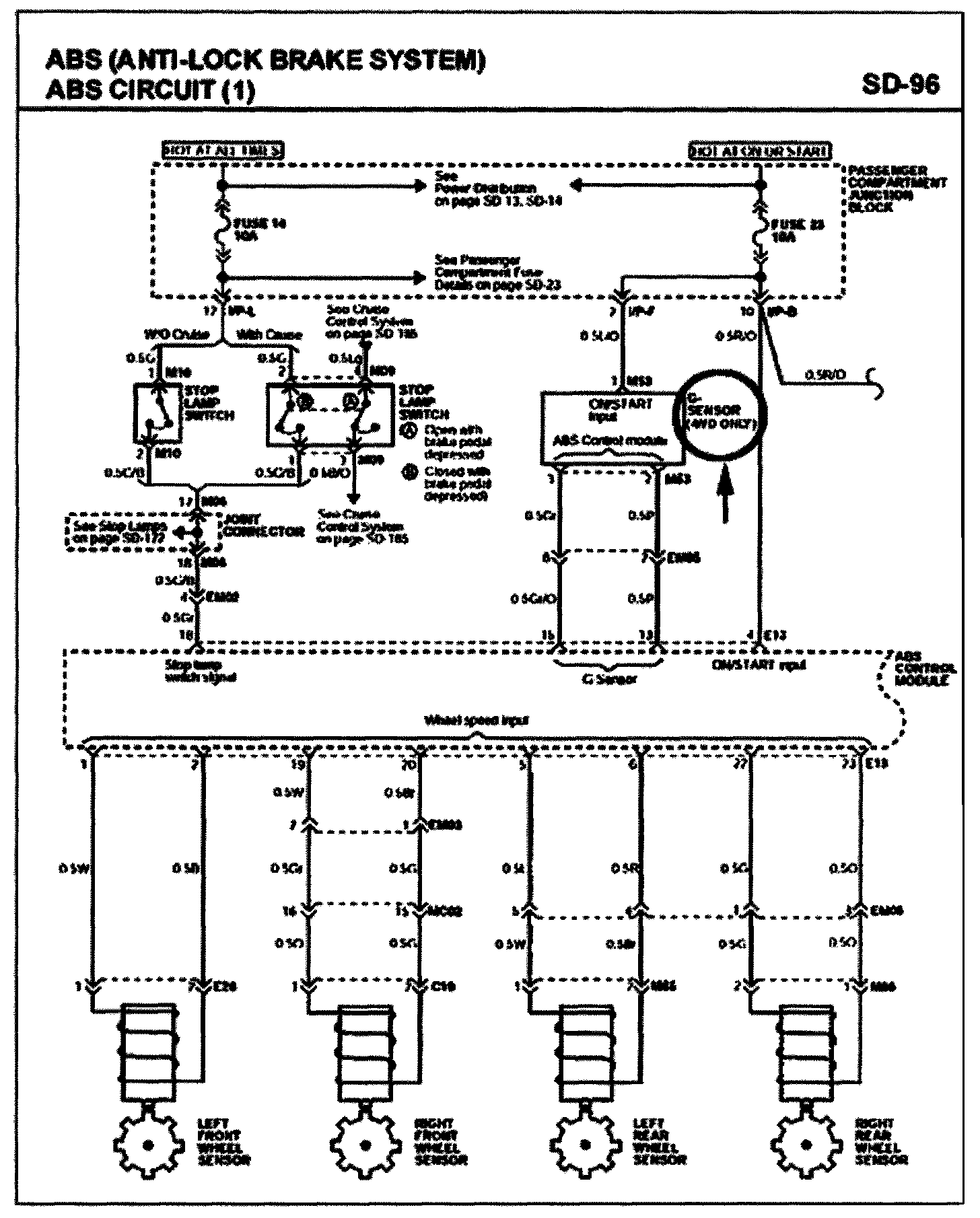

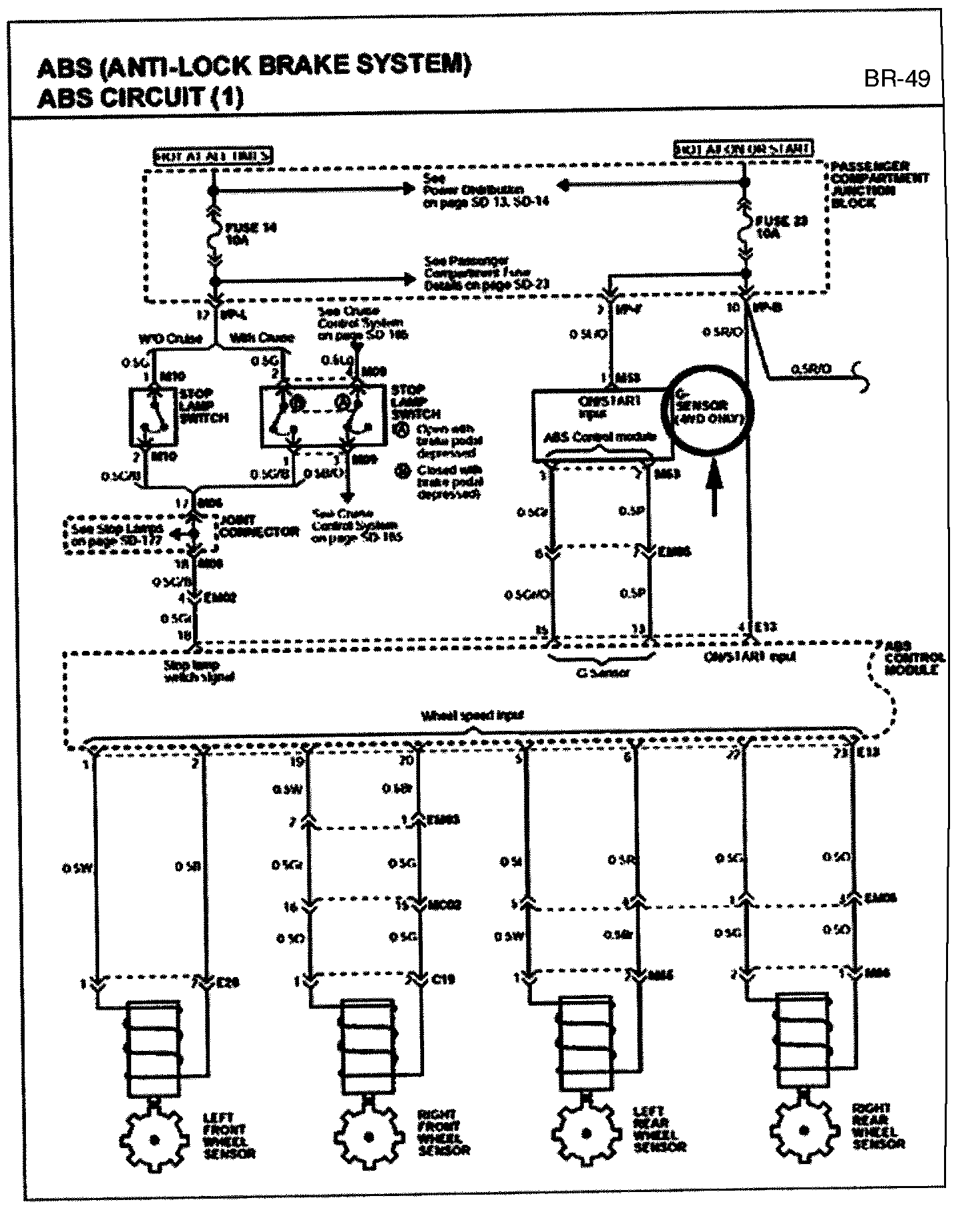

Please see the correct schematics shown.

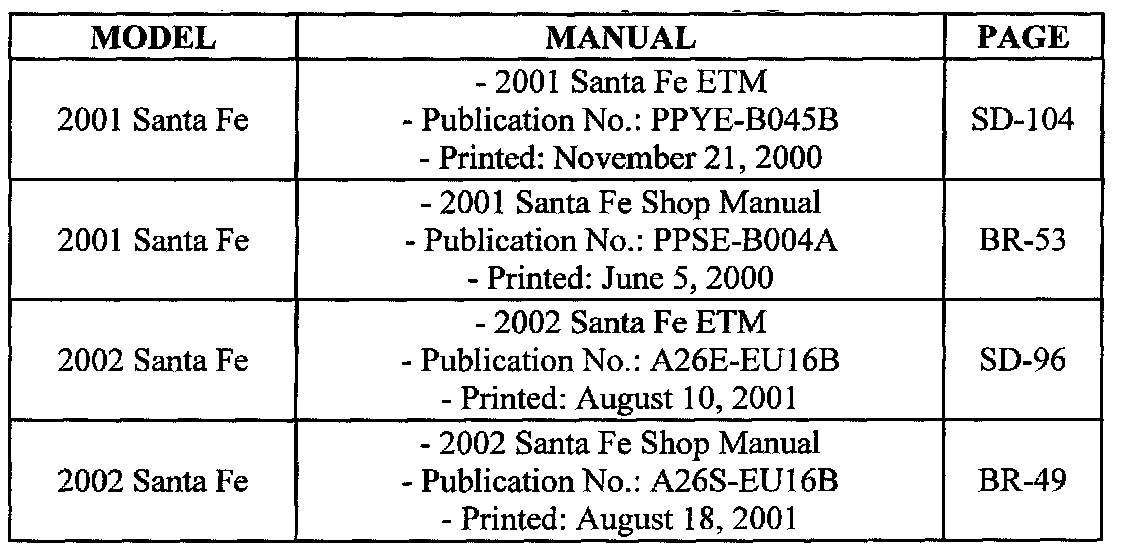

For future reference, write this TSB number on top of the pages in the table shown.
