Downloading Reprogramming Software

1. Reprogramming software pack 09-15-00 is required for this campaign.





2. If you do not already have this software, log on to the Service Technology Web Site (www.hmaservice.com) and click on "Hi Scan Software Updates."

NOTE:
This software can be downloaded to your HDS or to a PC.





3. Click on "Latest Software"





4. Scroll down to "Reprogramming Software Pack 09-15-00". This software package contains four separate programs. The revised TCM program for the 2001 Sonata that is required for Campaign 41 is included in this group.





5. Right click on "Reprogramming Software Pack 09-15-00" and then click on "Open".





6. If you are doing this procedure from HDS, select "Run this program from its current location" and click "OK"





7. A warning message may appear. Just click "Yes" to continue.

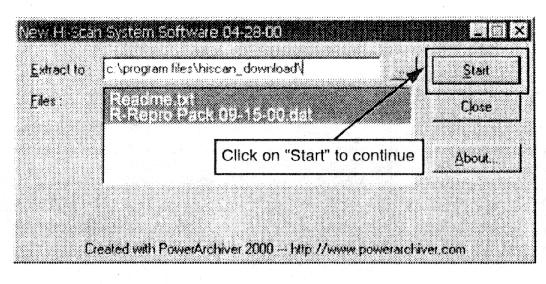

8. After about 10 minutes of downloading, this window will pop up. Just click "Start" and the new Hi-Scan Software will be automatically placed in the proper directory.

9. To update the reprogramming card in the Hi-Scan refer to TSB 00-00-001 for instructions.

NOTE:
When the reprogramming card is being updated in the Hi-Scan, remove the "SOL" and "INFO" cards and only leave the "Reprogramming card installed.
