Electronic Throttle Control Module



Electrical diagram SD-83 has been updated by TSB Number 01-36-002

Electronic Throttle Control System Electrical Diagrams

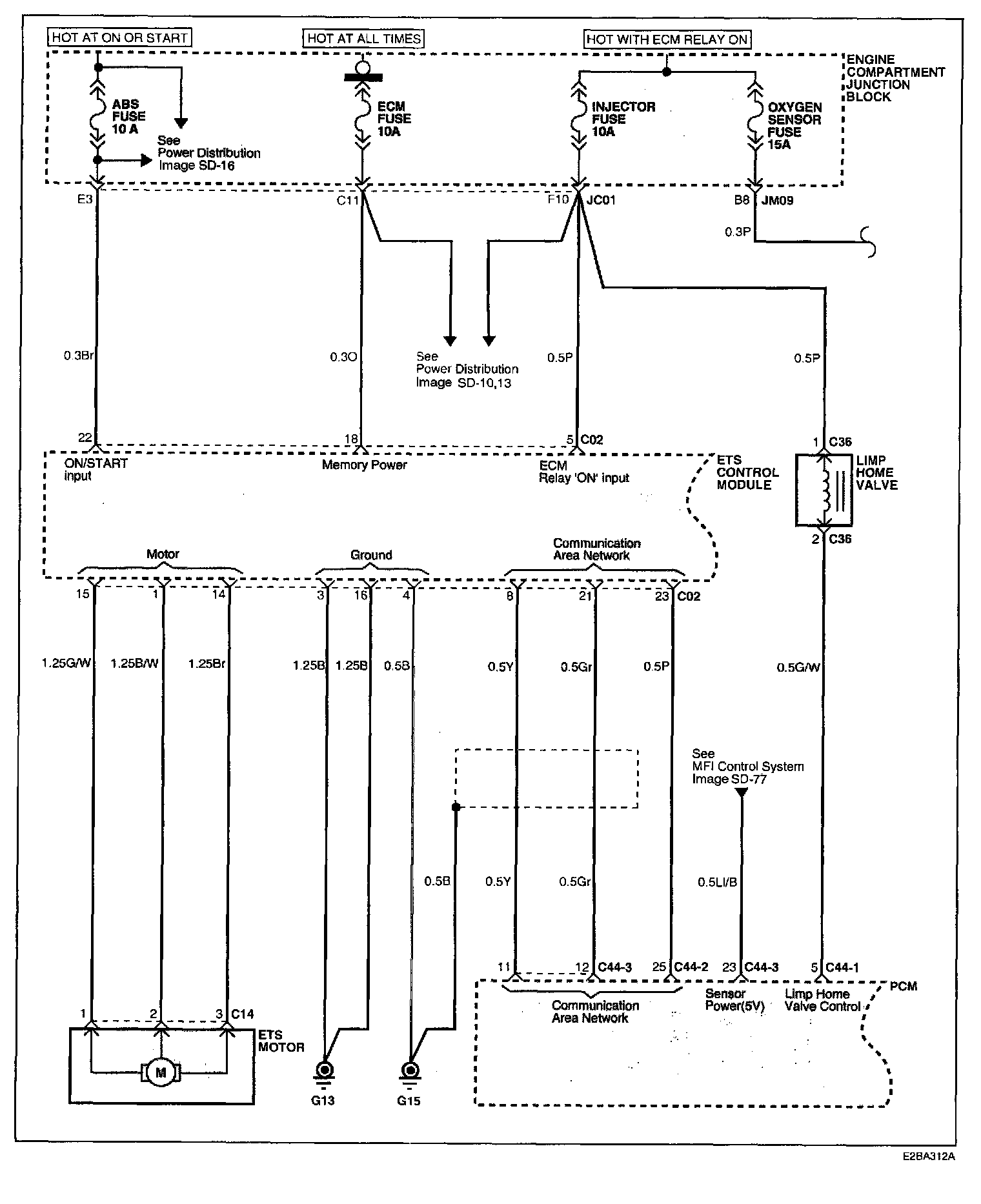

Image SD-82 - Electronic Throttle Control System (1):

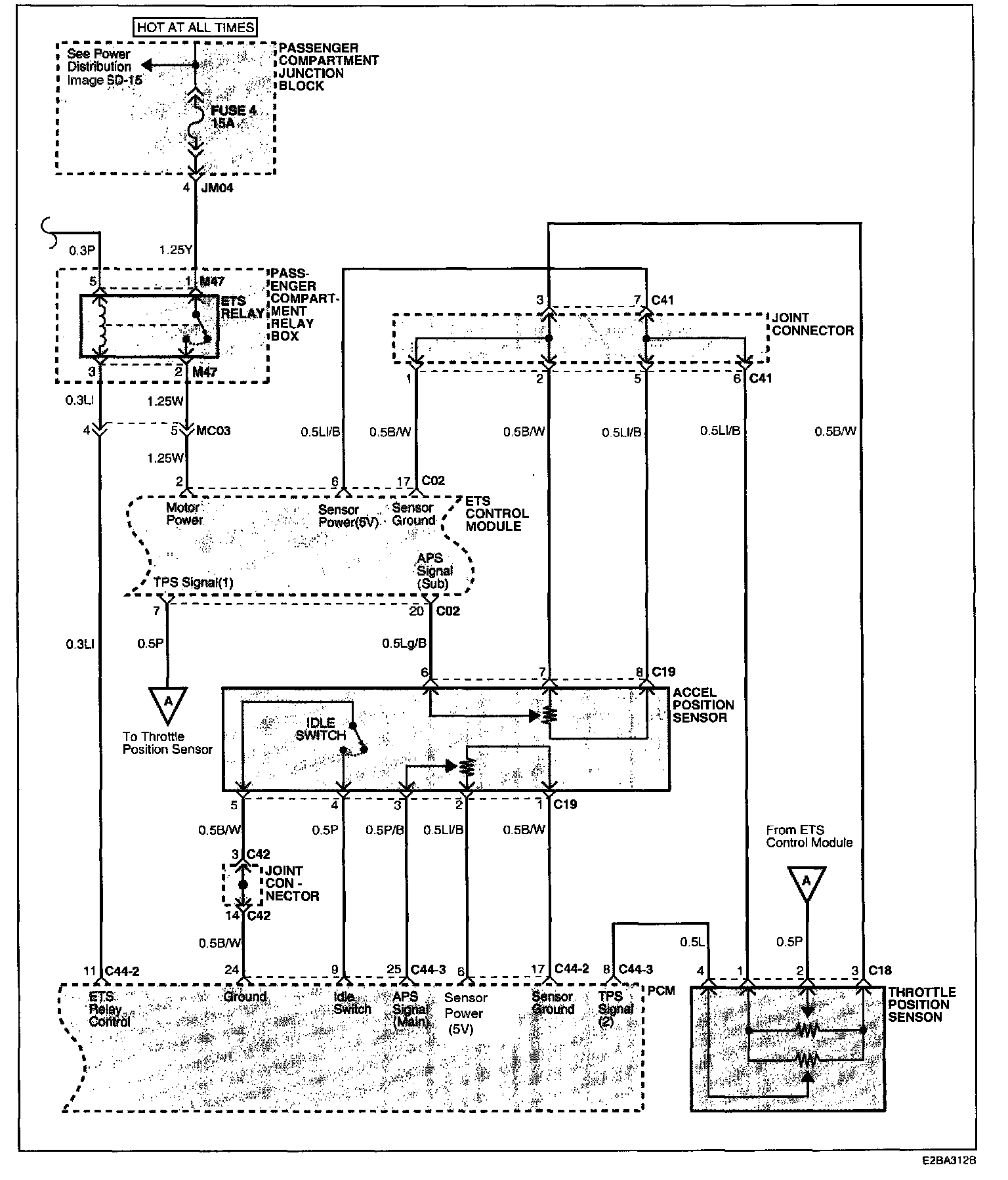

Image SD-83 - Electronic Throttle Control System (2):

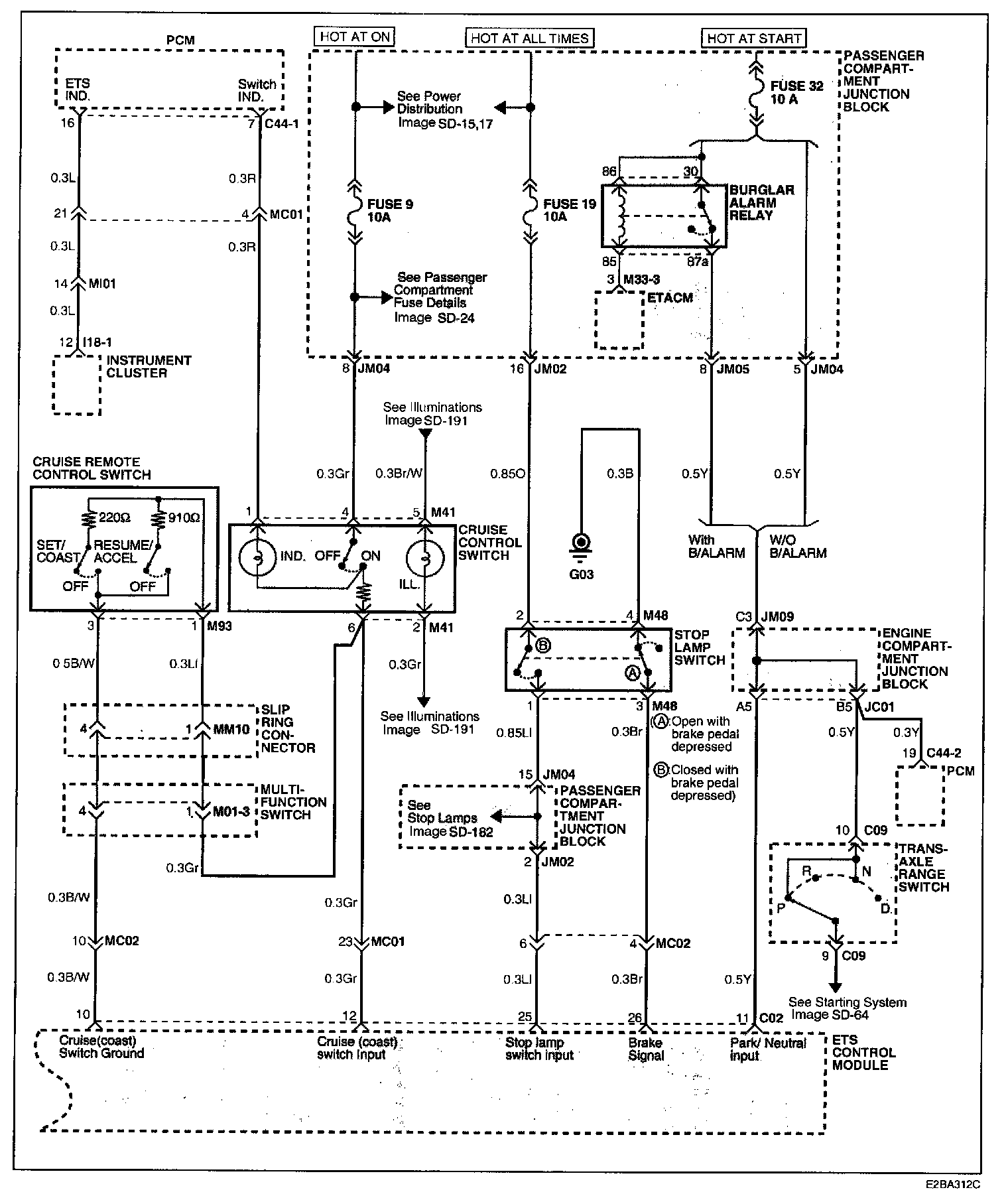

Image SD-84 - Electronic Throttle Control System (3):

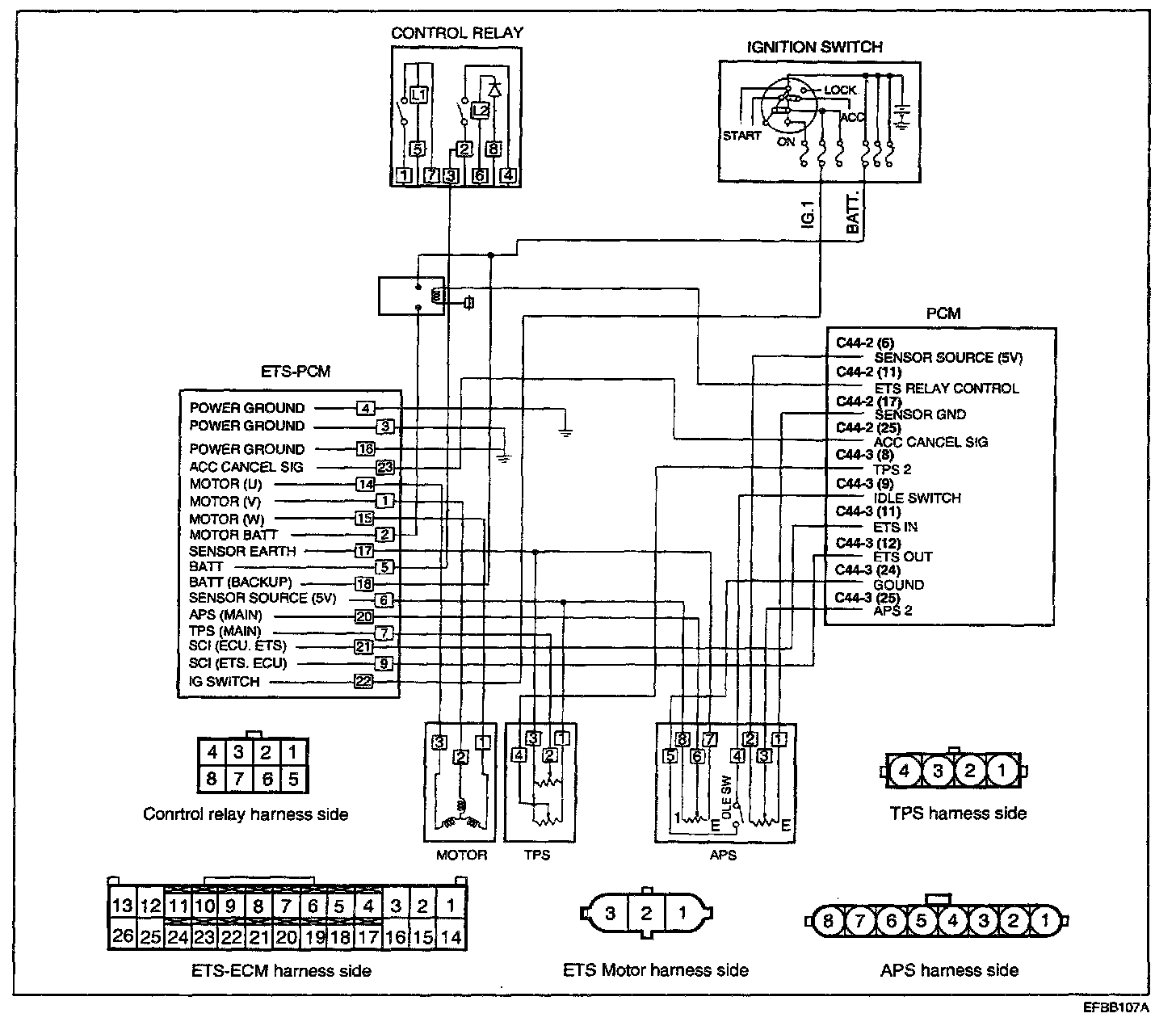

Circuit Diagram:
