Electrical Diagrams

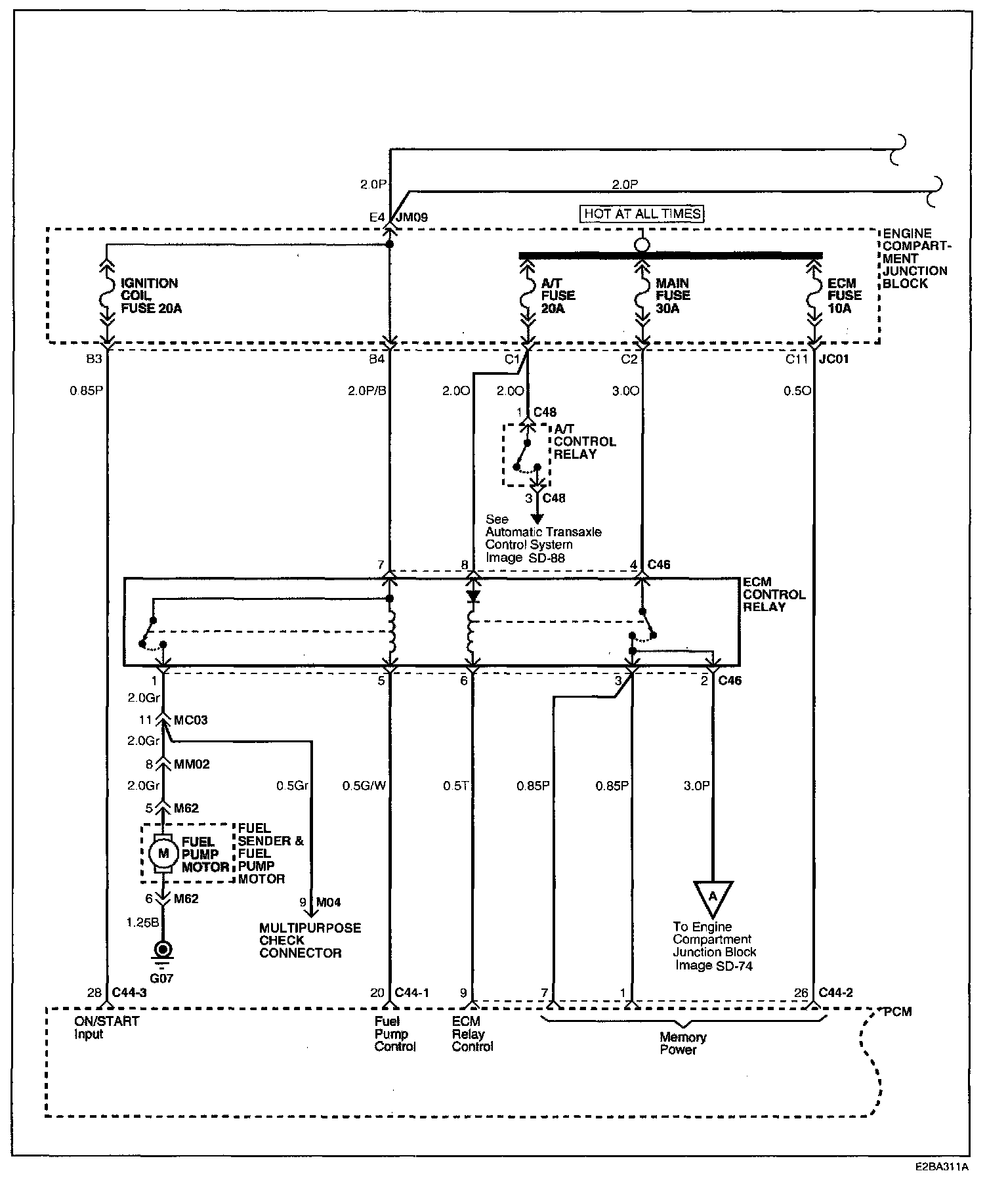

Image SD-72 - MFI Control System (1):

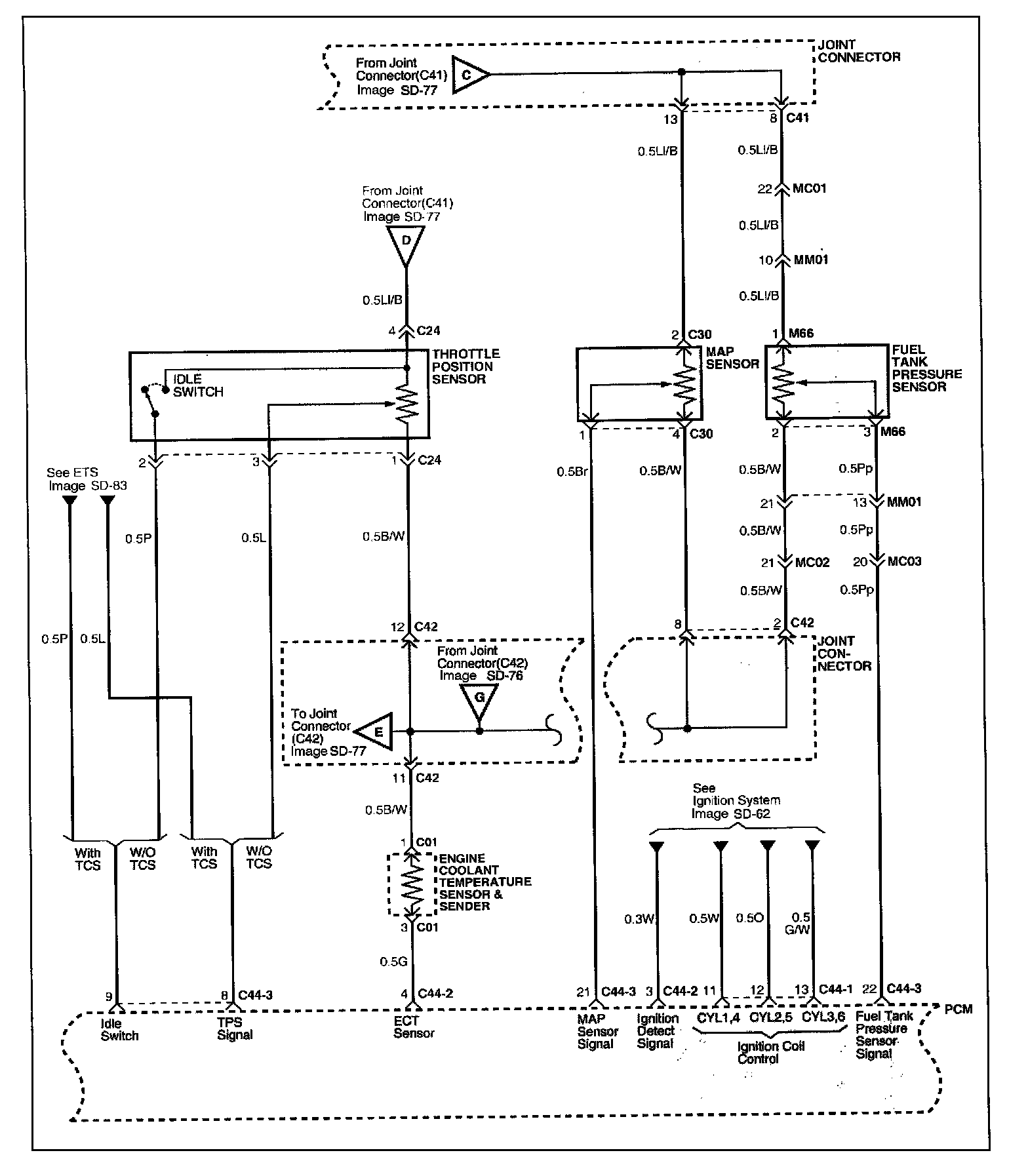

Image SD-73 - MFI Control System (2):

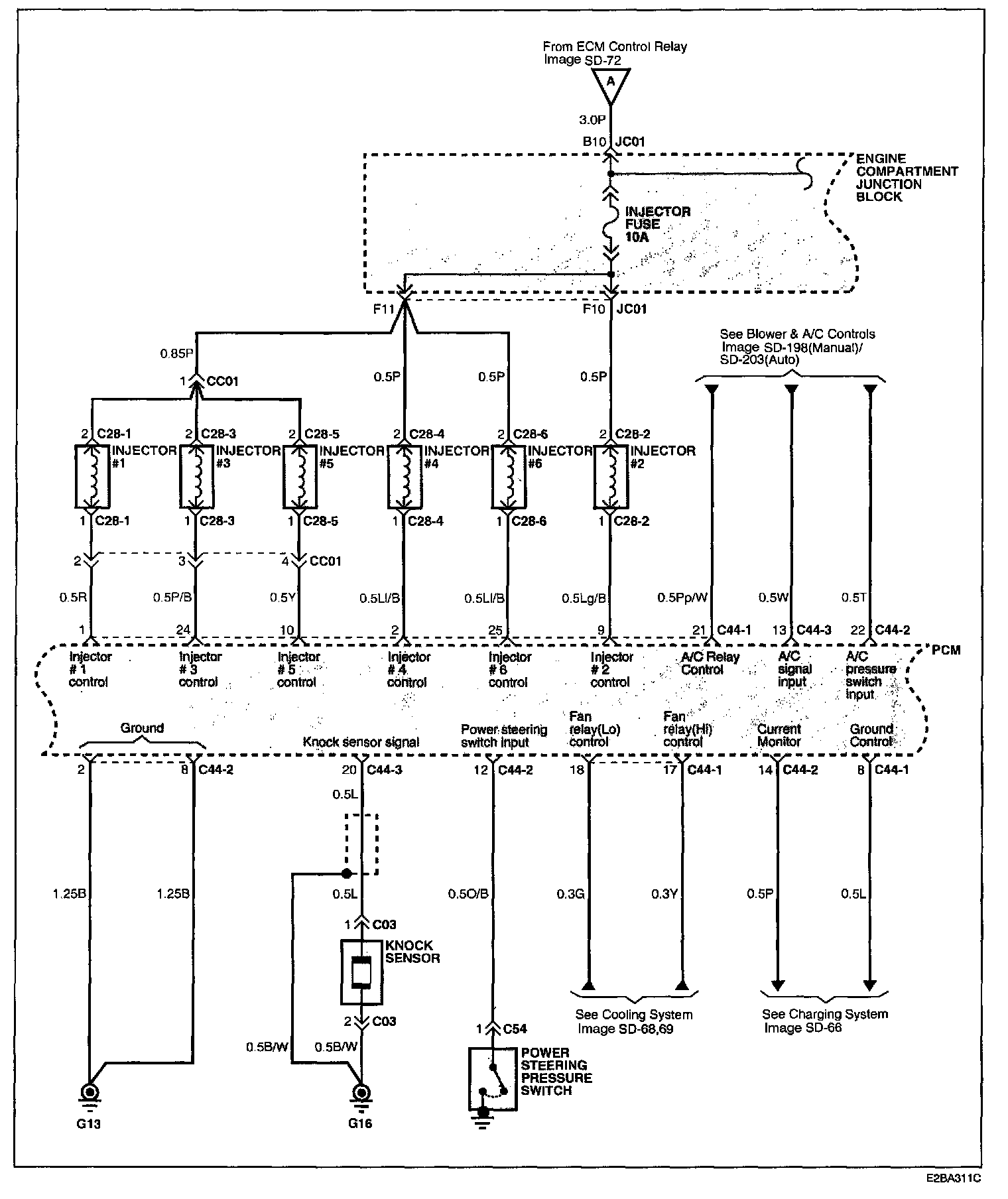

Image SD-74 - MFI Control System (3):

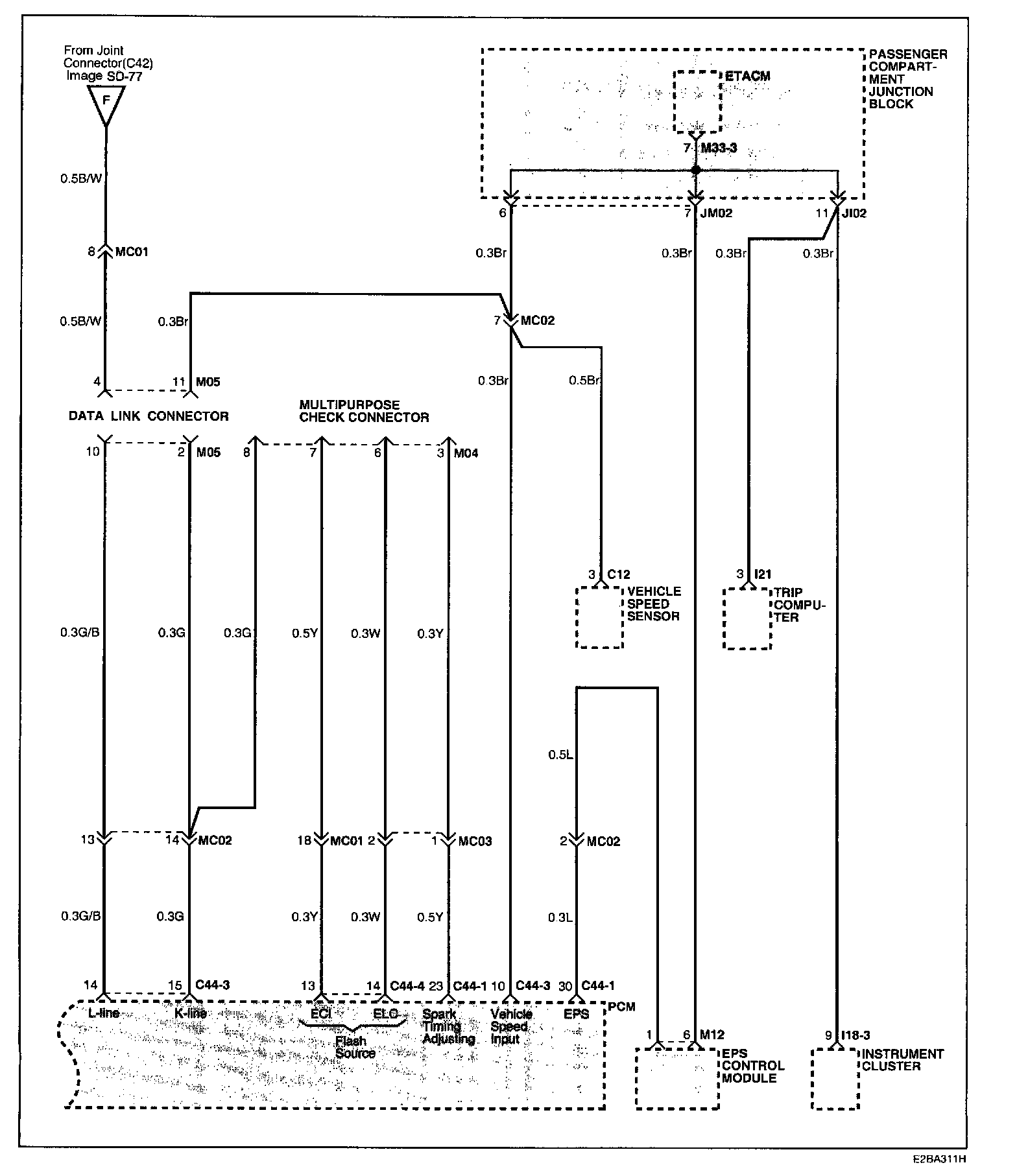

Image SD-75 - MFI Control System (4):

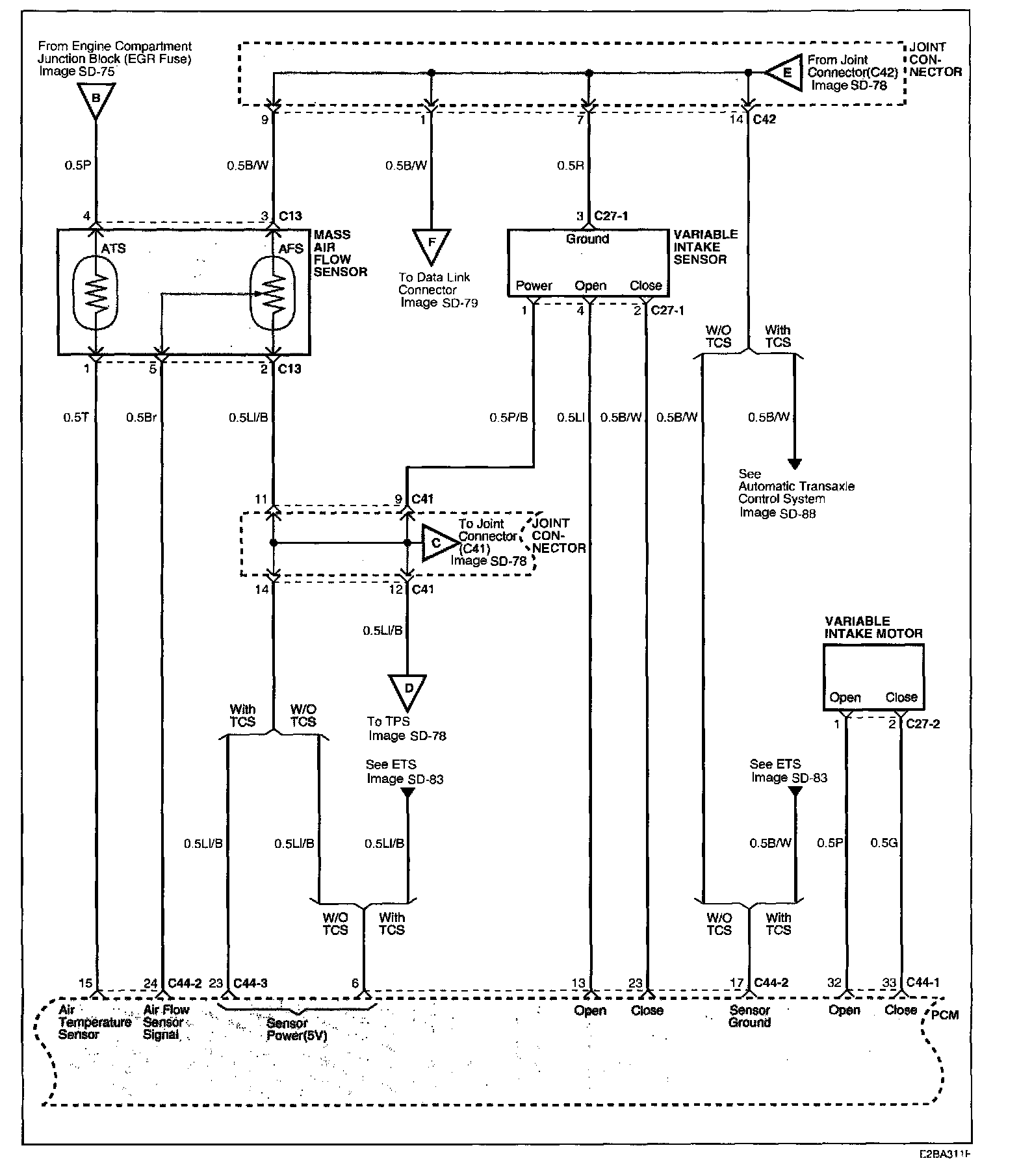

Image SD-76 - MFI Control System (5):
Image SD-77 - MFI Control System (6):
Image SD-78 - MFI Control System (7):

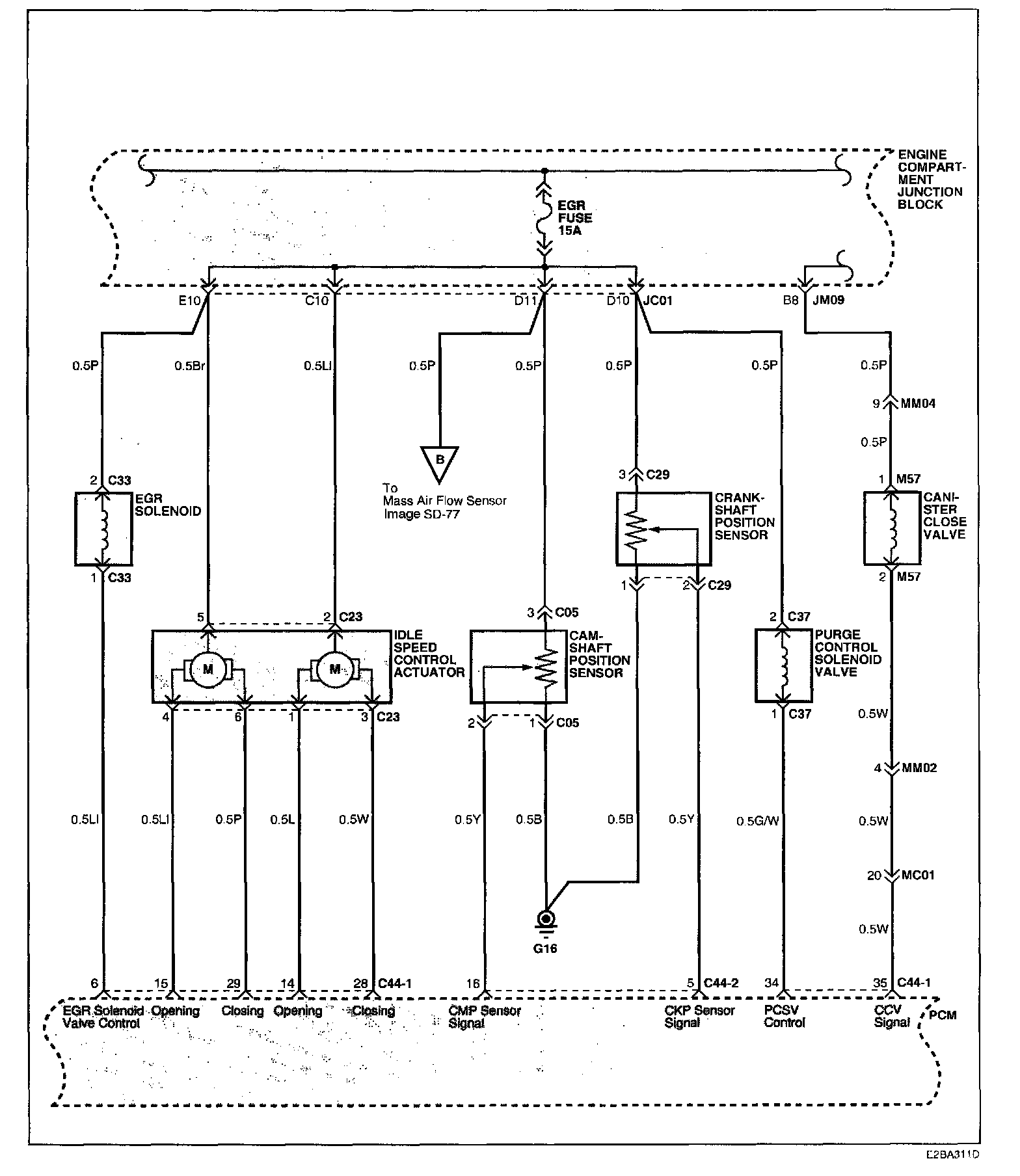

Image SD-79 - MFI Control System (8):
Schematic Drawing:
