Campaign - PCM Inspection/Replacement: Overview

Group: CAMPAIGN

Number: 02-01-001

Date: JANUARY, 2002

Model: 2001 XG300

Subject:
2001 XG300 PCM INSPECTION AND REPLACEMENT CAMPAIGN 048

DESCRIPTION:

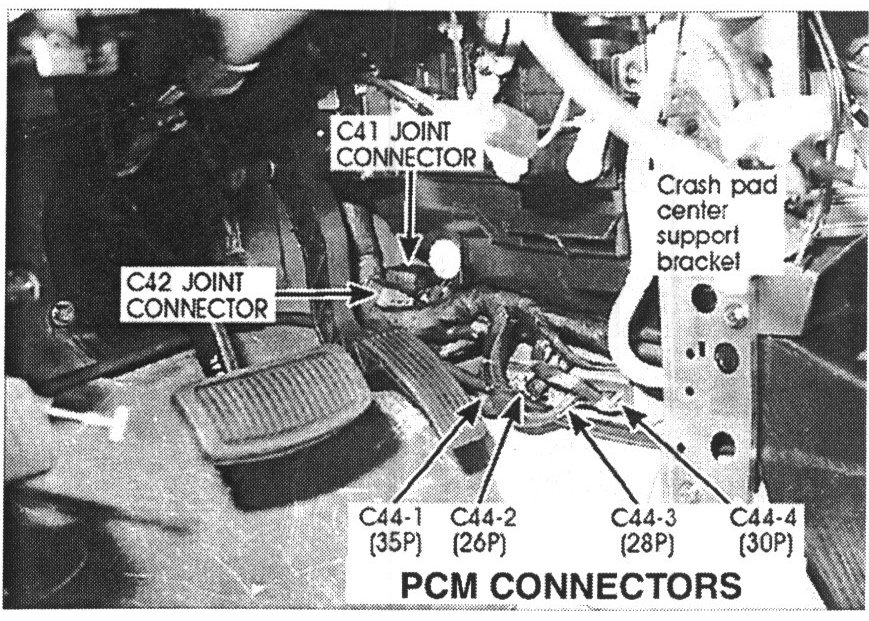

Some XG300 vehicles were produced with an improperly manufactured PCM (Powertrain Control Module). This bulletin describes the procedures to inspect the PCM production lot number (marked on the PCM label) and replace the PCM if necessary.

VEHICLES AFFECTED:
^ Model: XG300

^ Affected vehicle production date range:

-- August 24, 2000 through September 30, 2000

^ Affected vehicle identification number (VIN) range:

-- KMHFU45D01A081381 - KMHFU45DX1A090136

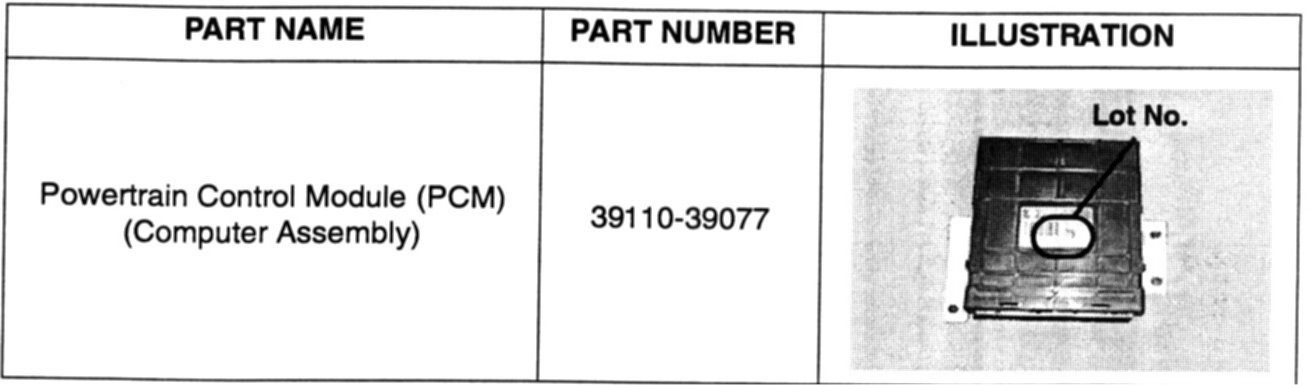

PART REQUIRED

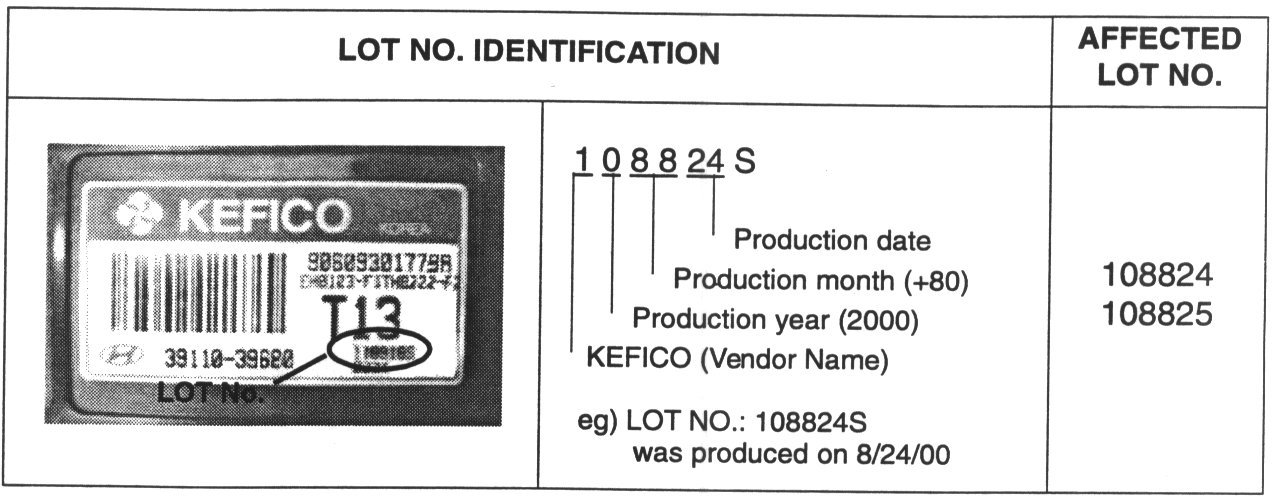

AFFECTED PCM LOT NO. IDENTIFICATION

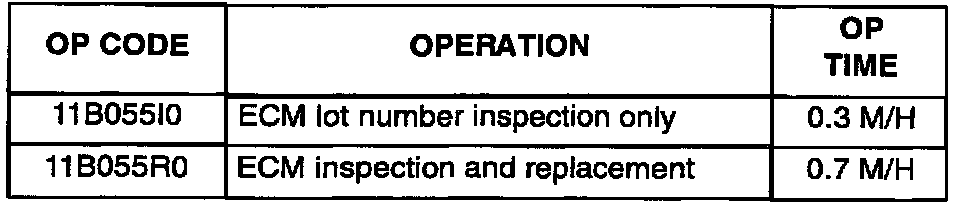

CAMPAIGN CLAIM INFORMATION:

NOTE:
Submit claims using the campaign claim screen.
