Blower Motor: Testing and Inspection

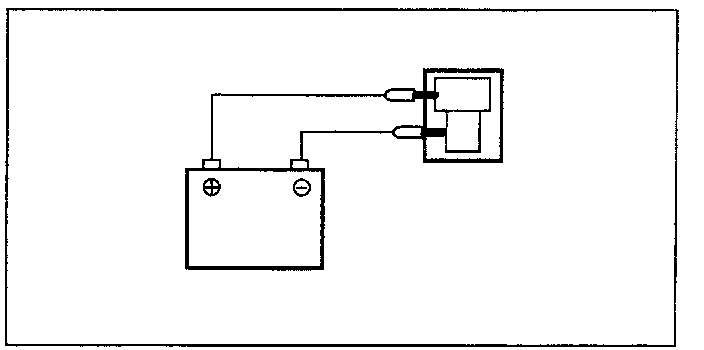

BLOWER MOTOR CHECKING (AUTOMATIC)Connect battery voltage and check blower motor rotation.
Check:

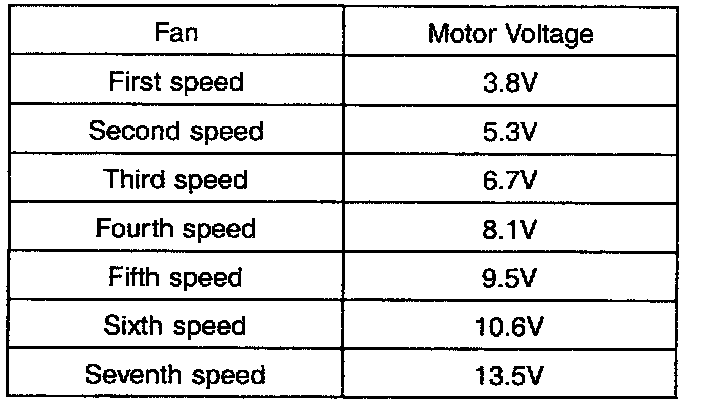

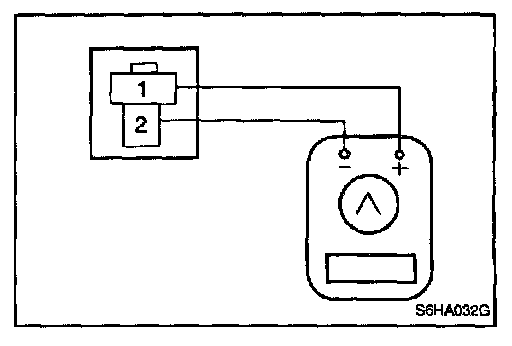

POWER TR CHECKINGOperating the blower switch as AUTO => LOW => HIGH => AUTO, and measure voltage between pins 1 and 2.
BLOWER MOTOR CHECKING (MANUAL)Connect the battery voltage and check the blower motor rotation.
