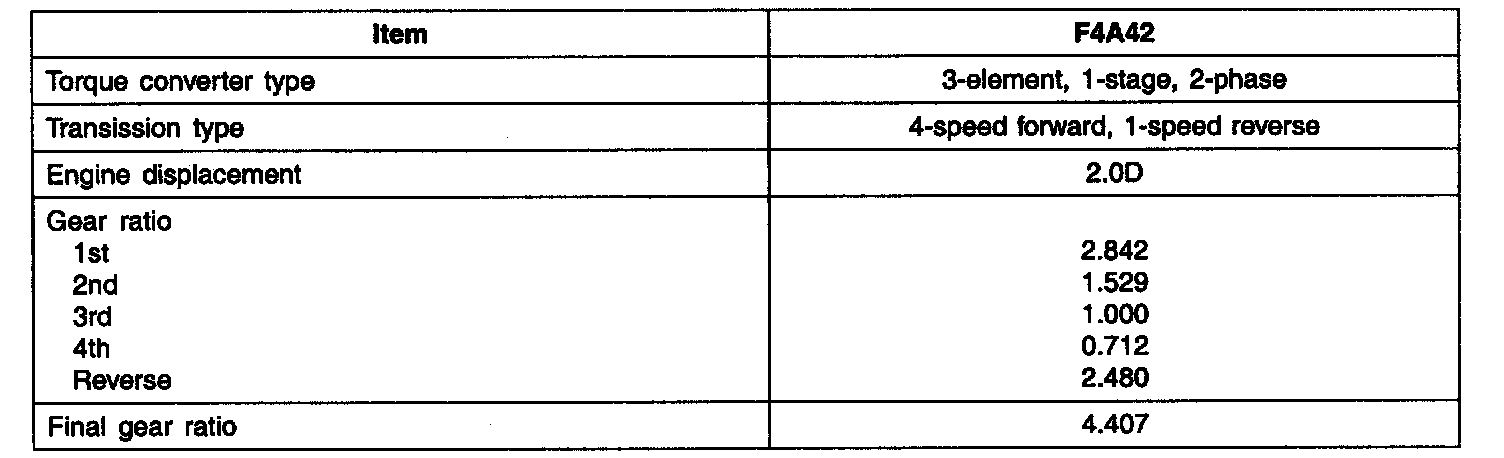

System Specifications
SPECIFICATIONS (A/T) Torque Converter Type
3-element, 1-stage, 2-phase
Transmission Type
4-speed forward, 1 speed reverse
Engine Displacement
2.0D
Gear Ratio
1st
2.842
2nd
1.529
3rd
1.000
4th
0.712
Reverse
2.480
Final Gear Ratio
4.407
