Cylinder Head Torque & Sequence




Cylinder Head Bolt Removal:

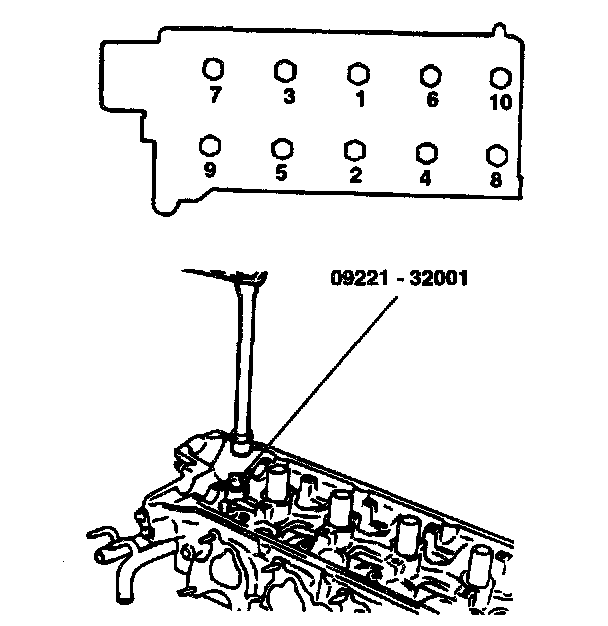

Tighten the bolts to the specified torque in sequence.

M10: 25Nm(18lb. ft)+(60°- 65°)+(60°- 65°)

M12: 30Nm(22lb. ft)+(60°- 65°)+(60°- 65°)
