Power Window Motor: Locations

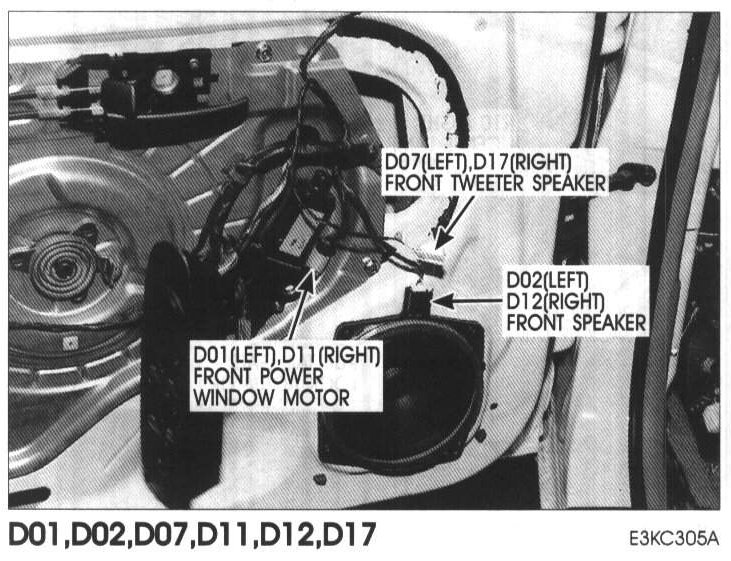

D01(Left), D11(Right) Front Power Window Motor, D02(Left), D12(Right) Front Speaker, D07(Left), D17(Right) Front Tweeter Speaker:



D21(Left), D31(Right) Rear Power Window Motor, D25(Left), D35(Right) Rear Power Window Switch:
