Power Window Switch: Locations

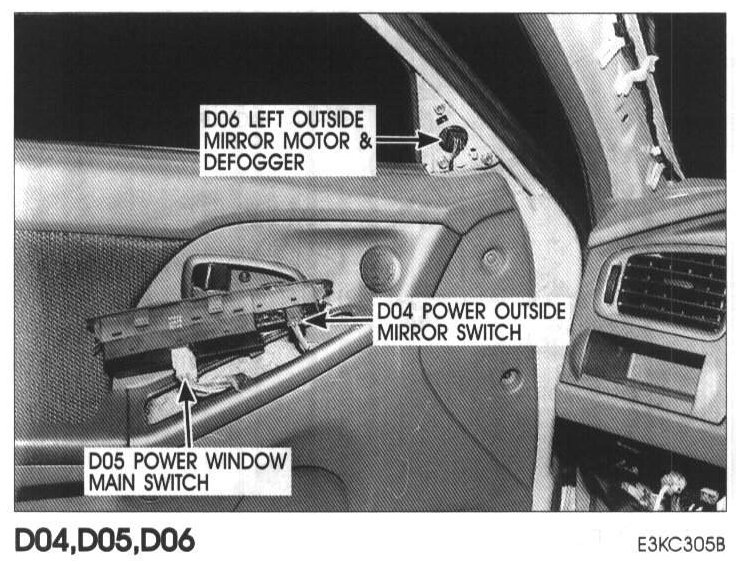

D04 Power Outside Mirror Switch, D05 Power Window Main Switch, D06 Left Outside Mirror Motor & Defogger:

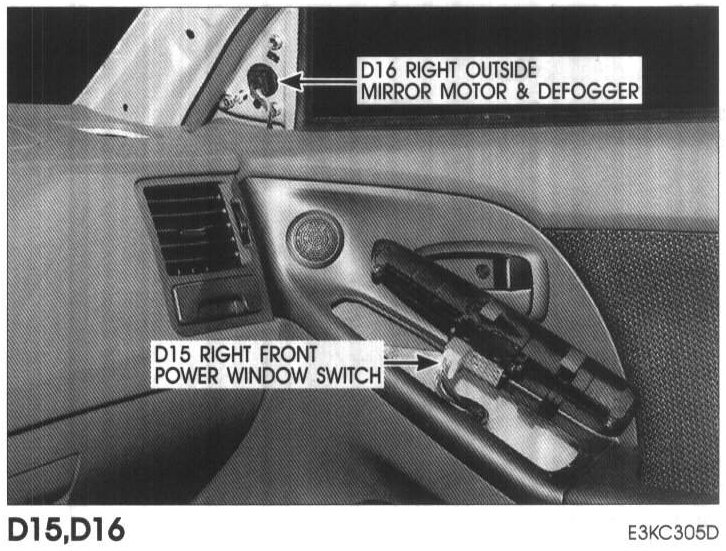

D15 Right Front Power Window Switch, D16 Right Outside Mirror Motor & Defogger:

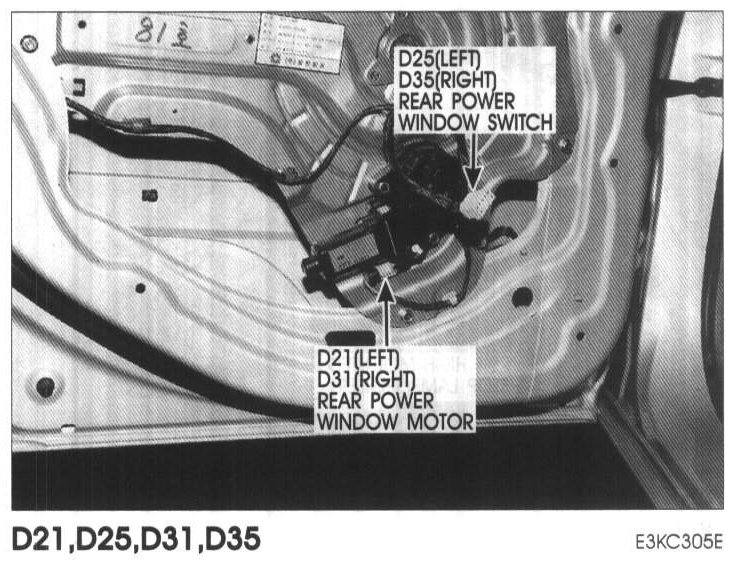

D21(Left), D31(Right) Rear Power Window Motor, D25(Left), D35(Right) Rear Power Window Switch:
