M Connectors (Main Harness)

M01 - M12, M13-1 - M13-3, M14:

M15-1 - M15-4, M16 - M18, M20-1 - M20-3, M26 - M29, M32-1:

M32-2, M33 - M53:

M Connectors (Main Harness)

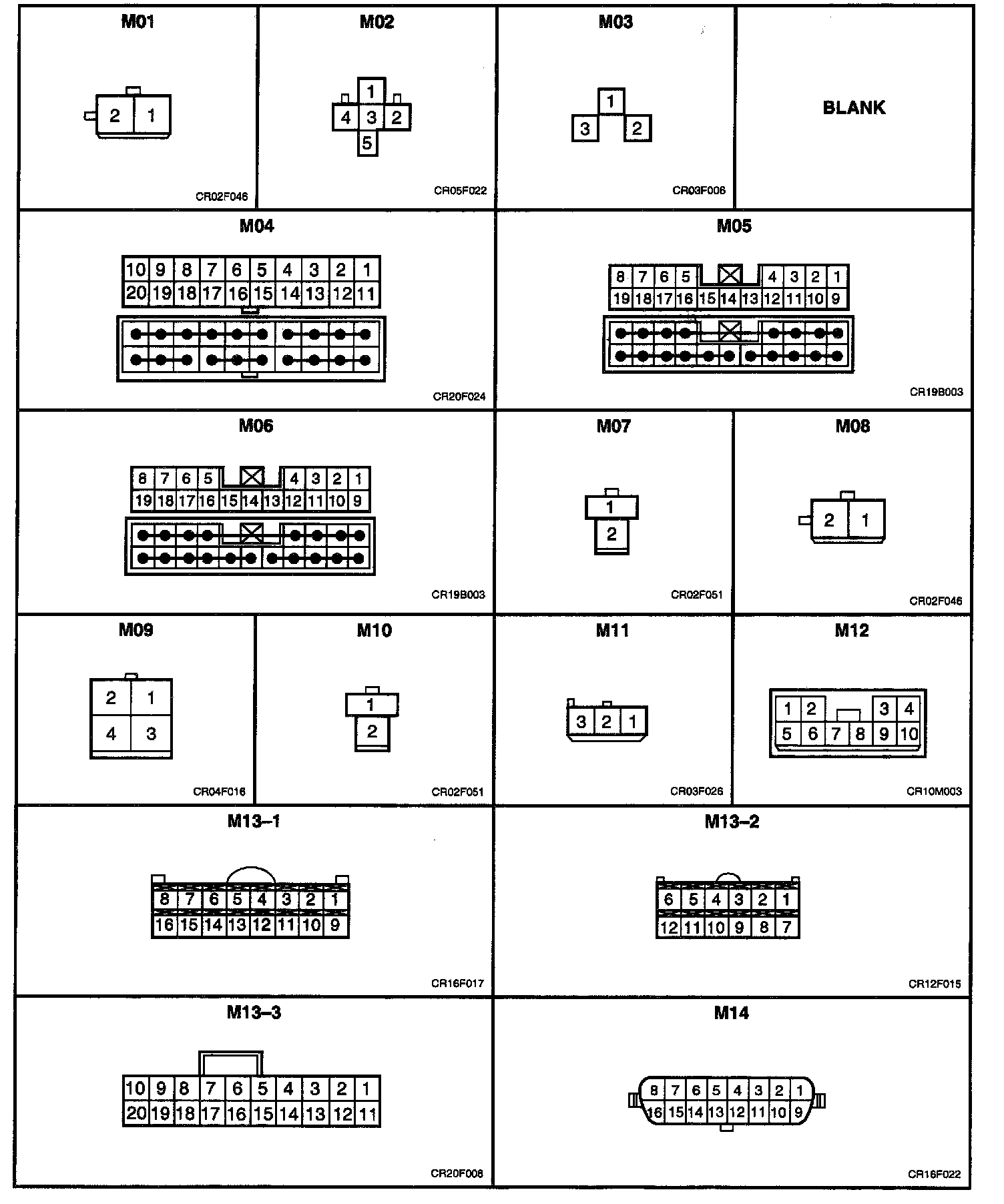

M01 - M12, M13-1 - M13-3, M14:

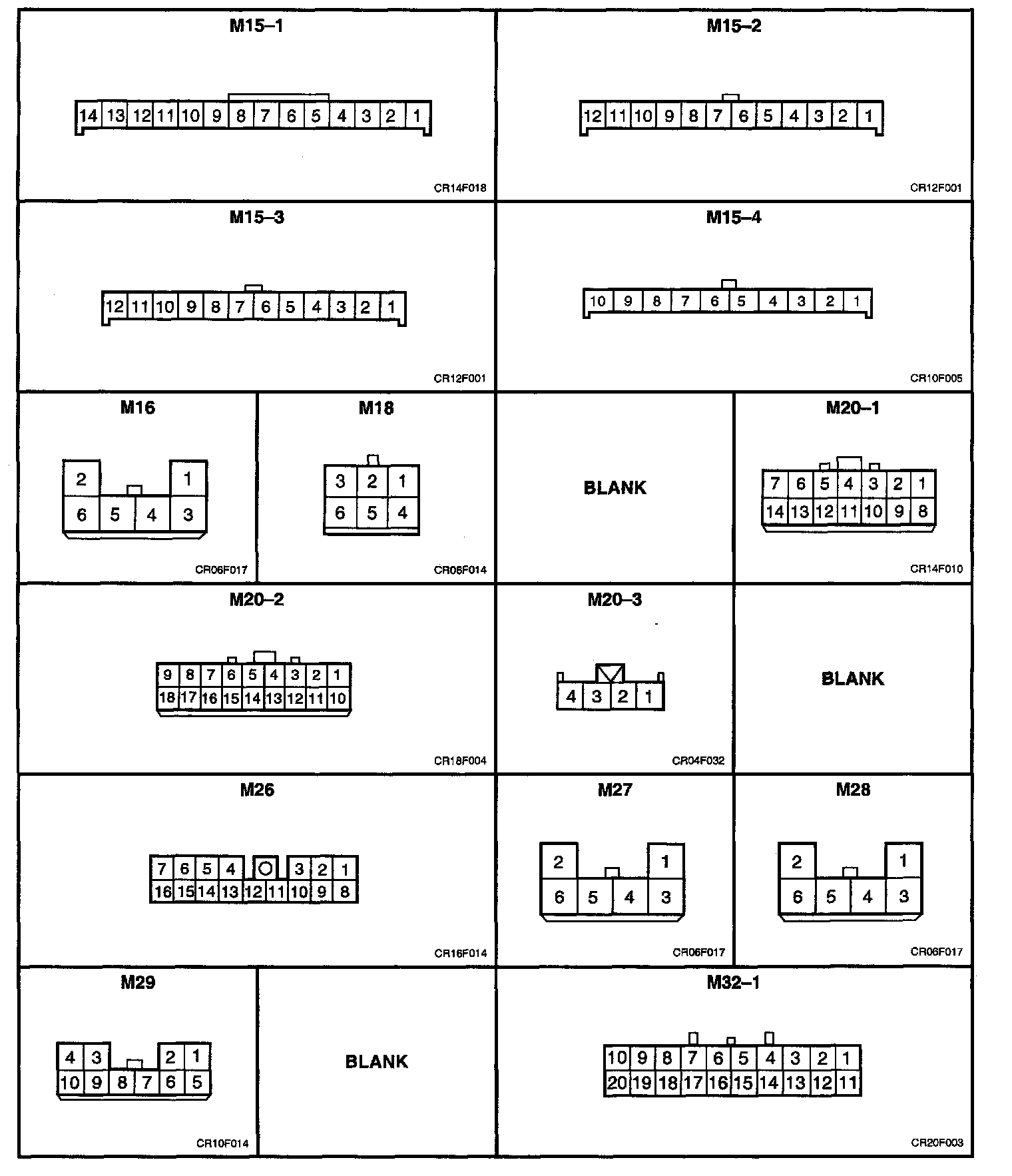

M15-1 - M15-4, M16 - M18, M20-1 - M20-3, M26 - M29, M32-1:

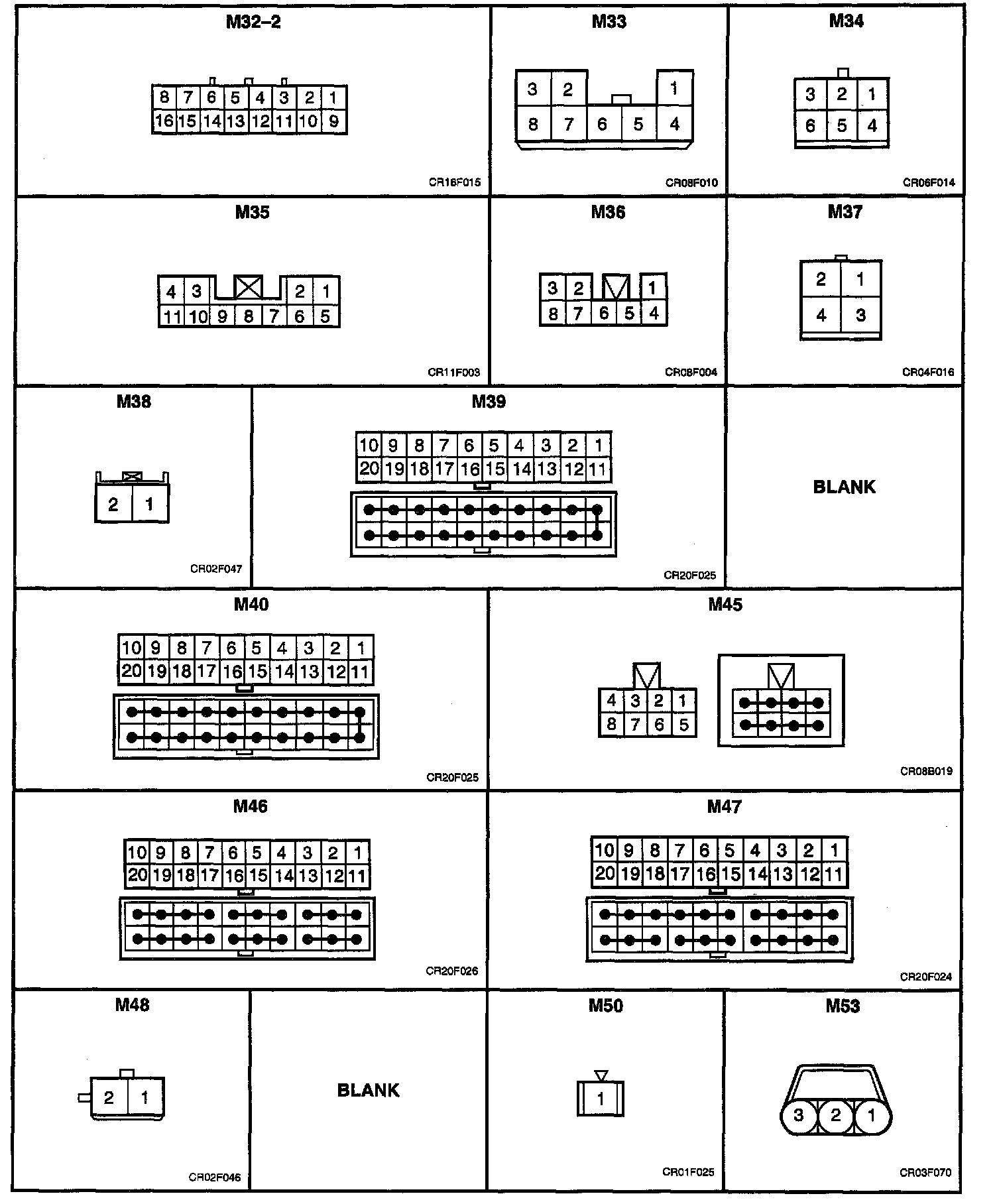

M32-2, M33 - M53:

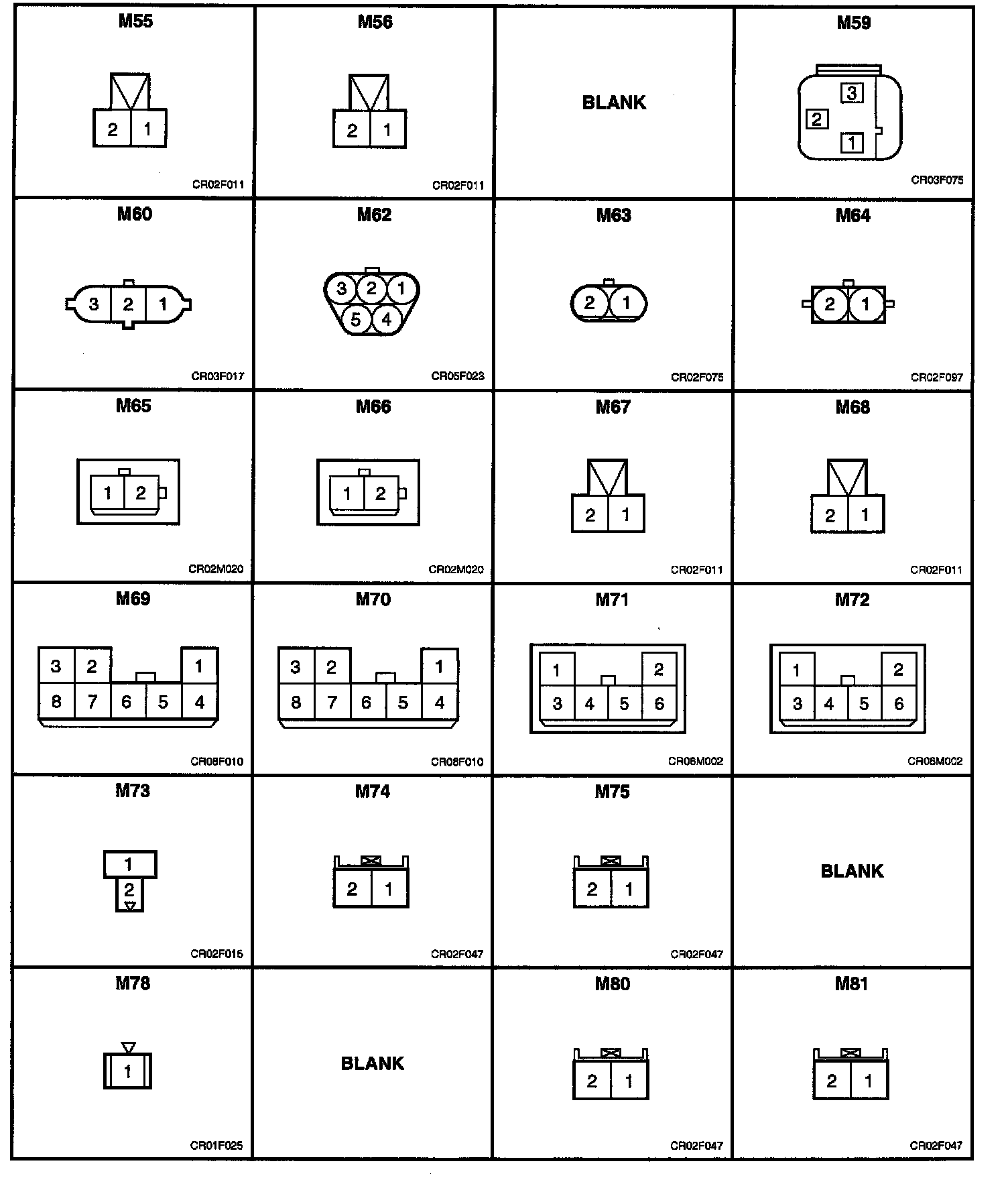

M55 - M81:

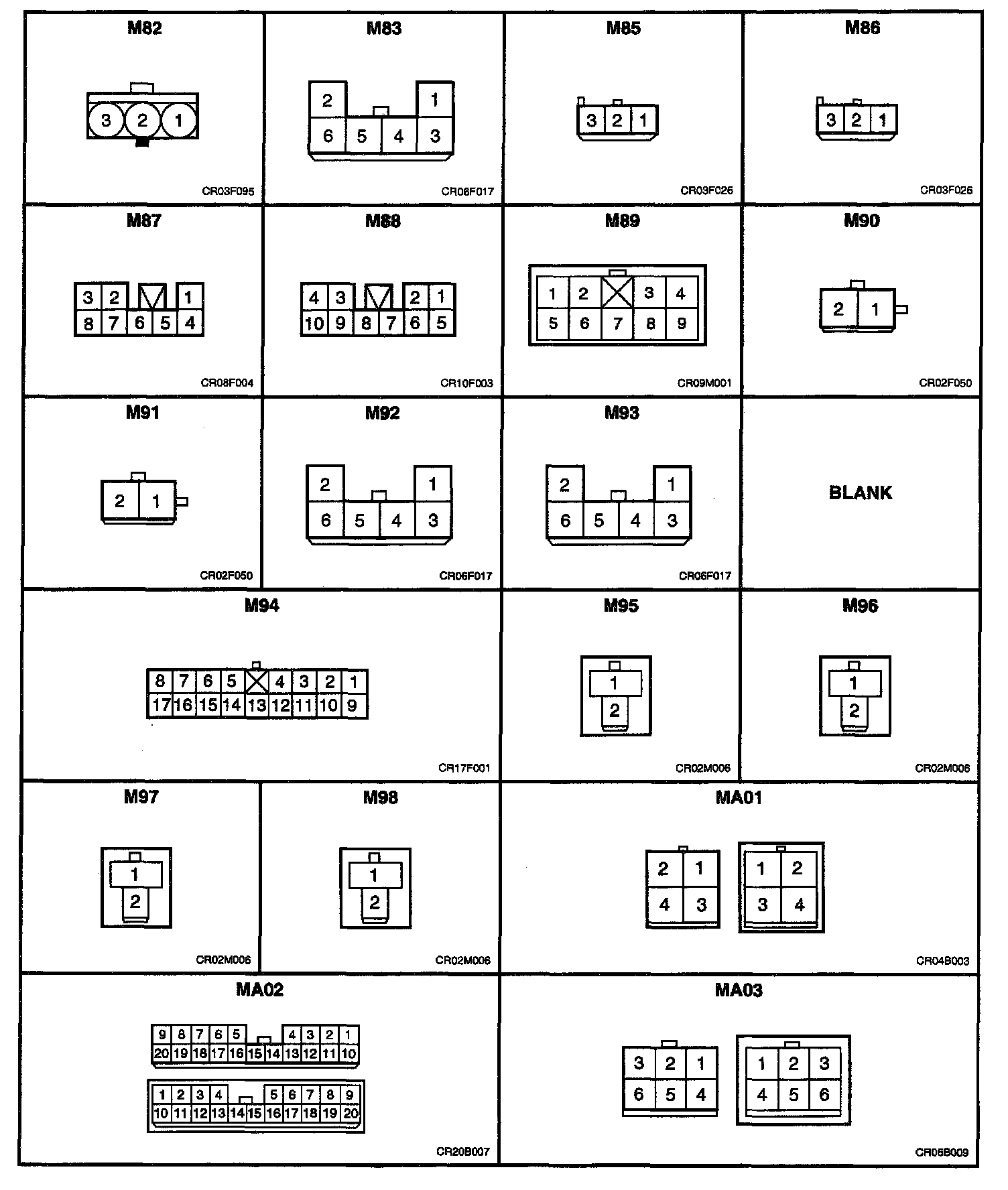

M82 - M98, MA01 - MA03:

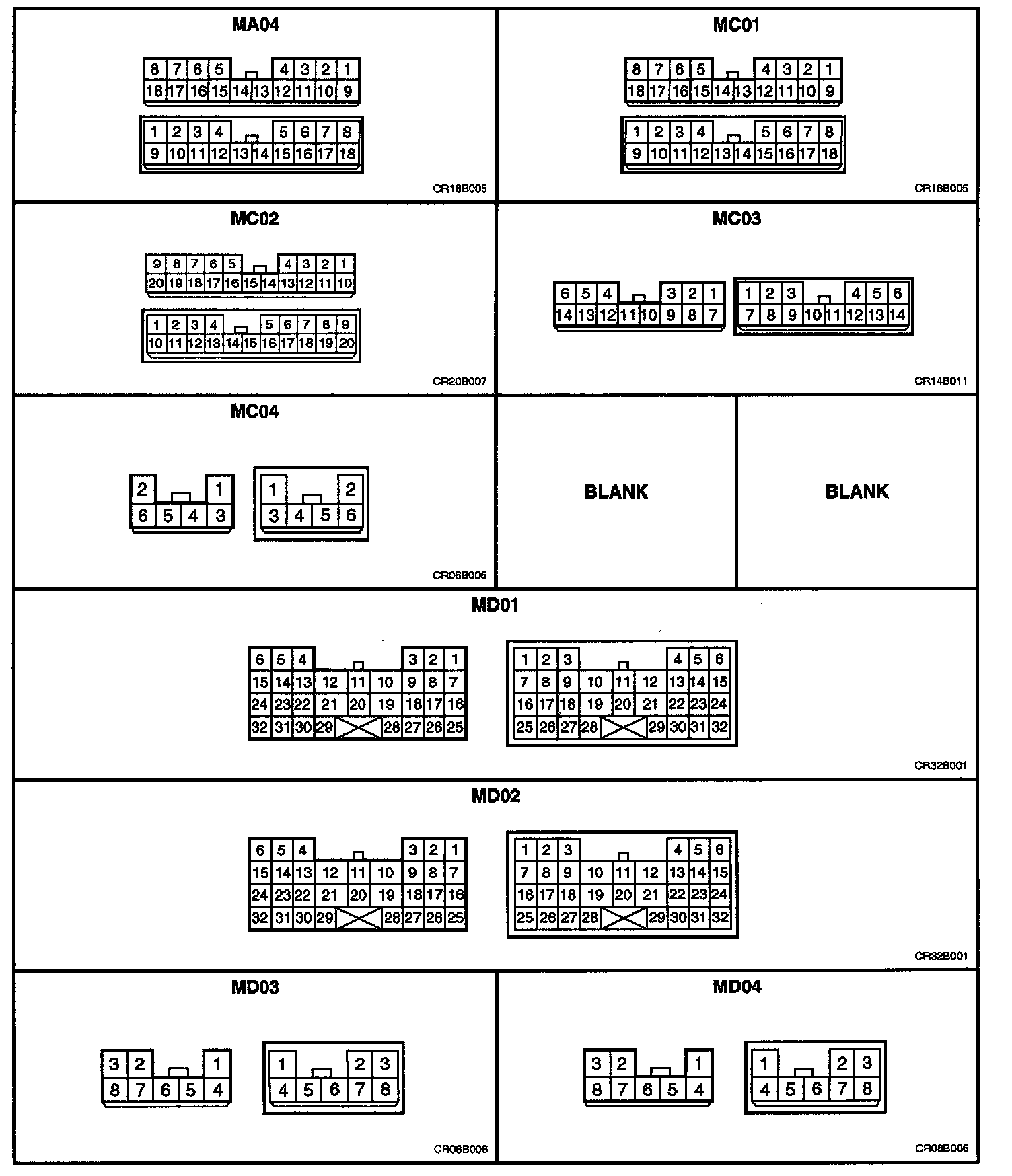

MA04, MC01 - MC04, MD01 - MD04:

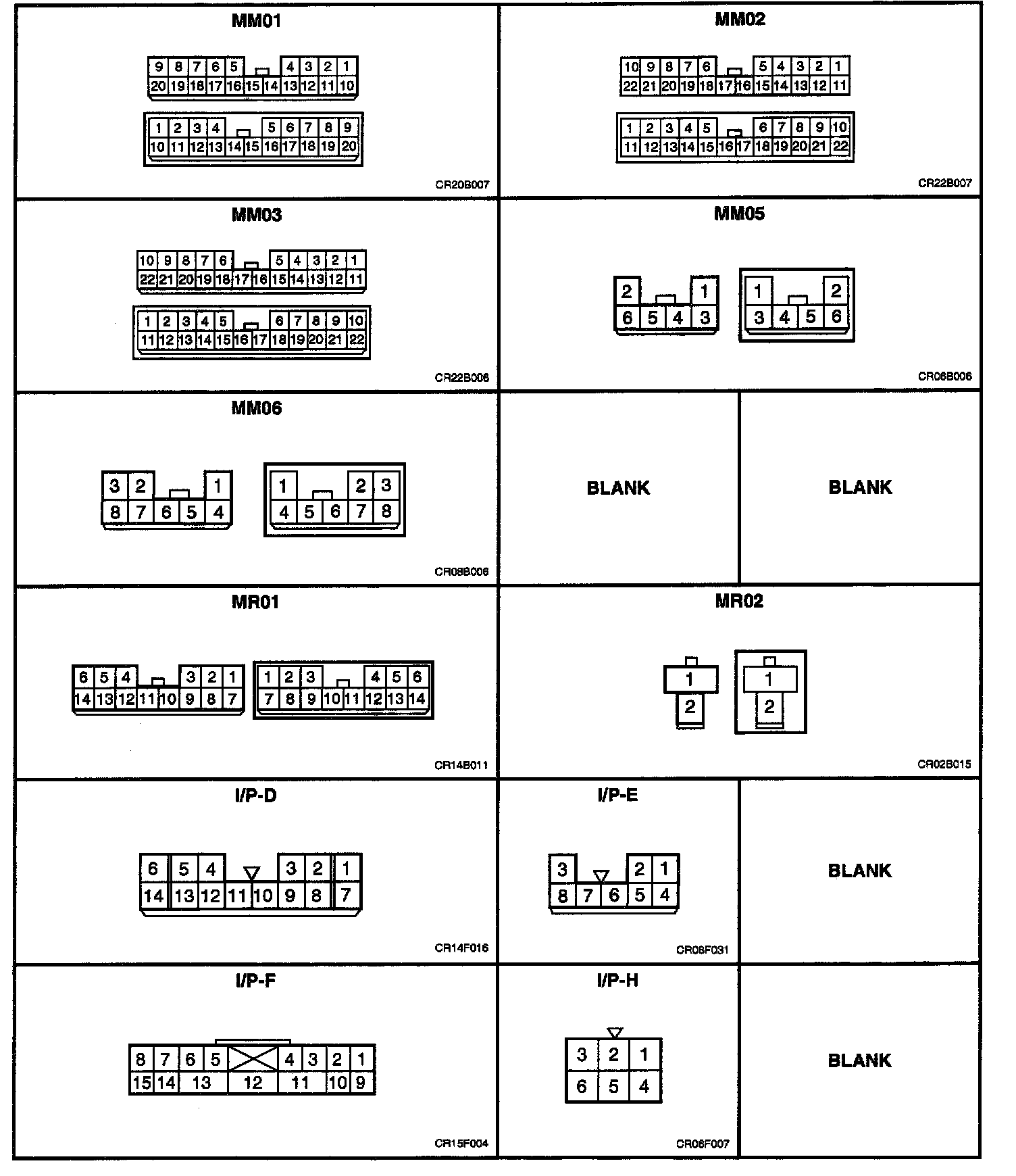

MM01 - MM06, MR01 - MR02, I9/P-D - I/P-H:

I/P-J - I/P-P:
