Fuse

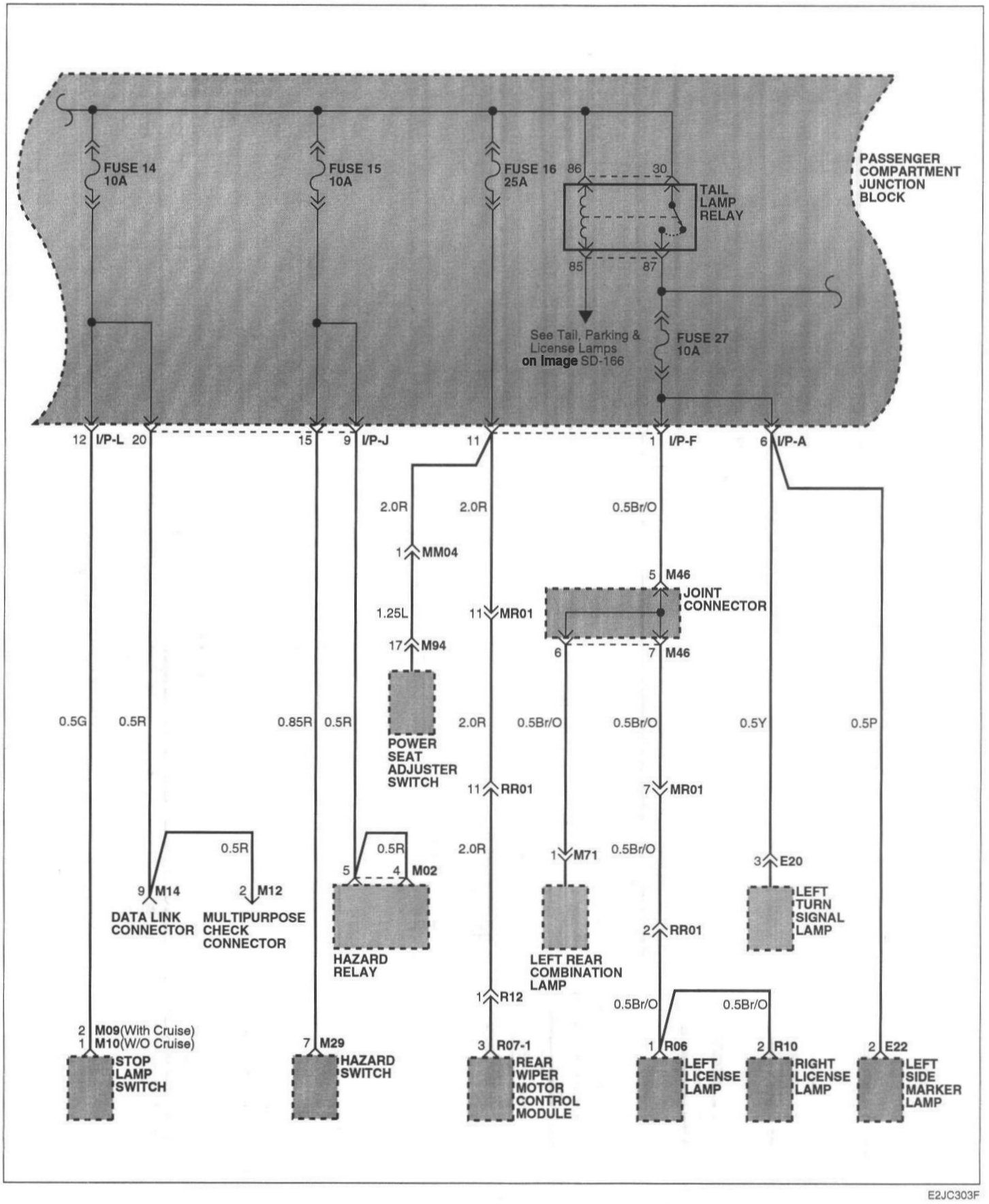

Image SD-16 Passenger Compartment Fuse Details (1):

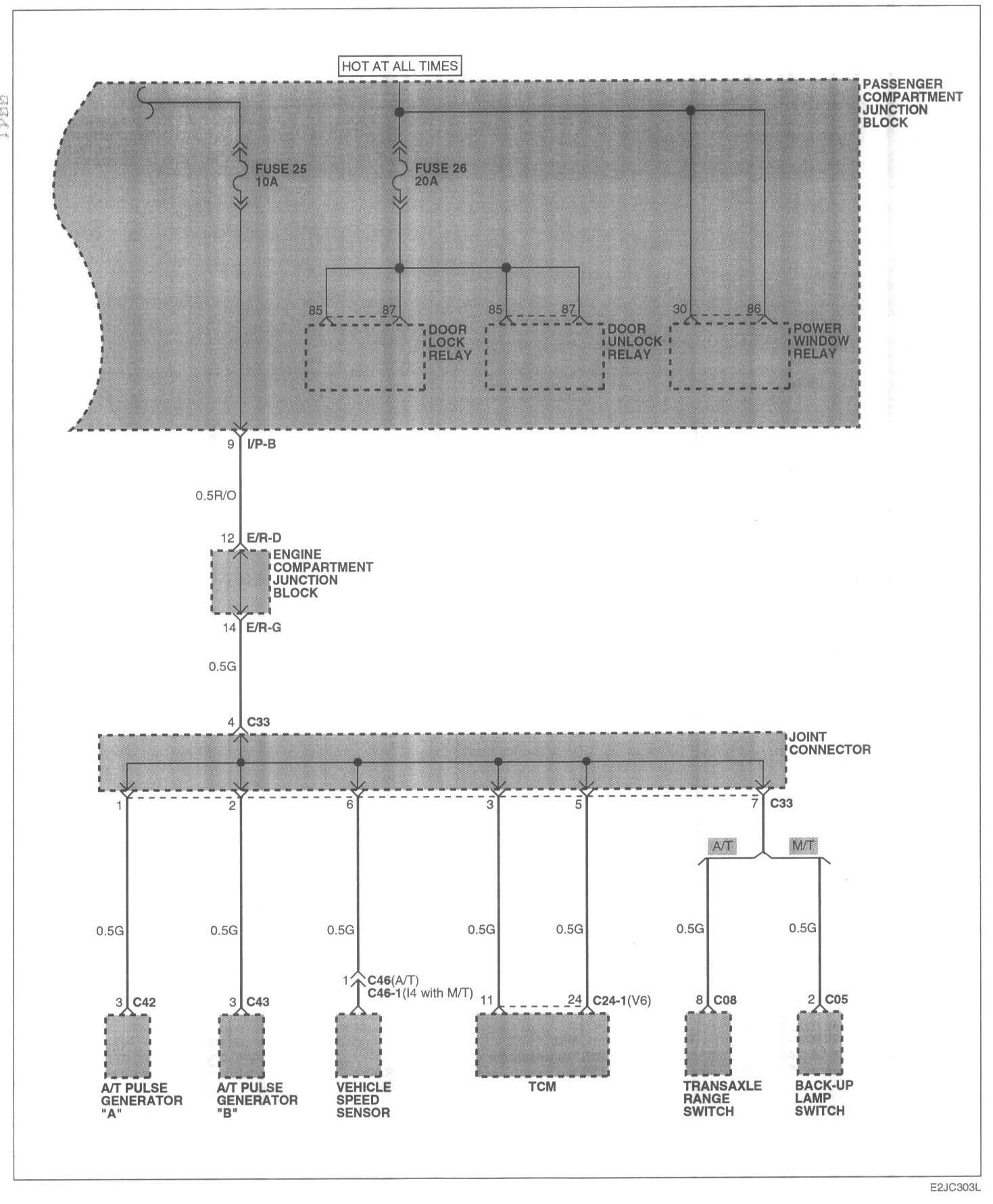

Image SD-17 Passenger Compartment Fuse Details (2):

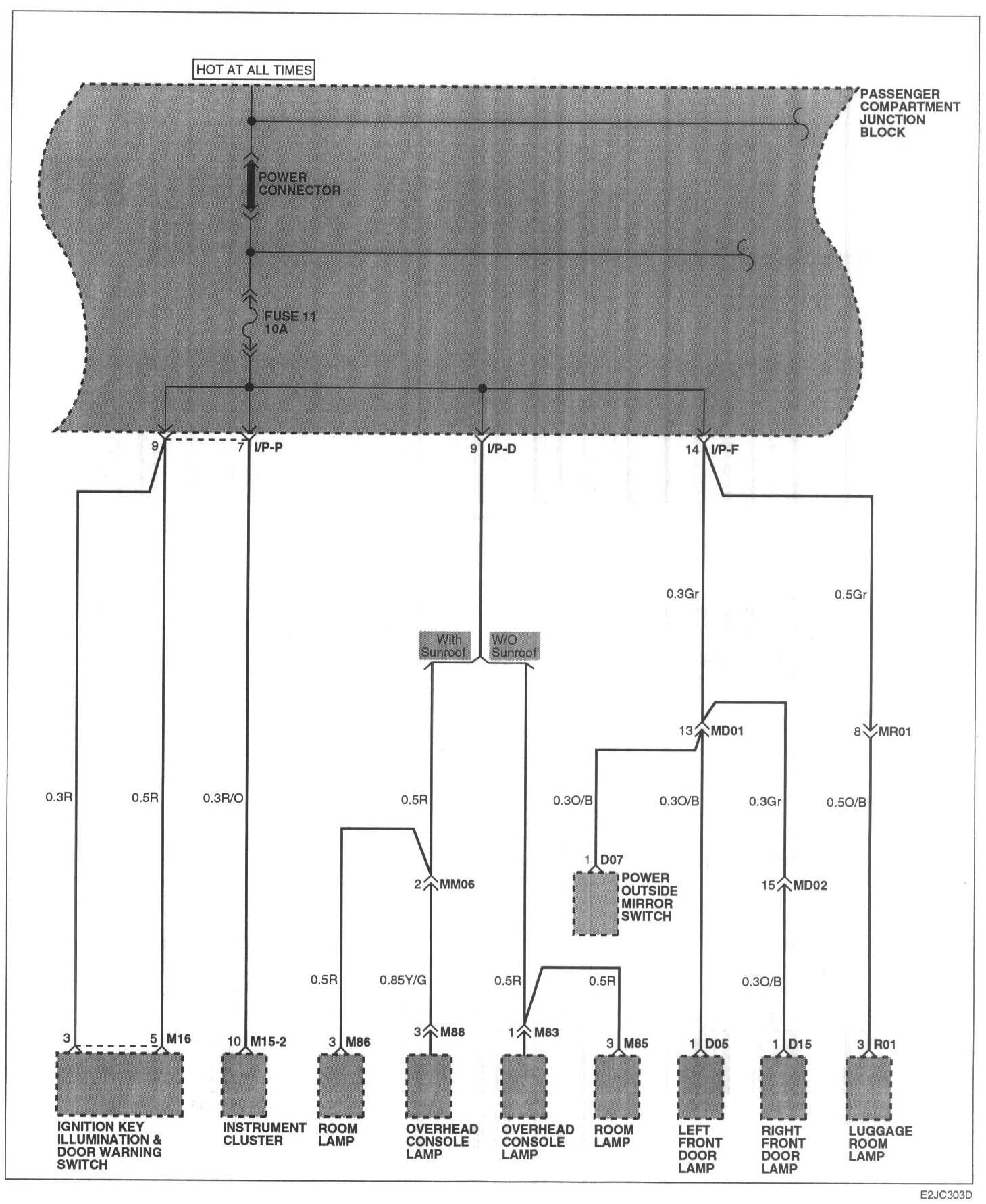

Image SD-18 Passenger Compartment Fuse Details (3):

Image SD-19 Passenger Compartment Fuse Details (4):

Image SD-20 Passenger Compartment Fuse Details (5):

Image SD-21 Passenger Compartment Fuse Details (6):

Image SD-22 Passenger Compartment Fuse Details (7):

Image SD-23 Passenger Compartment Fuse Details (8):

Image SD-24 Passenger Compartment Fuse Details (9):

Image SD-25 Passenger Compartment Fuse Details (10):

Image SD-26 Passenger Compartment Fuse Details (11):
