Control Module HVAC

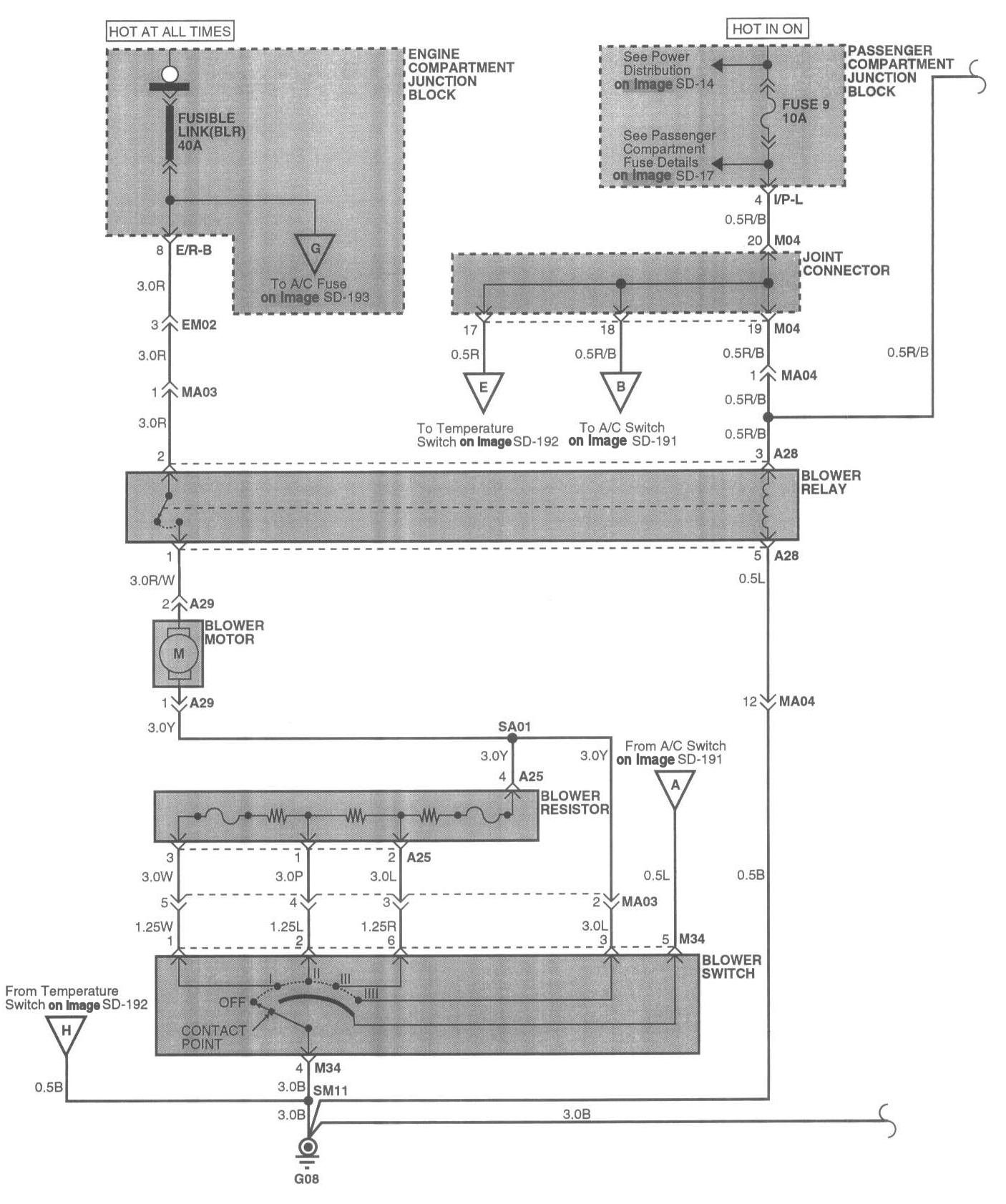

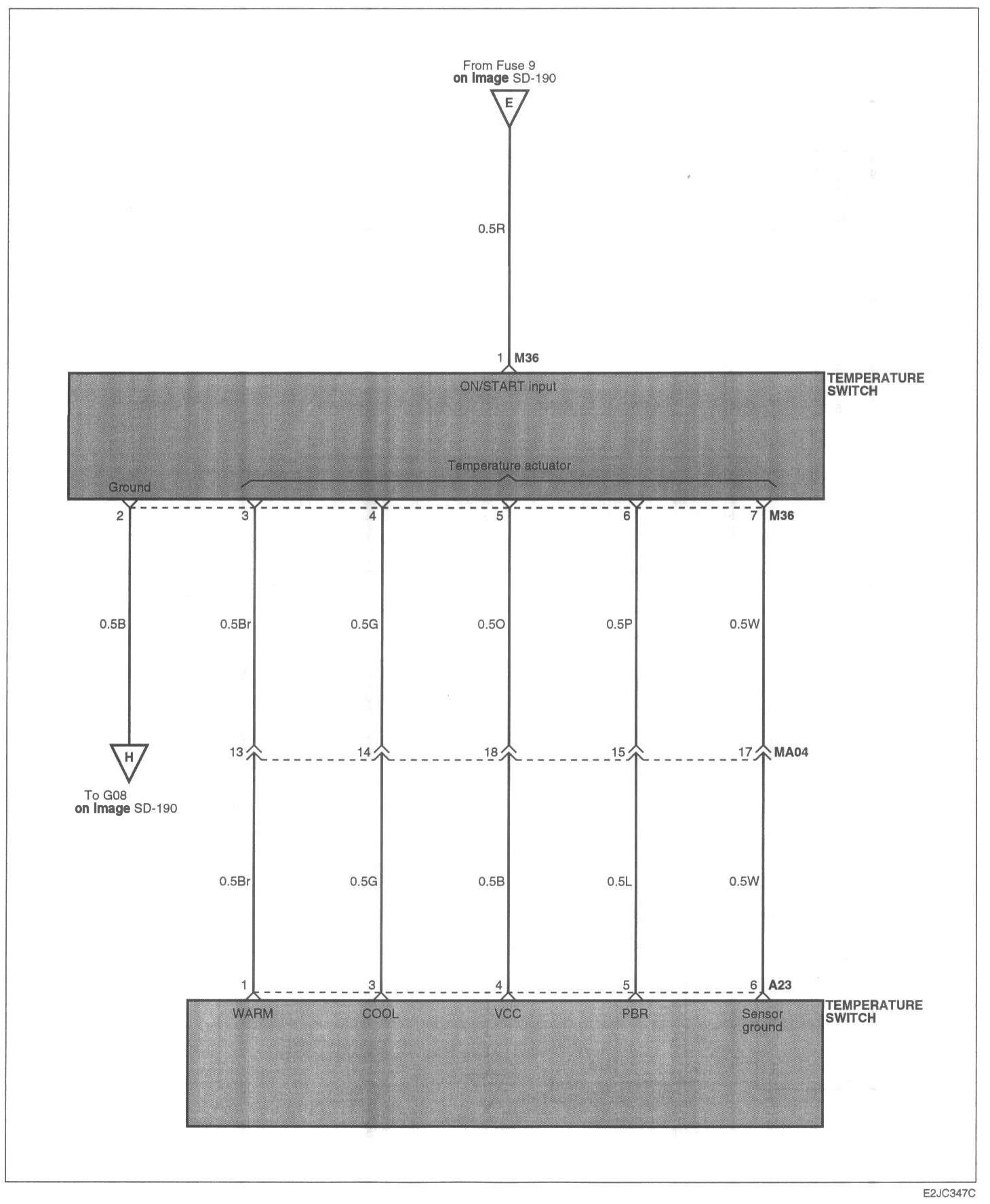

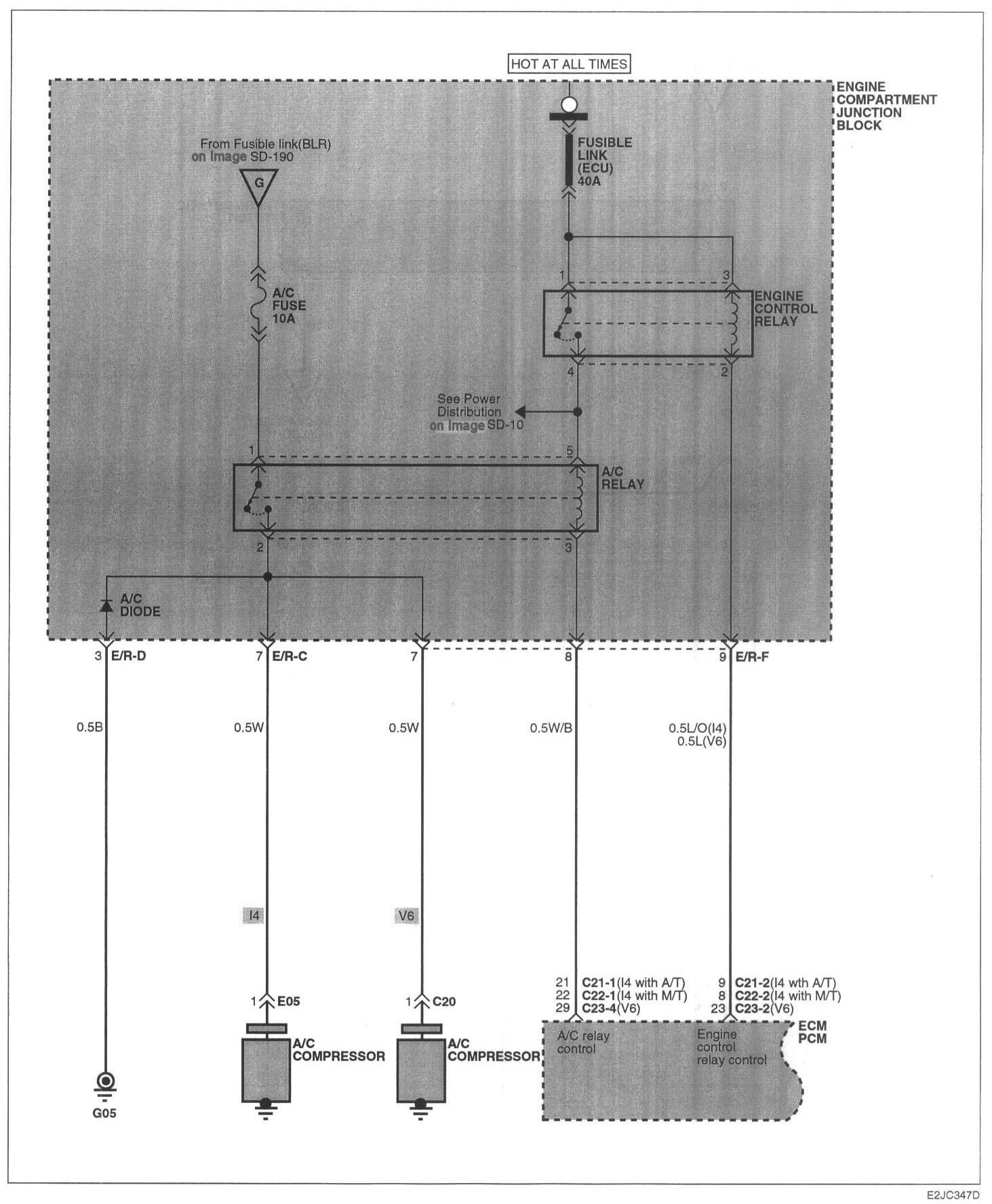

Image SD-190 Blower And A/C Controls (Manual) (1):

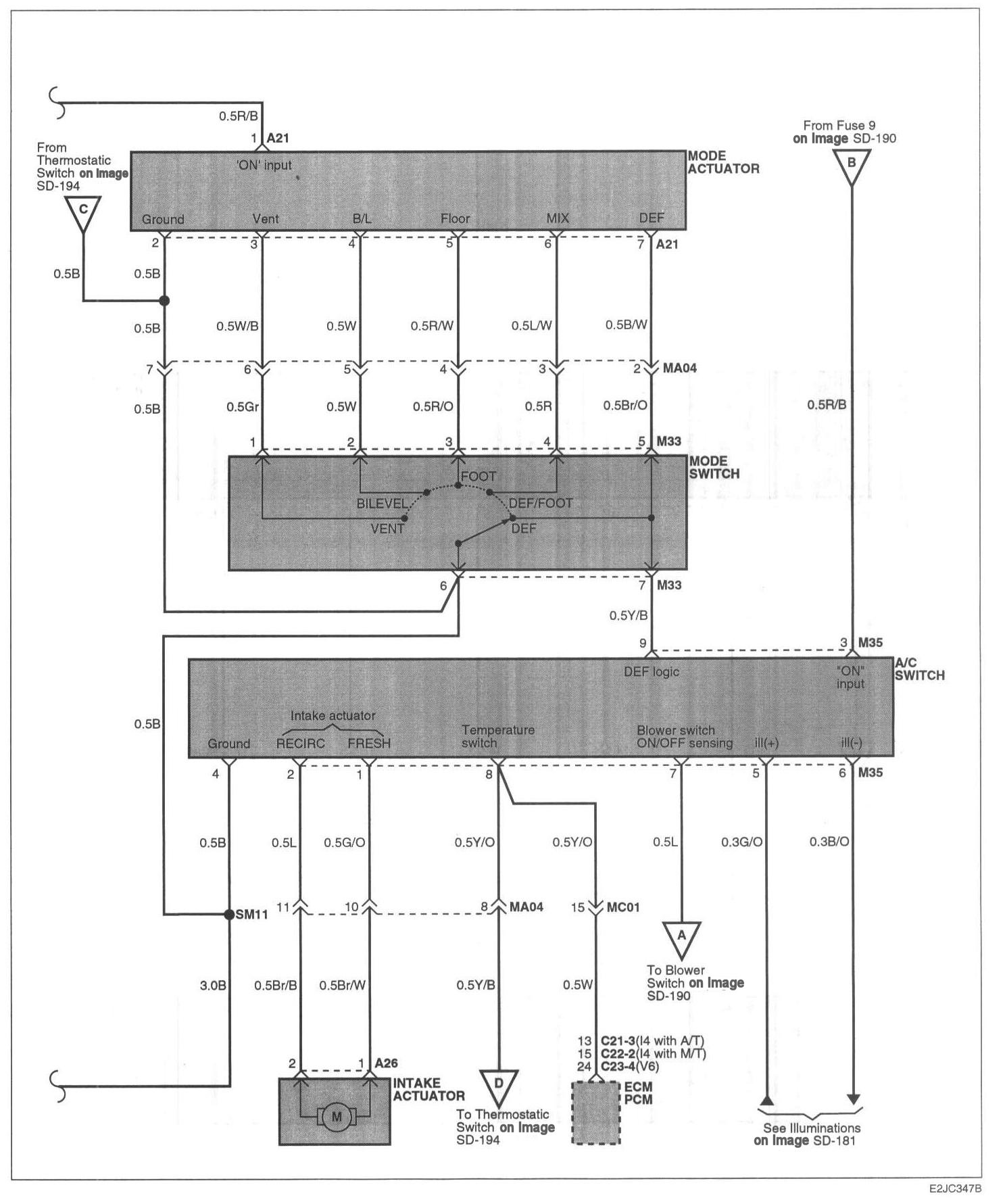

Image SD-191 Blower And A/C Controls (Manual) (2):

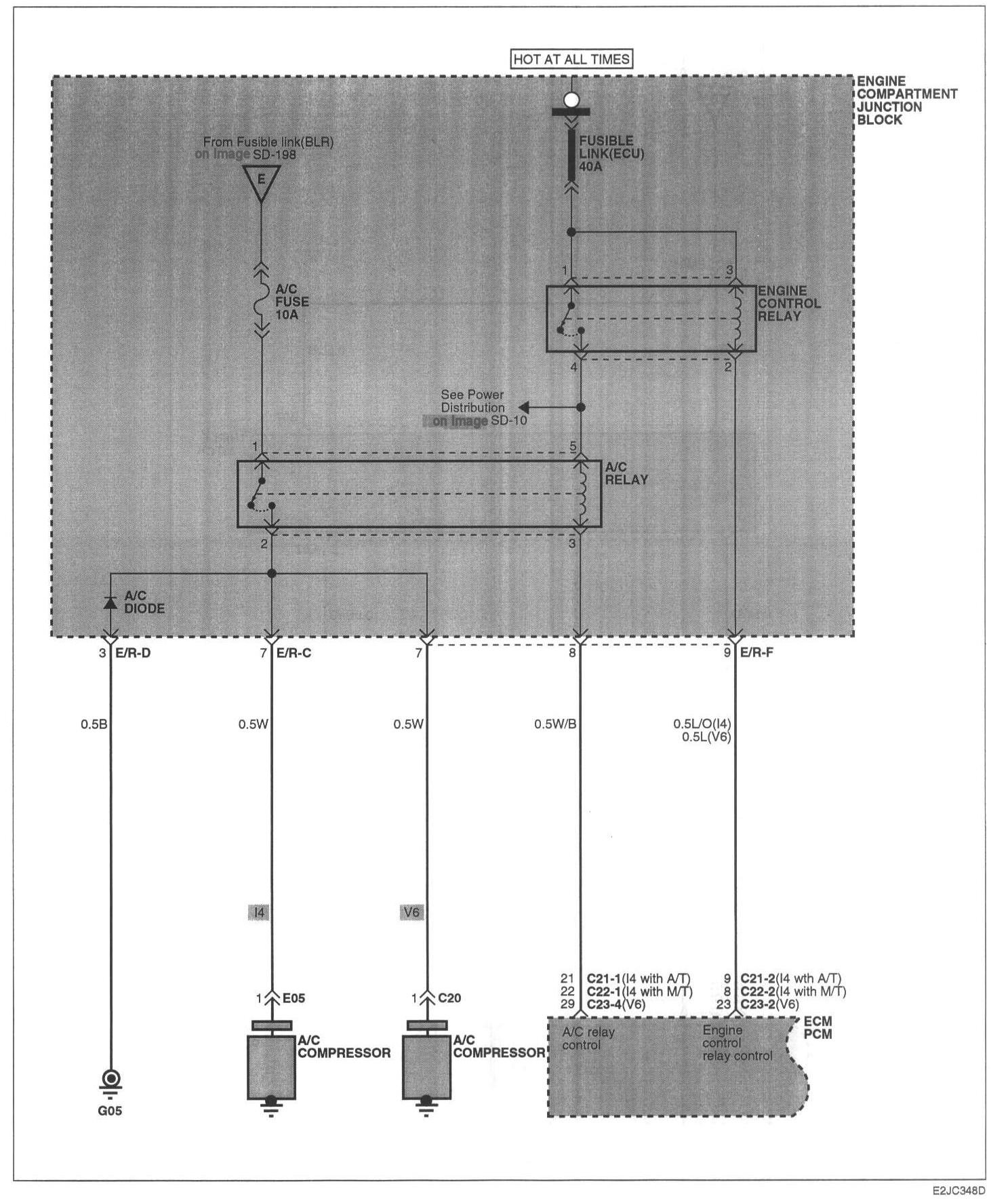

Image SD-192 Blower And A/C Controls (Manual) (3):

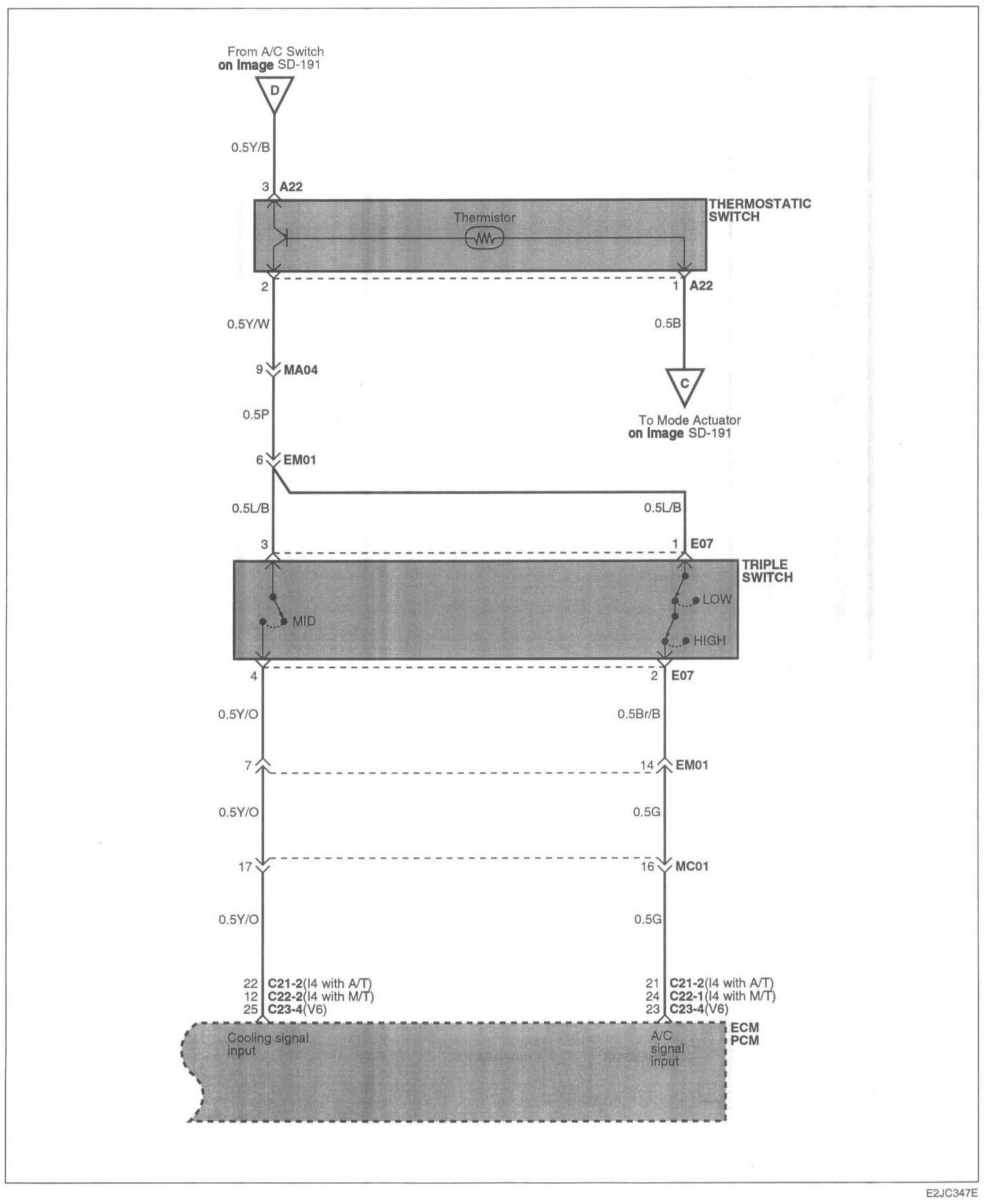

Image SD-193 Blower And A/C Controls (Manual) (4):

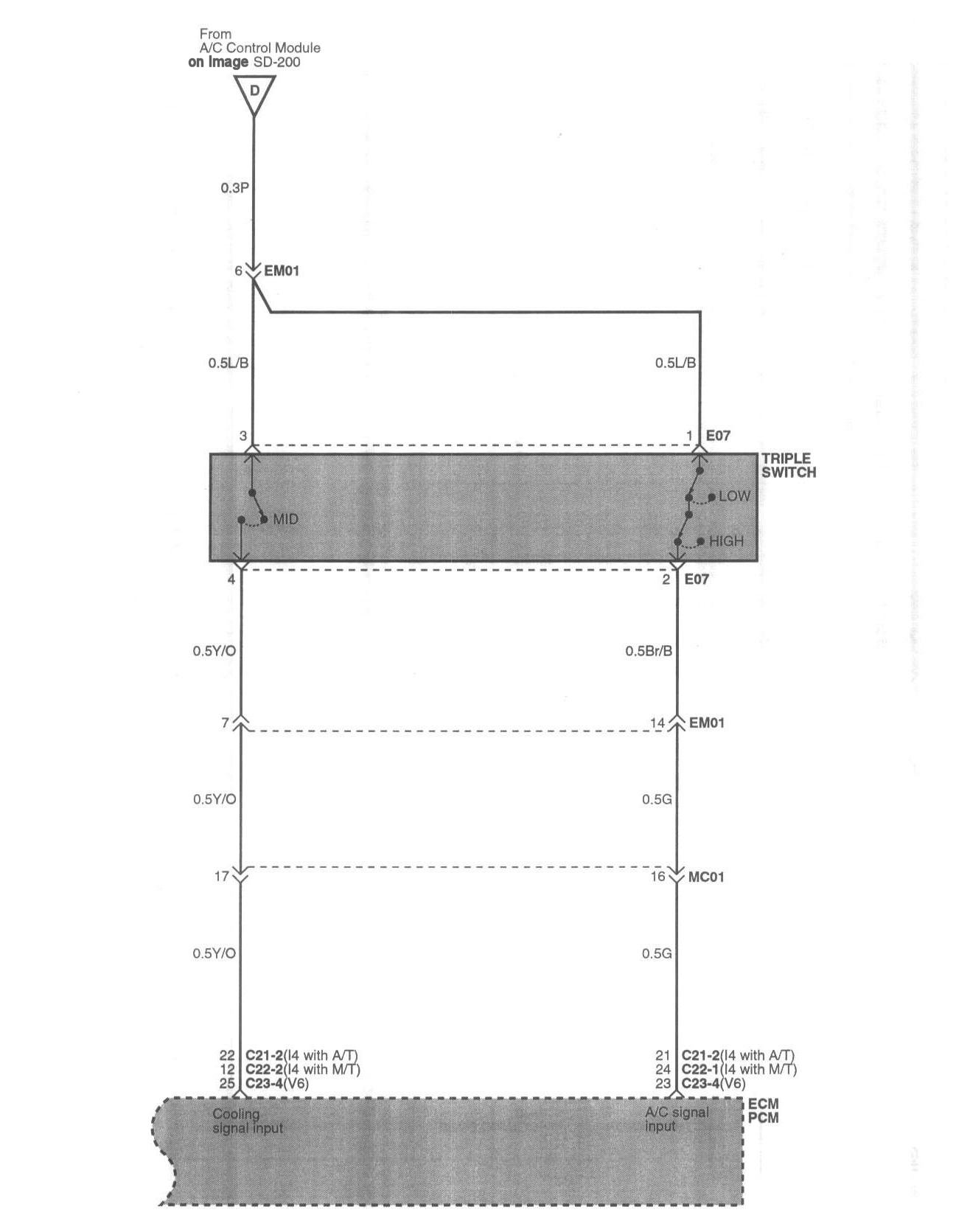

Image SD-194 Blower And A/C Controls (Manual) (5):

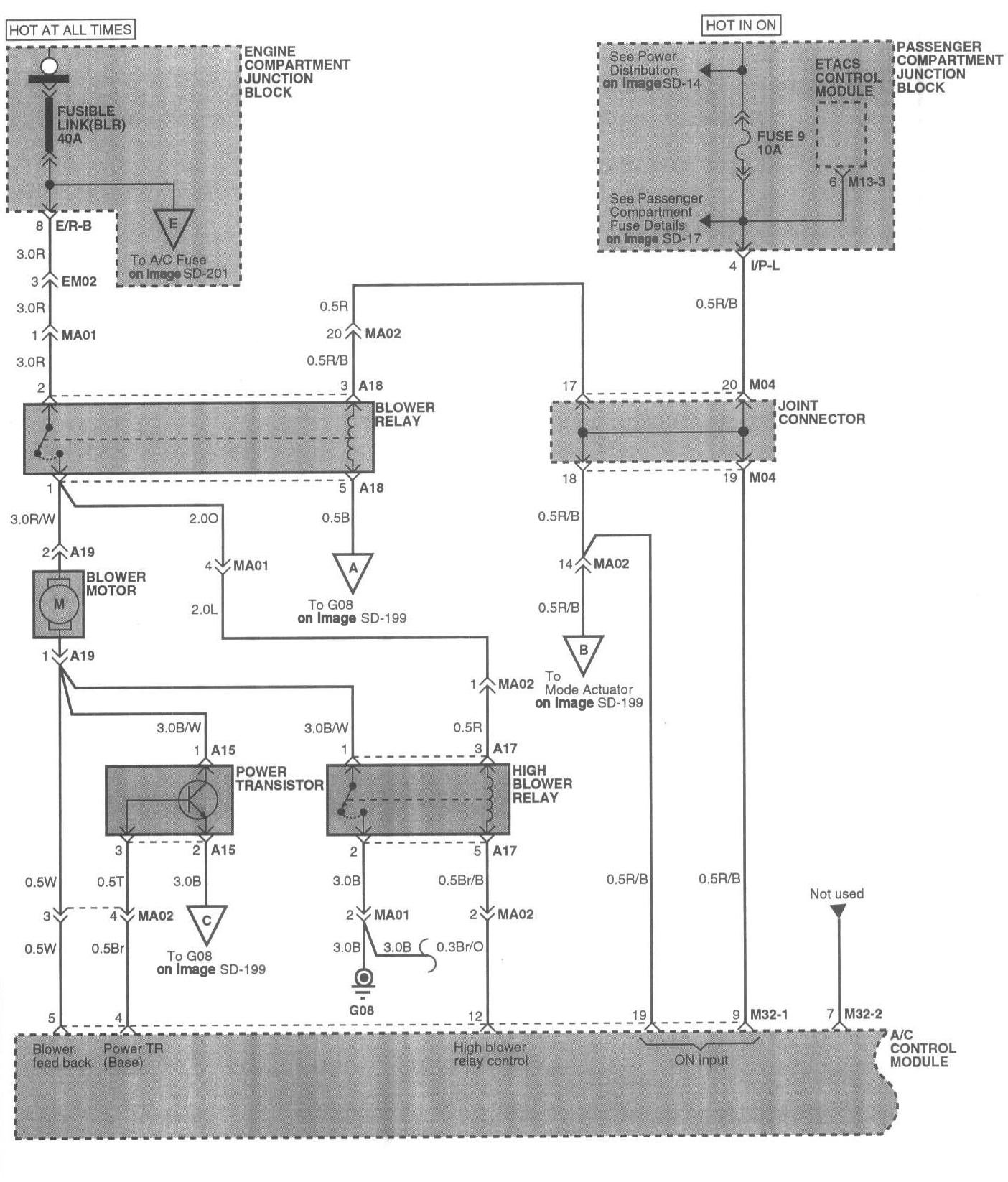

Image SD-198 Blower And A/C Controls (Full Auto) (1):

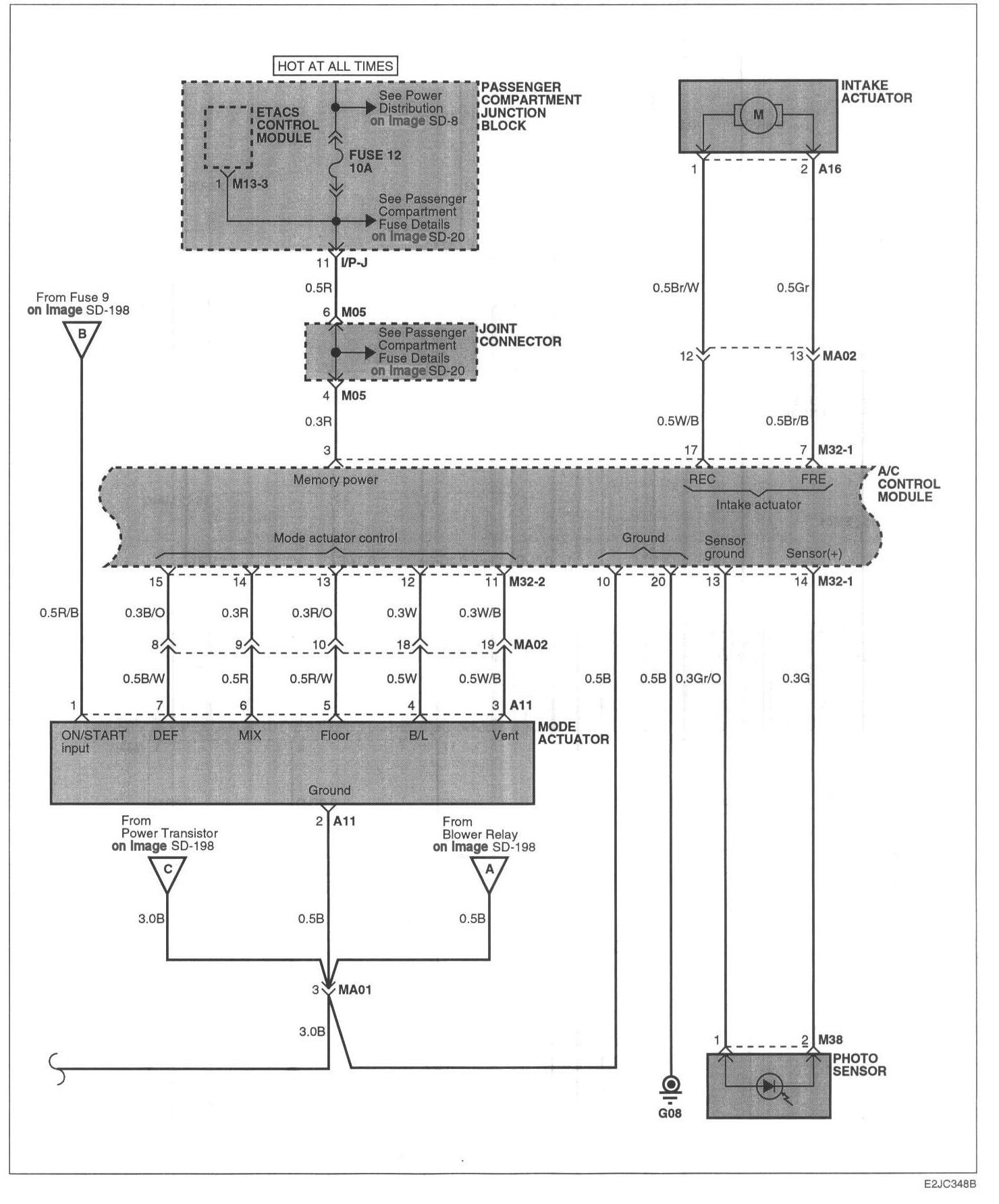

Image SD-199 Blower And A/C Controls (Full Auto) (2):

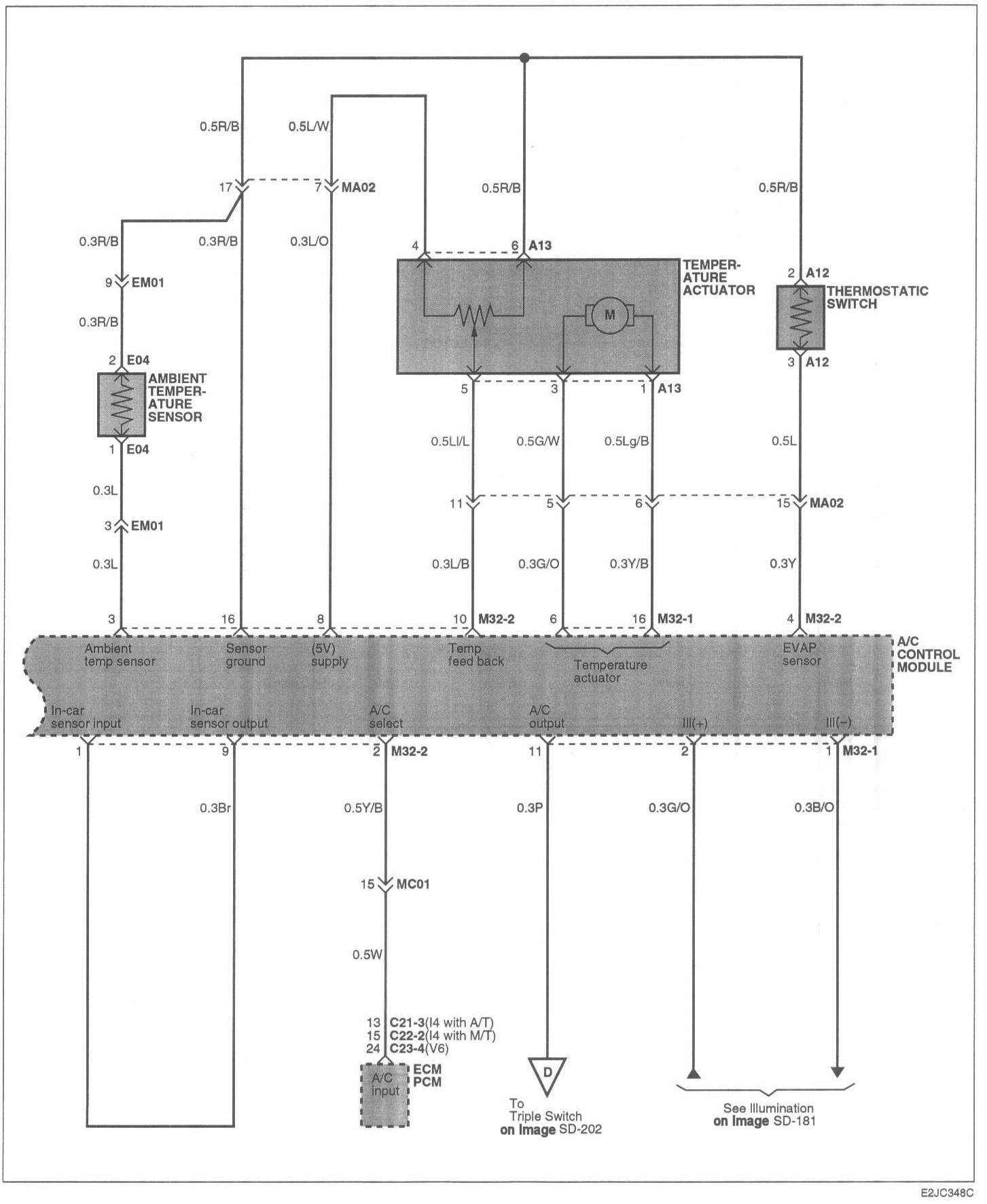

Image SD-200 Blower And A/C Controls (Full Auto) (3):

Image SD-201 Blower And A/C Controls (Full Auto) (4):

Image SD-202 Blower And A/C Controls (Full Auto) (5):
