Seats: Service and Repair

FRONT SEAT

Front Seat:

REMOVAL AND INSTALLATION

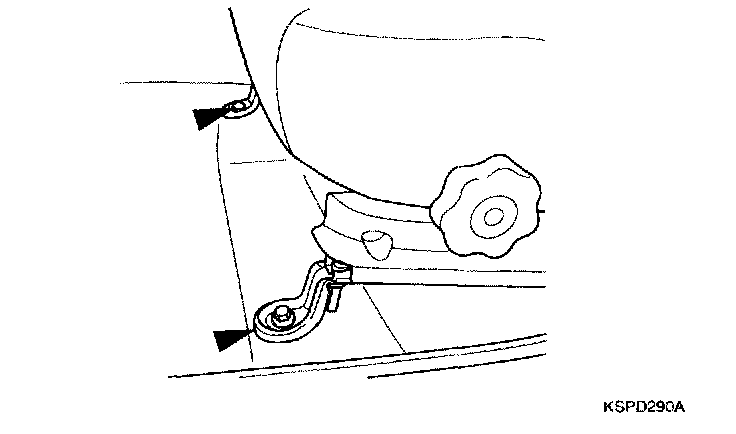

1. Loosen 4 mounting bolts on the front seat.

TORQUE: 35 - 55 Nm (350 - 550 kg.cm, 25 - 40 lb-ft)




2. Disconnect the airbag connector and remove the front seat.
3. Installation is the reverse of removal.

REAR SEAT

Rear Seat:

REMOVAL AND INSTALLATION




1. Loosen the rear seat cushion mounting bolts and remove the rear seat cushion.







2. Loosen the rear seat mounting bolts and then remove the seat back (fixed type).
Recline the rear split back forward and then loosen the mounting bracket.
Remove the seat back (Separated type).




3. Installation is the reverse of removal. When installing the rear seat back, tighten the mounting bracket after inserting the hook on the bracket.
