Power Locks - Service Manual Correction

Group
90 - ELECTRICAL

Number
03-90-005

Date
02-2003

Model
Elantra 2003

Subject
2003 ELANTRA POWER DOOR LOCK
ACTUATOR CIRCUIT ETM / SHOP MANUAL
CORRECTION

DESCRIPTION:

Included are revised pages for the 2003 MY ELANTRA Electrical Troubleshooting

Manual (ETM) and Shop Manual that have been corrected for the following reasons:

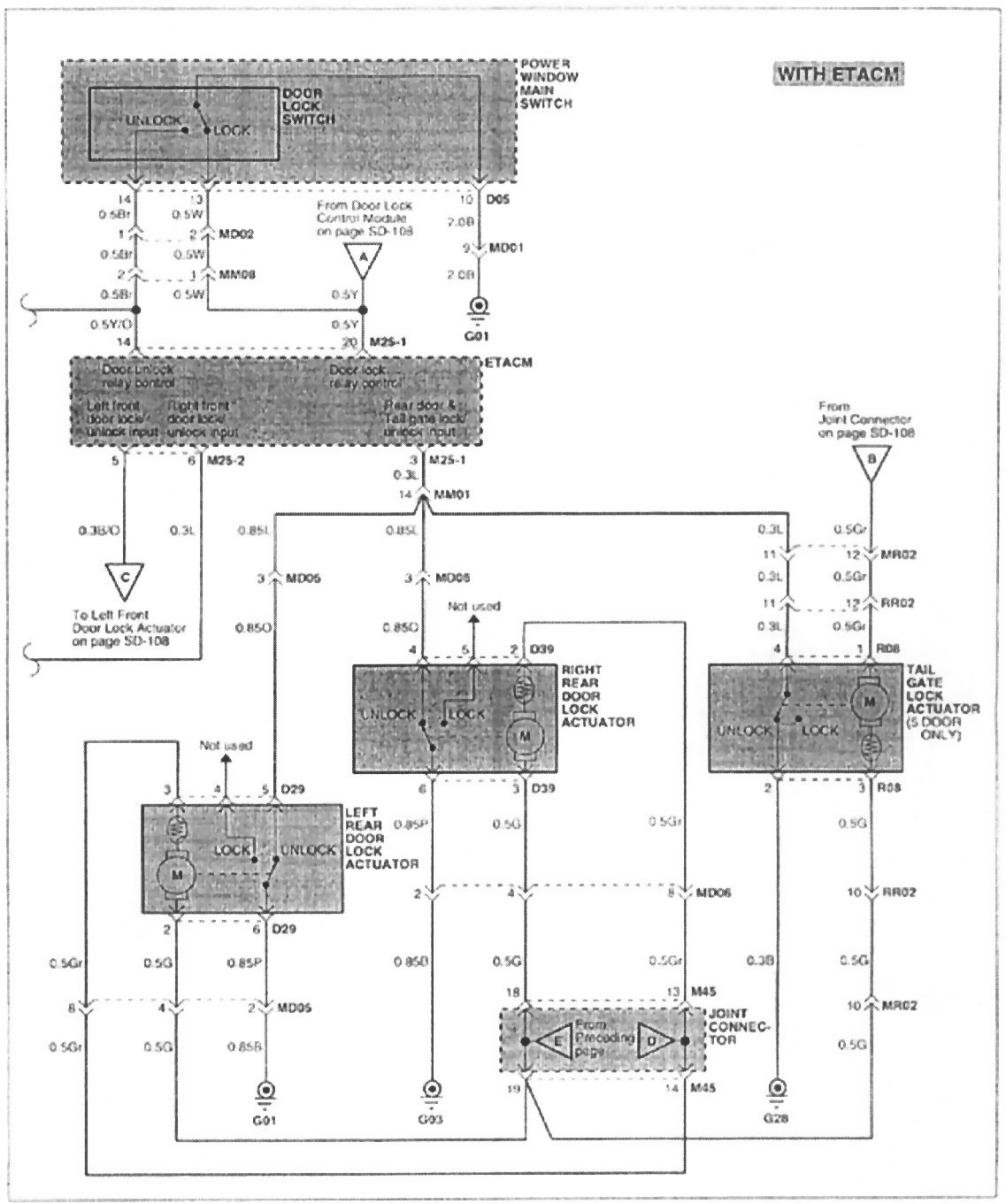

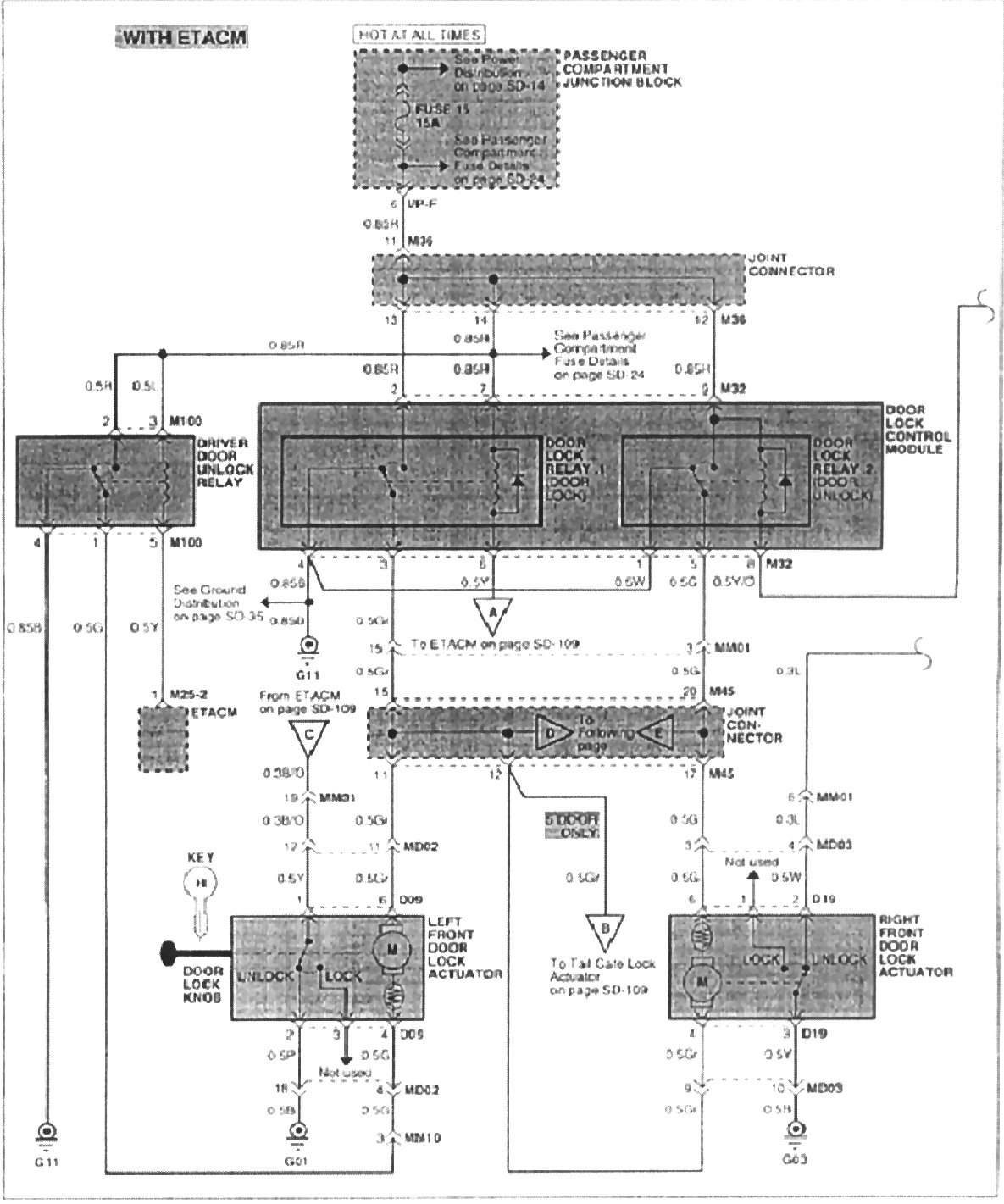

^ The 2003 ELANTRA ETM power door lock actuator schematic is not correct.

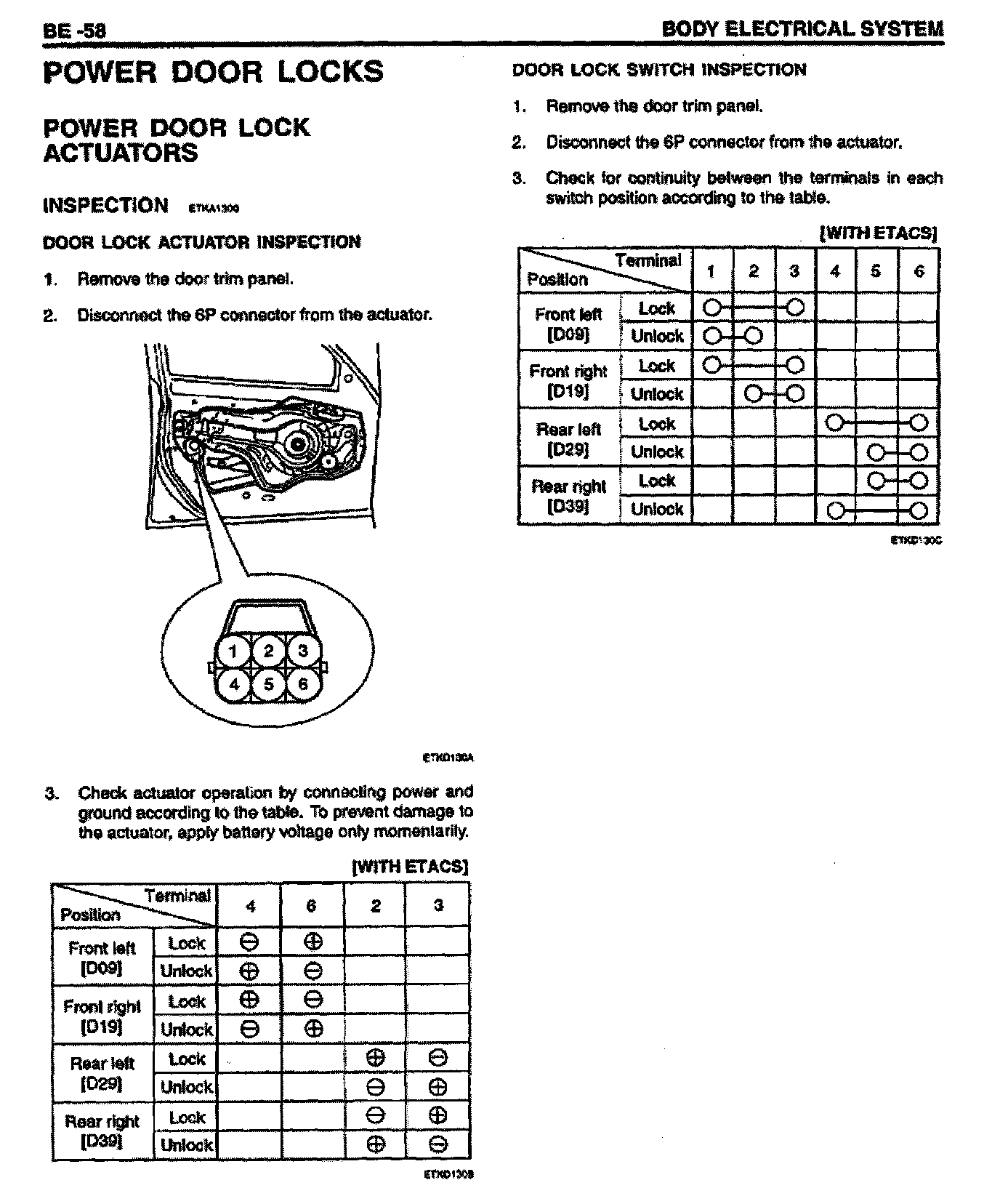

^ The power door lock actuator service information on page BE-53 of the ELANTRA Shop Manual does not include diagnostic information for the door lock switch circuit.














Please record this TSB number at the bottom of the appropriate ETM and Shop Manual pages for future reference.
